主要尺寸和性能数据
H |
70 mm |
height system |
B |
100 mm |
width carriage |
L |
173.6 mm |
overall length carriage |
C |
104,000 N |
dynamic load rating 1 |
C0 |
213,000 N |
static load rating 1 |

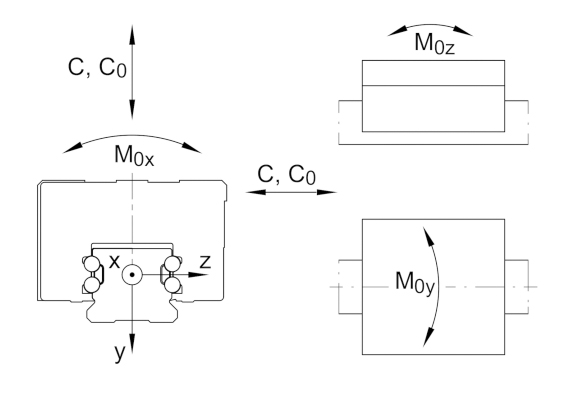

M0x |
5,600 Nm |
static moment rating about X axis |
M0y |
2,730 Nm |
static moment rating about Y axis |
M0z |
2,730 Nm |
static moment rating about Z axis |
≈m |
4.35 kg |
重量 |
主要尺寸和性能数据

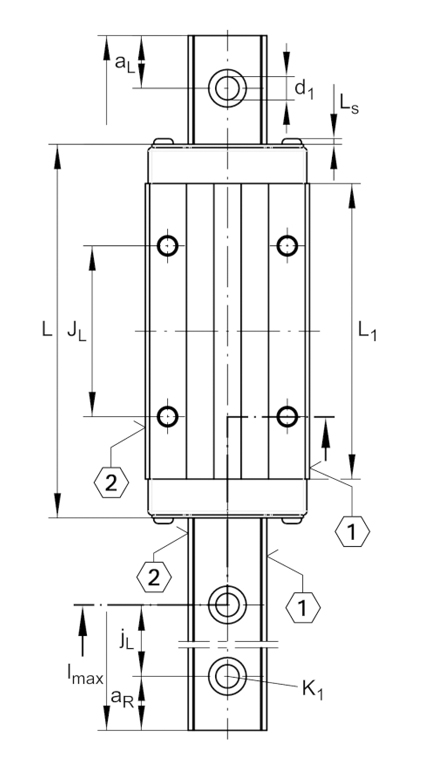

安装尺寸
A1 |
23.5 mm |
|
JB |
75 mm |
|
b |
53 mm |
width rail |
A2 |
12.5 mm |
|
L1 |
170 mm |
|
LS |
2.2 mm |
|
JL |
95 mm |
|
H1 |
13.5 mm |
|
H5 |
11.25 mm |
|
T5 |
15 mm |
|
G2 |
M12 |
fixing screws above (DIN ISO 4762-12.9) |
G2 MA |
140 Nm |
maximum tightening torque 2 |

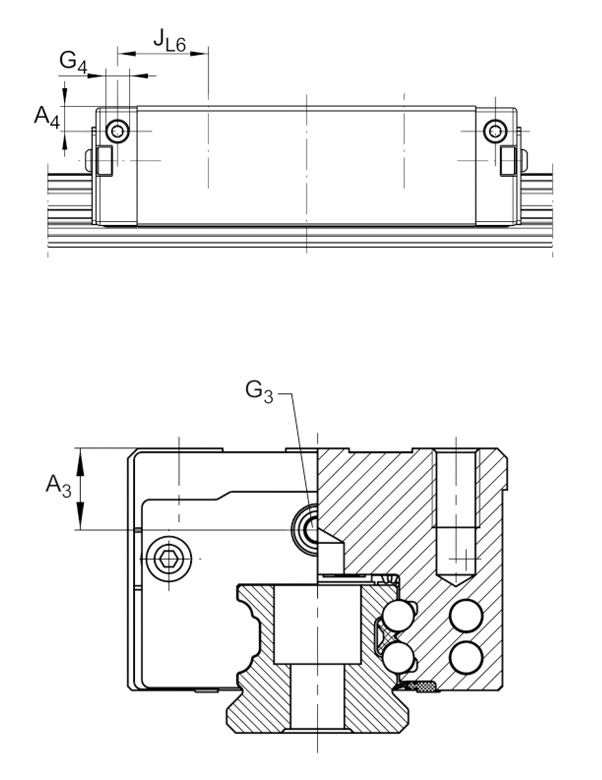

A3 |
15 mm |
position lubrication connector |
G3 |
M6 |
lubrication connector |
t G3 |
7 mm |
maximum permissible screw depth for lubrication connectors |
A4 |
15 mm |
position lubrication connector |
G4 |
M6 mm |
lubrication connector |
t G4 |
7 mm |
maximum permissible screw depth for lubrication connectors |
JL6 |
49.5 mm |
position lubrication connector |
