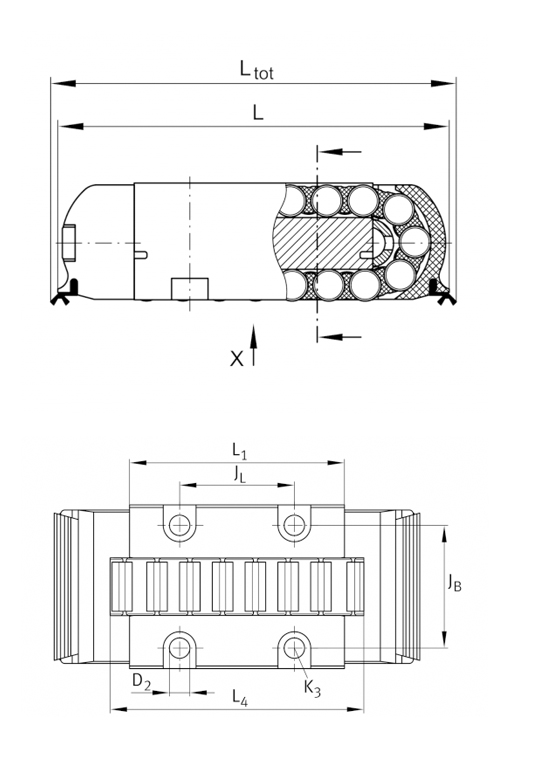

主要尺寸和性能数据
Ltot |
109 mm |
total length |
|
L |
105.5 mm |
||
B |
27 mm |
Width |
|
H |
19 mm |
Height |
|
C |
68,000 N |
Basic dynamic load rating |
|
C0 |
61,000 N |
Basic static load rating |
|
≈m |
0.29 kg |
重量 |

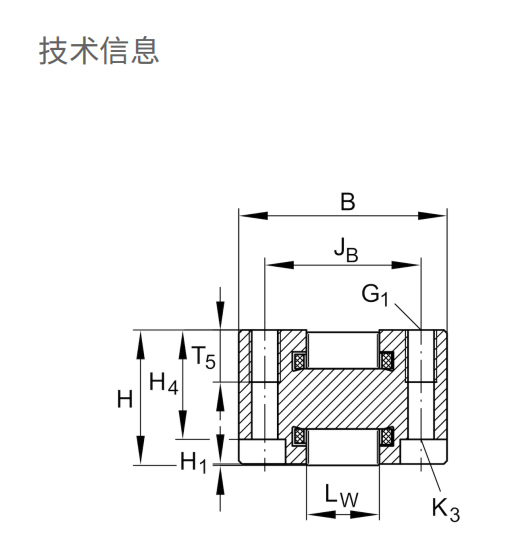

安装尺寸
L1 |
79 mm |
Mounting dimension |
JB |
20.6 mm |
Mounting dimension |
JL |
50 mm |
Mounting dimension |
H1 |
0.2 mm |
|
L4 |
85 mm |
minimum support length 1 |
LW |
10 mm |
|
H4 |
15.2 mm |
|
T5 |
6.2 mm |
|
G1 |
M4 |
fixing screws top (DIN ISO 4762-12.9) |
G1 MA |
5 Nm |
Tightening torrque fixing screws |
K3 |
M3 |
fixing screws below (DIN ISO 4762-12.9) |
K3 MA max |
1.8 Nm |
Tightening torque fixing screws 2 |
D2 |
3.5 mm |
|
|
6 mm |
