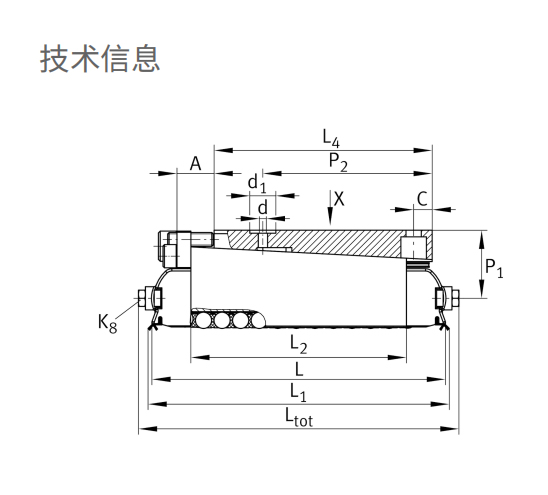

主要尺寸和性能数据
L |
98 mm |
Length total |
|
B |
40 mm |
Width |
|
H |
42 mm |
Height |
|
C |
76,000 N |
Basic dynamic load capacity |
|
C0 |
113,000 N |
Basic static load capacity |
|
≈m |
0.84 kg |
重量 |

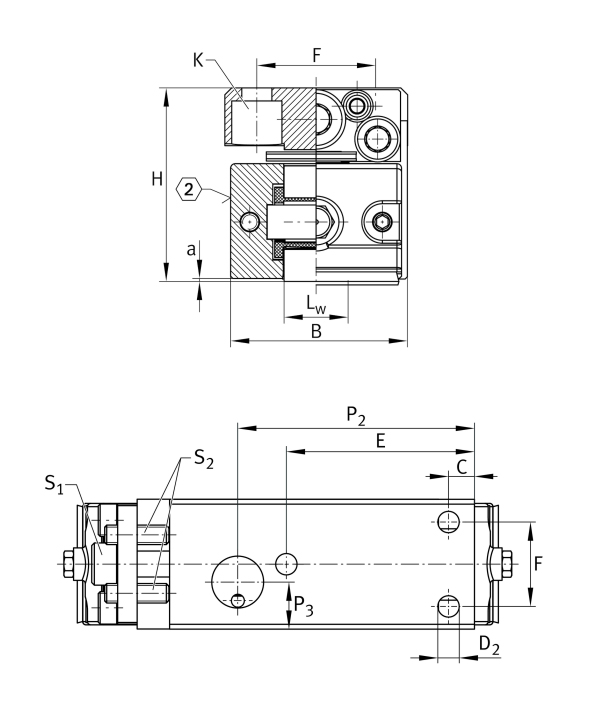

安装尺寸
L |
86 mm |
|
L1 |
92mm |
|
L3 |
52.4mm |
|
L4 |
54mm |
|
a |
0.3 mm |
|
LW |
14mm |
|
C |
8 mm |
|
E |
23mm |
Mounting dimension |
F |
26mm |
|

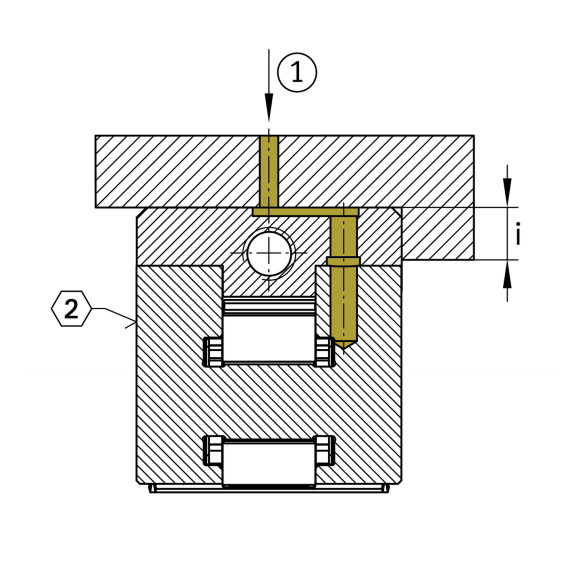

i |
6 mm |
Mounting dimension |
P1 |
29.5mm |
|
d1 |
16 mm |
|
P2 |
38mm |
|
P3 |
14.5 mm |
|
d |
3 mm |
|
K |
M6 |
Lubrication connector DIN3405-A |
S1 |
6 mm |
Hexagon socket adjusting screw 1 |
S2 |
3mm |
Hexagon socket counter forcing screw 1 |
K |
M6 |
Size thread k DIN |
K MA |
17 Nm |
Tightening torque fixing screws 2 |
D2 |
6.6 mm |
|
Amax |
10 mm |
Screw stroke A |
Delta hmax |
0.52 mm |
Adjustment maximum |
|
0.05 mm |
Adjustment screw revolution |
