主要尺寸和性能数据
d |
15 mm |
Bore diameter |
||
D |
60 mm |
外径 |
||
H |
40 mm |
Hight |
||
Ca |
24,900 N |
基本额定动载荷,轴向 |
||
C0a |
53,000 N |
基本额定静载荷，轴向 |
||
Cr |
13,000 N |
基本额定动载荷,径向 |
||
C0r |
17,500 N |
基本额定静载荷，径向 |
||
Cua |
7,500 N |
疲劳极限载荷,轴向 |
||
Cur |
2,650 N |
疲劳极限载荷,径向 |
||
nG Oil |
8,500 1/min |
Limiting speed for oil lubrication |
||
nG Grease |
2,200 1/min |
Limiting speed for grease lubrication |
||
MRL |
0.35 Nm |
Bearing friction torque |
||
≈m |
0.379 kg |
重量 |

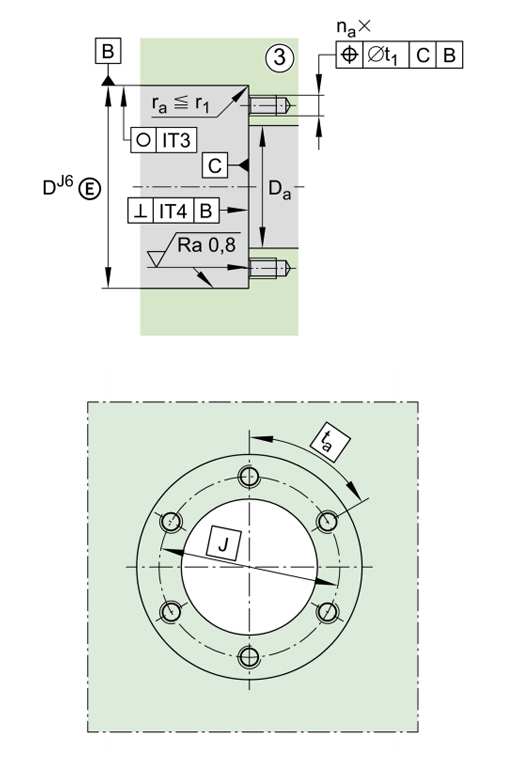

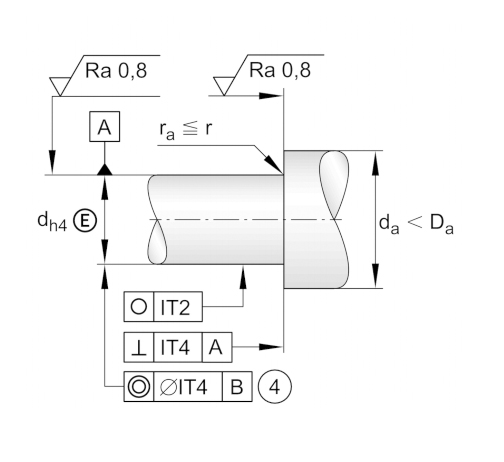

安装尺寸
Da max |
36 mm |
Maximum diameter of housing shoulder |
da min |
28 mm |
Minimum diameter shaft shoulder |
t1 |
0.1 mm |
Position bore in the housing |

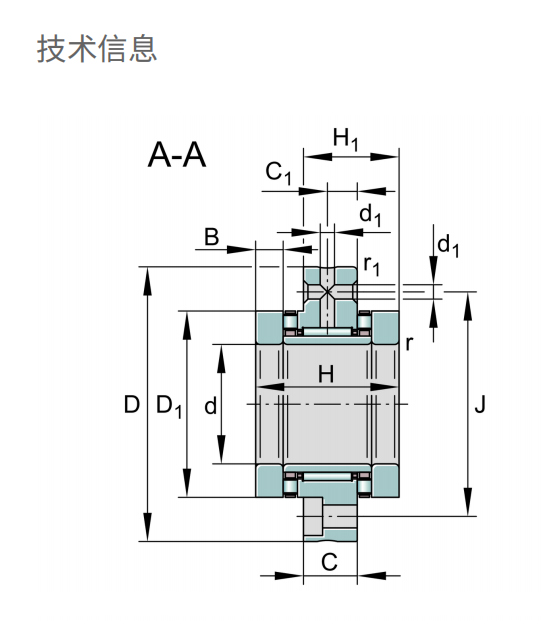

尺寸
H1 |
26 mm |
Height outer ring over wave washer |
||
C |
14 mm |
Width, outer ring |
||
C1 |
8 mm |
Distance to lubrication hole |
||
D1 |
35 mm |
Rip diameter shaft washer |
||
B |
7.5 mm |
Width, inner ring |
||
rmin |
0.3 mm |
最小倒角尺寸 |
||
r1 min |
0.6 mm |
Minimum chamfer dimension |
||
d1 |
3.2 mm |
Diameter lubrication hole |
||

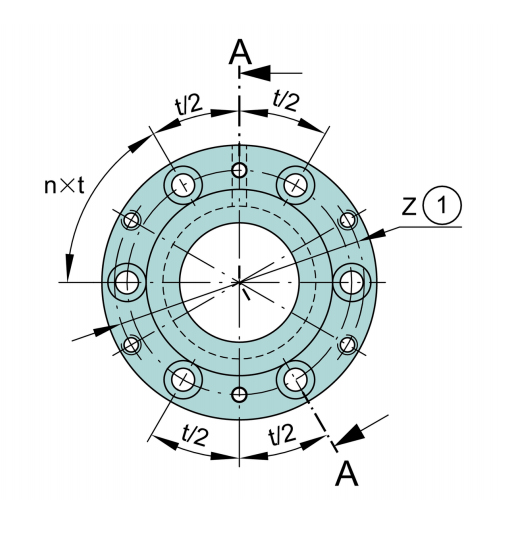

J |
46 mm |
Pitch circle diameter (holes) |
||
n |
6 |
Number of screwing holes |
||
n x t |
60 ° |
Split |
温度范围
Tmin |
-30 °C |
最低工作温度 |
||
Tmax |
120 °C |
最高工作温度 |
附加信息
caL |
1,400 N/µm |
Rigidity axial |
||
ckL |
110 Nm/mrad |
Tilting stiffness |
||
Mm |
0.24 kg*cm2 |
Mass moment of inertia |
||
|
1 µm |
Axial runout |
||
radial |
ZMA15/33 |
Recommended INA precision locknut for radial locking (not included) |
||
axial |
AM15 |
Recommended INA precision locknut for axial locking (not included) |
||
MA |
10 Nm |
Tightening torque nut |
||
|
6,506 N |
Required locknut force |
||
|
M6 |
Screw size |
||
na |
6 |
Number of screws |
||
na x ta |
60 ° |
Division (screwing holes) |
