主要尺寸和性能数据
H |
80 mm |
height system |
B |
100 mm |
width carriage |
L |
172.7 mm |
overall length carriage 1 |
C |
136,000N |
dynamic load rating 1 |
C0 |
320,000 N |
static load rating 1 |

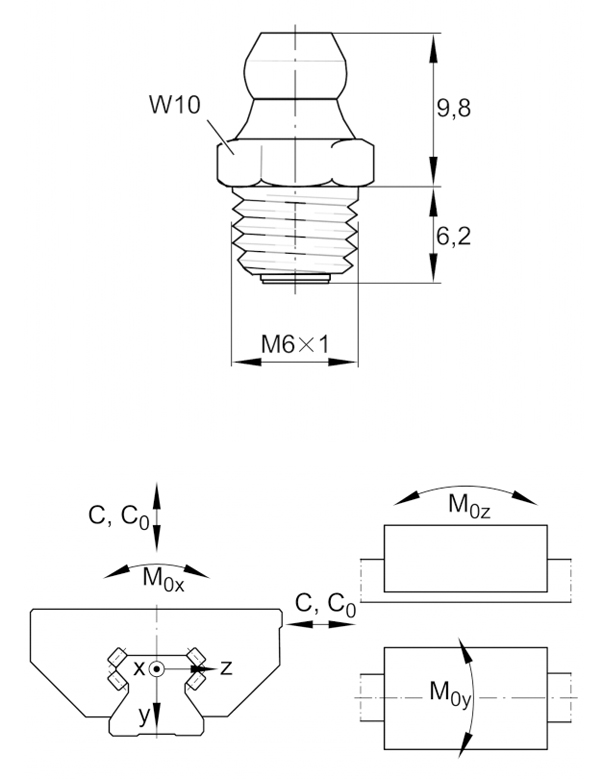

M0x |
3,287 Nm |
static moment rating about X axis |
M0y |
7,404 Nm |
static moment rating about Y axis |
M0z |
6,667 Nm |
static moment rating about Z axis |
≈m |
4.94kg |
重量 |

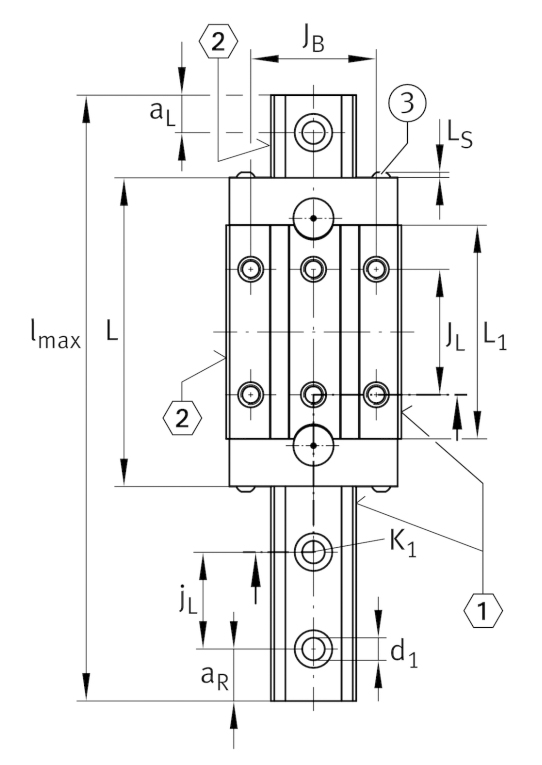

安装尺寸
A1 |
23.5mm |
|
JB |
75mm |
|
b |
53 mm |
width rail |
A2 |
12.5 mm |
|
L1 |
127mm |
|
LS |
2.75mm |
|
JL |
75mm |
|
H1 |
11mm |
|
H4 |
61.4mm |
|
H5 |
16mm |
|
T5 |
15mm |
|
G2 |
M12 |
fixing screws above (DIN ISO 4762-12.9) |
G2 MA |
140 Nm |
maximum tightening torque 3 |

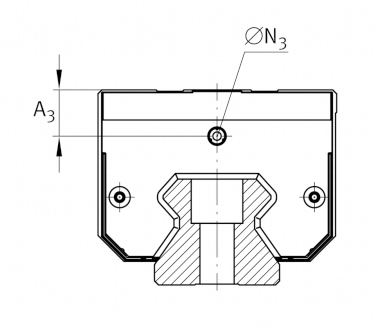

A3 |
8.1 mm |
position lubrication connector |
N3 |
M6 |
lubrication connector |
t N3 |
6 mm |
maximum permissible screw depth for lubrication connectors |

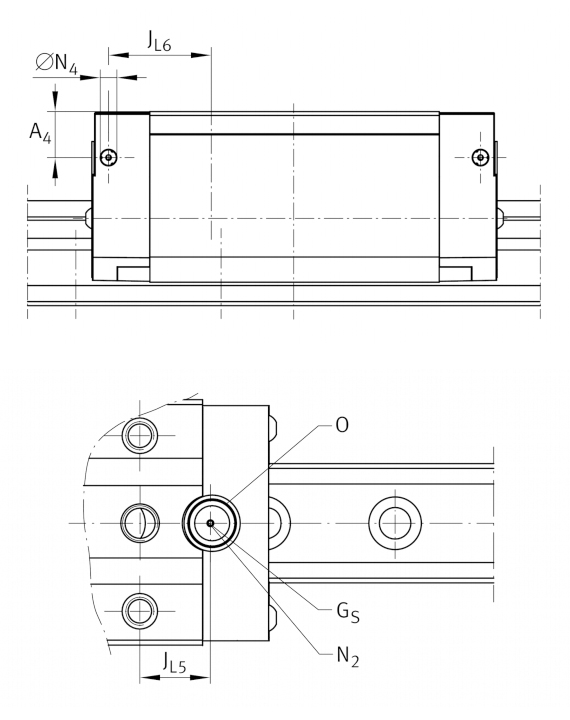

A4 |
18.1 mm |
position lubrication connector |
N4 |
6 |
lubrication connector |
t N4 |
6mm |
maximum permissible screw depth for lubrication connectors |
JL6 |
42.9mm |
position lubrication connector |
N2 |
6 mm |
max. diameter of lubrication hole in adjacent construction 4construction 4 |
JL5 |
31.6mm |
position lubrication connector 5 |
GS |
M4x4 |
|
O |
10x1,5 mm |
O-Ring DIN 3771 |
