主要尺寸和性能数据
h |
22.3 mm |
Height |
|
b |
23 mm |
Width |
|
Tol b |
-0.005 mm |
Upper tolerance |
|
Tol b |
-0.035 mm |
Lower tolerance |
|
≈m |
2.9 kg/m |
重量 |

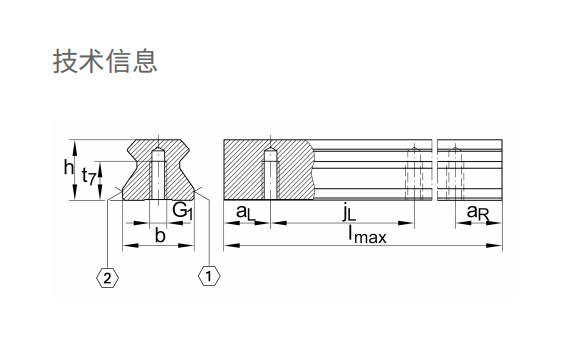

安装尺寸
K1 |
M6 |
Fixing screws (DIN ISO 4762-12.9) |
K1 MA |
17 Nm |
Tightening torque 1 |
尺寸
lmax |
3,930 mm |
Max length single piece guideway 2 |
aL min |
20 mm |
Distance 3 |
aL max |
23 mm |
Distance 3 |
aR min |
20 mm |
Distance 3 |
aR max |
23 mm |
Distance 3 |
jL |
30 mm |
Increment |
t7 |
12.5 mm |
Thread length |
附加信息
|
RWU25-E-... |
usable carriage(s) |
|
RUE25-E-... |
Usable linear systems |
