主要尺寸和性能数据
h |
30 mm |
Height |
|
b |
34 mm |
Width |
|
Tol b |
-0.005 mm |
Upper tolerance |
|
Tol b |
-0.035 mm |
Lower tolerance |
|
≈m |
5.9 kg/m |
重量 |
安装尺寸
K1 |
M8 |
Fixing screws (DIN ISO 4762-12.9) |
K1 MA |
41 Nm |
Tightening torque 1 |

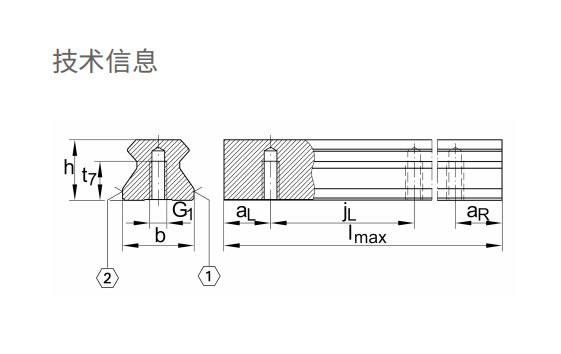

尺寸
lmax |
6,000 mm |
Max length single piece guideway 2 |
aL min |
20 mm |
Distance 3 |
lmax |
6,000 mm |
Max length single piece guideway 2 |
aL min |
20 mm |
Distance 3 |
aL max |
31 mm |
Distance 3 |
aR min |
20 mm |
Distance 3 |
aR max |
31 mm |
Distance 3 |
jL |
40 mm |
Increment |
t7 |
15 mm |
Thread length |
附加信息
|
RWU35-E-...; RWU35-F-... |
usable carriage(s) |
|
RUE35-E-...; RUE35-F-... |
Usable linear systems |
