主要尺寸和性能数据
h |
38 mm |
Height |
|
b |
45 mm |
Width |
|
Tol b |
-0.005 mm |
Upper tolerance |
|
Tol b |
-0.035 mm |
Lower tolerance |
|
≈m |
9.4 kg/m |
重量 |

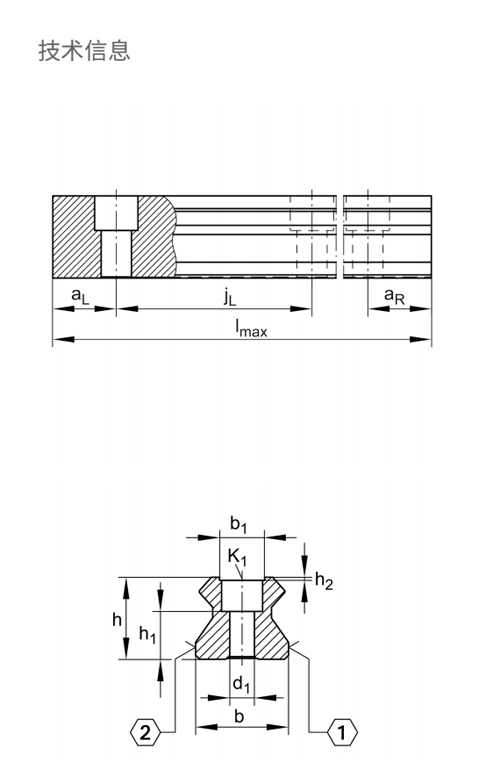

安装尺寸
K1 |
M12 |
Fixing screws (DIN ISO 4762-12.9) |
d1 |
13.4 mm |
bore diameter |
K1 MA |
140 Nm |
Tightening torque 1 |
尺寸
lmax |
5,985 mm |
Max length single piece guideway 2 |
aL min |
20 mm |
Distance 3 |
aL max |
41 mm |
Distance 3 |
aR min |
20 mm |
Distance 3 |
aR max |
41 mm |
Distance 3 |
jL |
52.5 mm |
Increment |
h1 |
19.5 mm |
Length |
Tol h1 |
0.5 mm |
Upper tolerance |
Tol h1 |
-0.5 mm |
Lower tolerance |

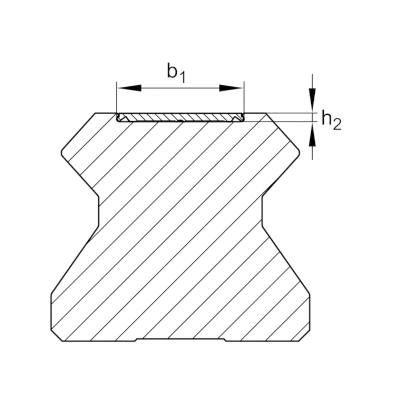

h2 |
1.1 mm |
Depth |
b1 |
22 mm |
Width |

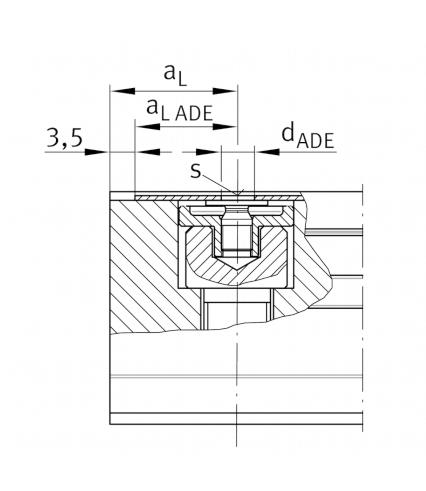

dADB |
3.9 mm |
Bore diameter |
s |
0.6 mm |
Thickness |
附加信息
|
RWU45-E-...; RWU45-F-... |
usable carriage(s) |
|
RUE45-E-...; RUE45-F-... |
Usable linear systems |
