主要尺寸和性能数据
h |
45 mm |
Height |
|
b |
53 mm |
Width |
|
Tol b |
-0.005 mm |
Upper tolerance |
|
Tol b |
-0.035 mm |
Lower tolerance |
|
≈m |
13.1 kg/m |
重量 |

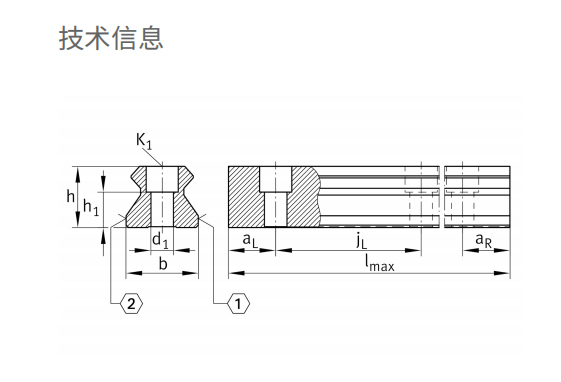

安装尺寸
K1 |
M14 |
Fixing screws (DIN ISO 4762-12.9) |
d1 |
15.4 mm |
bore diameter |
K1 MA |
220 Nm |
Tightening torque 1 |
尺寸
lmax |
5,880 mm |
Max length single piece guideway 2 |
aL min |
20 mm |
Distance 3 |
aL max |
47 mm |
Distance 3 |
aR min |
20 mm |
Distance 3 |
aR max |
47 mm |
Distance 3 |
jL |
60 mm |
Increment |
h1 |
22.5 mm |
Length |
Tol h1 |
0.5 mm |
Upper tolerance |
Tol h1 |
-0.5 mm |
Lower tolerance |
附加信息
|
RWU55-E-...; RWU55-F-... |
usable carriage(s) |
|
RUE55-E-...; RUE55-F-... |
Usable linear systems |
