主要尺寸和性能数据
h |
29.7 mm |
Height |
|
b |
34 mm |
Width |
|
Tol b |
-0.005 mm |
Upper tolerance |
|
Tol b |
-0.035 mm |
Lower tolerance |
|
≈m |
6.5 kg/m |
重量 |
安装尺寸
M6 |
M8 |
M6 |
17 Nm |
41 Nm |
17 Nm |
6.8 mm |
9 mm |
6.8 mm |

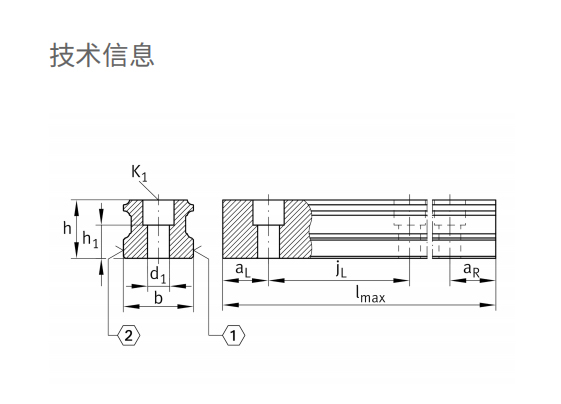

尺寸
lmax |
6,000 mm |
Max length single piece guideway 2 |
aL min |
20 mm |
Distance 3 |
aL max |
71 mm |
Distance 3 |
aR min |
20 mm |
Distance 3 |
aR max |
71 mm |
Distance 3 |
jL |
80 mm |
Increment |
h1 |
17.2mm |
Length |
Tol h1 |
0.5 mm |
Upper tolerance |
Tol h1 |
-0.5 mm |
Lower tolerance |
附加信息
|
KWSE35... |
usable carriage(s) |
|
KUSE35... |
Usable linear systems |
