主要尺寸和性能数据
| d | 35 mm | Bore diameter |
| D | 110 mm | 外径 |
| H | 66 mm | Hight |
| Ca | 105,000 N | 基本额定动载荷, 轴向 |
| C0a | 265,000 N | 基本额定静载荷，轴向 |
| Cr | 27,500 N | 基本额定动载荷, 径向 |
| C0r | 53,000 N | 基本额定静载荷，径向 |
| Cua | 22,900 N | 疲劳极限载荷, 轴向 |
| Cur | 7,600 N | 疲劳极限载荷, 径向 |
| nG Oil | 4,000 1/min | Limiting speed for oil lubrication |
| nG Grease | 1,250 1/min | Limiting speed for grease lubrication |
| MRL | 2.3 Nm | Bearing friction torque |
| ≈m | 1.927 kg | 重量 |

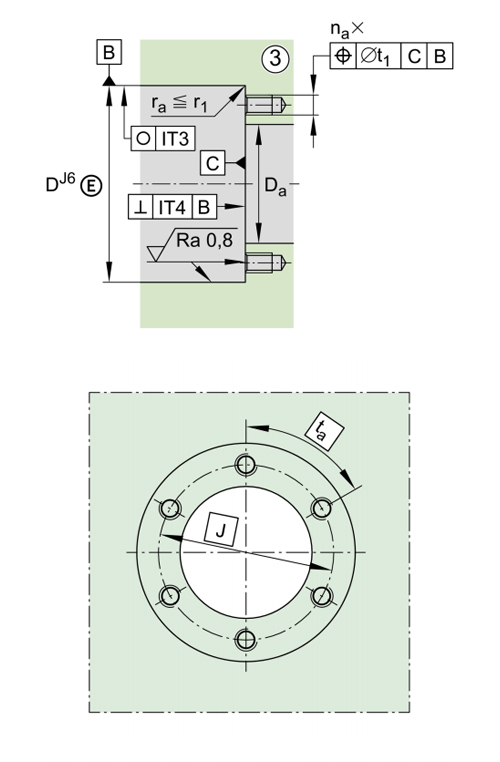

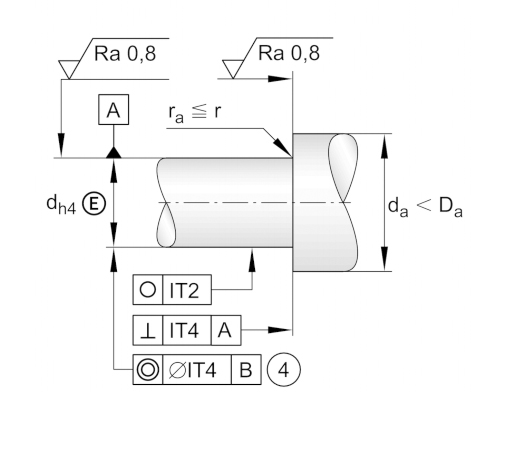

安装尺寸
| Da max | 74 mm | Maximum diameter of housing shoulder |
| da min | 60 mm | Minimum diameter shaft shoulder |
| t1 | 0.2 mm | Position bore in the housing |

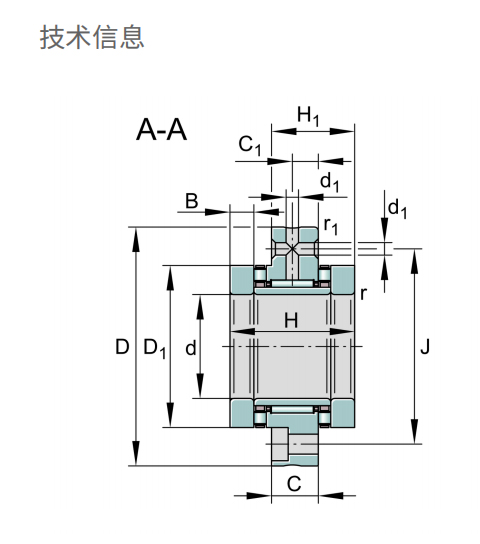

尺寸
| H1 | 41 mm | Height outer ring over wave washer |
| C | 18 mm | Width, outer ring |
| C1 | 10 mm | Distance to lubrication hole |
| D1 | 73 mm | Rip diameter shaft washer |
| B | 14 mm | Width, inner ring |
| rmin | 0.3 mm | 最小倒角尺寸 |
| r1 min | 0.6 mm | Minimum chamfer dimension |
| d1 | 3.2 mm | Diameter lubrication hole |

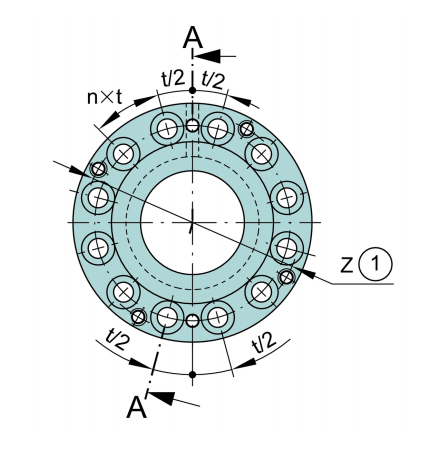

| J | 88 mm | Pitch circle diameter (holes) |
| n | 12 | Number of screwing holes |
| n x t | 30 ° | Split |
温度范围
| Tmin | -30 °C | 最低工作温度 |
| Tmax | 120 °C | 最高工作温度 |
附加信息
| caL | 3,500 N/µm | Rigidity axial |
| ckL | 1,300 Nm/mrad | Tilting stiffness |
| Mm | 8.47 kg*cm2 | Mass moment of inertia |
| 1 µm | Axial runout | |
| radial | ZMA35/70 | Recommended INA precision locknut for radial locking (not included) |
| axial | AM35 | Recommended INA precision locknut for axial locking (not included) |
| MA | 100 Nm | Tightening torque nut |
| 27,480 N | Required locknut force | |
| M8 | Screw size | |
| na | 12 | Number of screws |
| na x ta | 30 ° | Division (screwing holes) |
