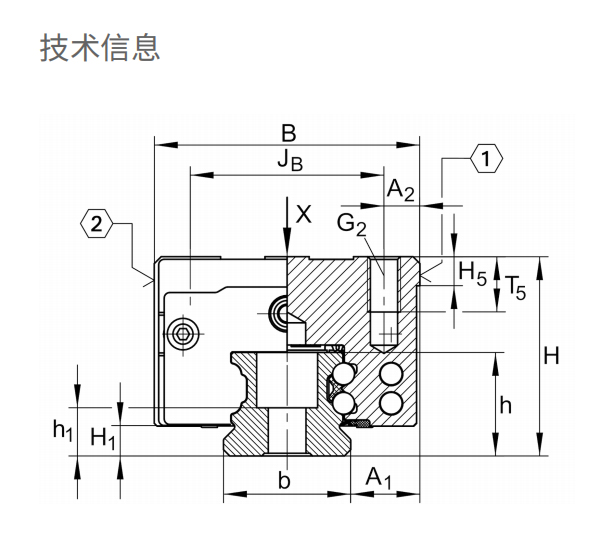

主要尺寸和性能数据
H |
31 mm |
height system |
B |
48 mm |
width carriage |
L |
83.3 mm |
overall length carriage |
C |
17,900 N |
dynamic load rating 1 |
C0 |
37,000 N |
static load rating 1 |
M0x |
510 Nm |
static moment rating about X axis |
M0y |
395 Nm |
static moment rating about Y axis |
M0z |
395 Nm |
static moment rating about Z axis |
≈m |
0.45 kg |
重量 |
主要尺寸和性能数据

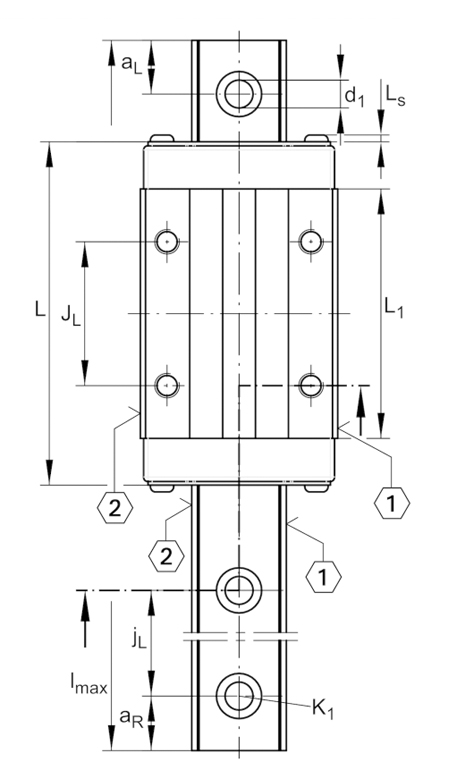

安装尺寸
A1 |
12.5 mm |
|
JB |
35 mm |
|
b |
23 mm |
width rail |
A2 |
6.5 mm |
|
L1 |
60.7 mm |
|
LS |
1.65 mm |
|
JL |
35 mm |
|
H1 |
5.1 mm |
|
H5 |
5.25 mm |
|
T5 |
7.5 mm |
|
G2 |
M6 |
fixing screws above (DIN ISO 4762-12.9) |
G2 MA |
17 Nm |
maximum tightening torque 2 |

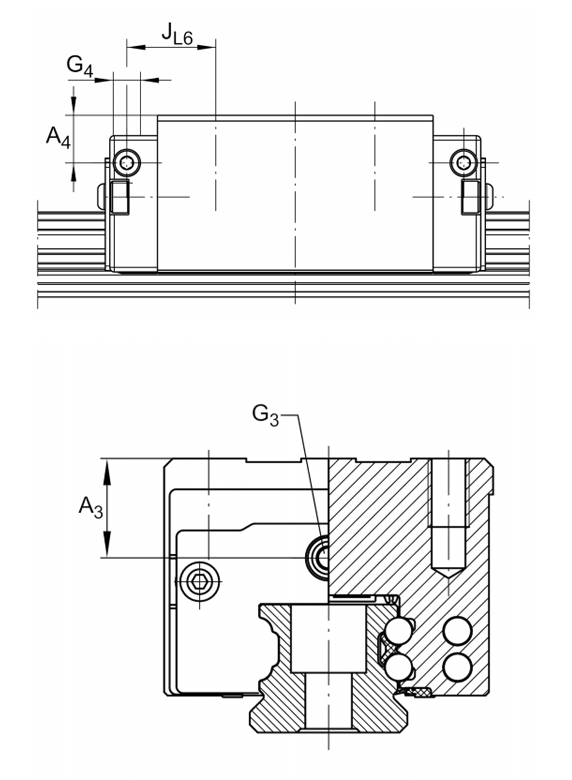

A3 |
6 mm |
position lubrication connector |
G3 |
M6 |
lubrication connector |
t G3 |
7 mm |
maximum permissible screw depth for lubrication connectors |
A4 |
4 mm |
position lubrication connector |
G4 |
M3 mm |
lubrication connector |
t G4 |
6 mm |
maximum permissible screw depth for lubrication connectors |
JL6 |
17.9 mm |
position lubrication connector |
