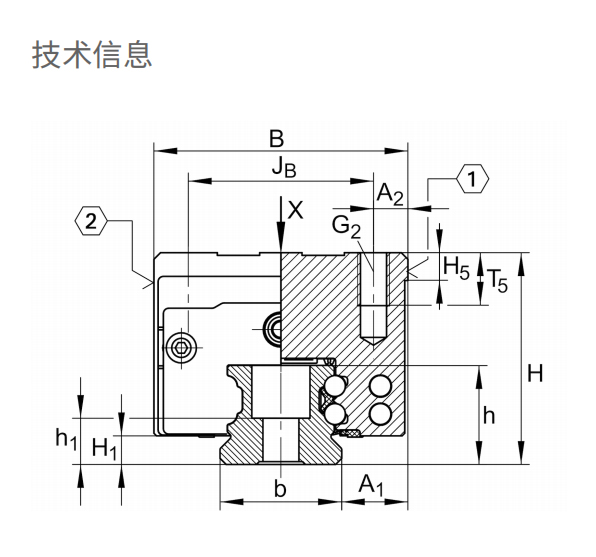

主要尺寸和性能数据
H |
38 mm |
height system |
B |
60 mm |
width carriage |
L |
99 mm |
overall length carriage |
C |
27,500 N |
dynamic load rating 1 |
C0 |
55,000 N |
static load rating 1 |
M0x |
970 Nm |
static moment rating about X axis |
M0y |
700 Nm |
static moment rating about Y axis |
M0z |
700 Nm |
static moment rating about Z axis |
≈m |
0.8 kg |
重量 |
主要尺寸和性能数据

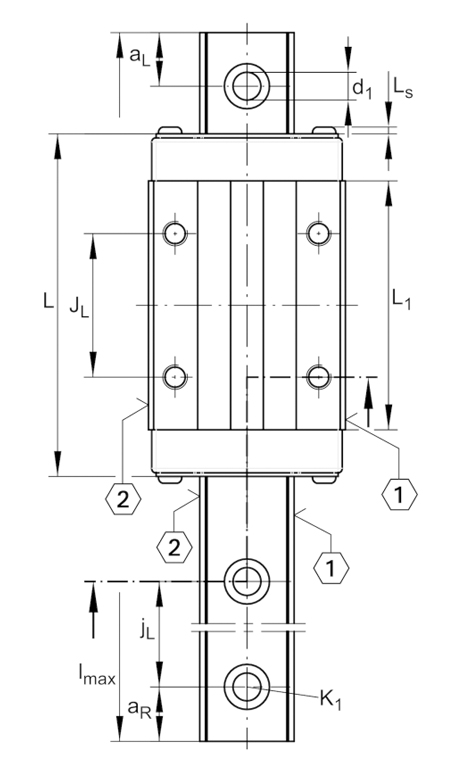

安装尺寸
A1 |
16 mm |
|
JB |
40 mm |
|
b |
28 mm |
width rail |
A2 |
10 mm |
|
L1 |
72 mm |
|
LS |
1.65 mm |
|
JL |
40 mm |
|
H1 |
5.9 mm |
|
H5 |
6.25 mm |
|
T5 |
11 mm |
|
G2 |
M8 |
fixing screws above (DIN ISO 4762-12.9) |
G2 MA |
41 Nm |
maximum tightening torque 2 |

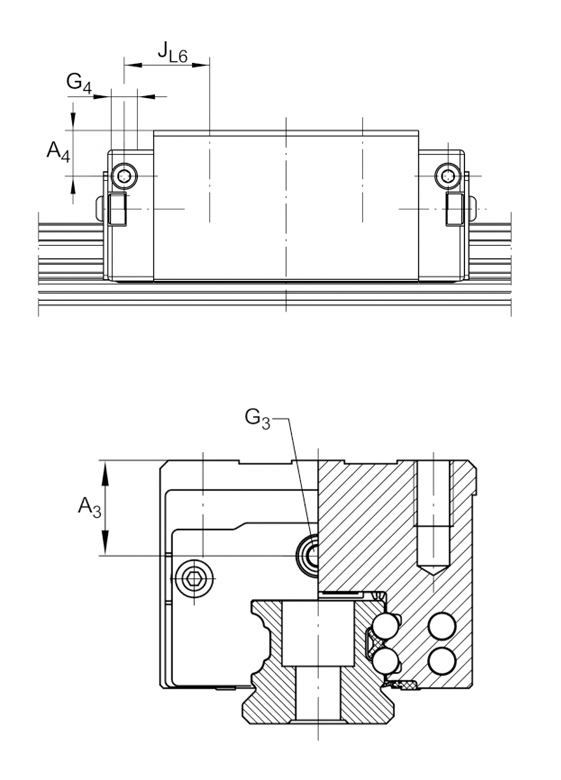

A3 |
7.5 mm |
position lubrication connector |
G3 |
M6 |
lubrication connector |
t G3 |
7 mm |
maximum permissible screw depth for lubrication connectors |
A4 |
4.95 mm |
position lubrication connector |
G4 |
M5 mm |
lubrication connector |
t G4 |
7 mm |
maximum permissible screw depth for lubrication connectors |
JL6 |
21.5 mm |
position lubrication connector |
