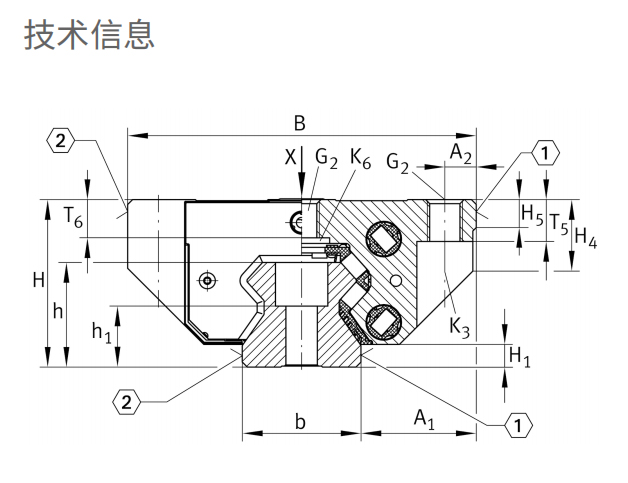

主要尺寸和性能数据
H |
90 mm |
height system |
B |
170 mm |
width carriage |
L |
195.5 mm |
overall length carriage 1 |
C |
200,000 N |
dynamic load rating 2 |
C0 |
440,000 N |
dynamic load rating 2 |

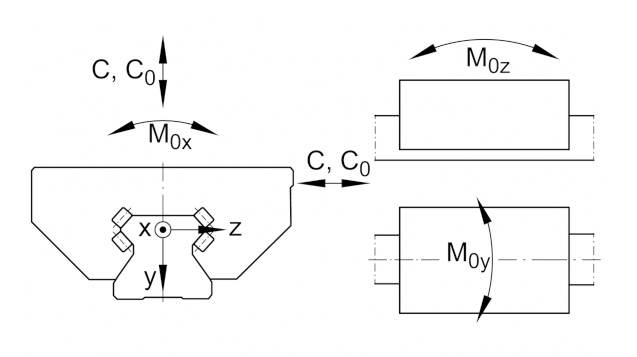

M0x |
5,450 Nm |
static moment rating about X axis |
M0y |
12,100 Nm |
static moment rating about Y axis |
M0Z |
10,900 Nm |
static moment rating about Z axis |
≈m |
9.32 kg |
重量 |
主要尺寸和性能数据
安装尺寸
A1 |
53.5 mm |
|
JB |
142 mm |
|
b |
63 mm |
width rail |
A2 |
14 mm |
|

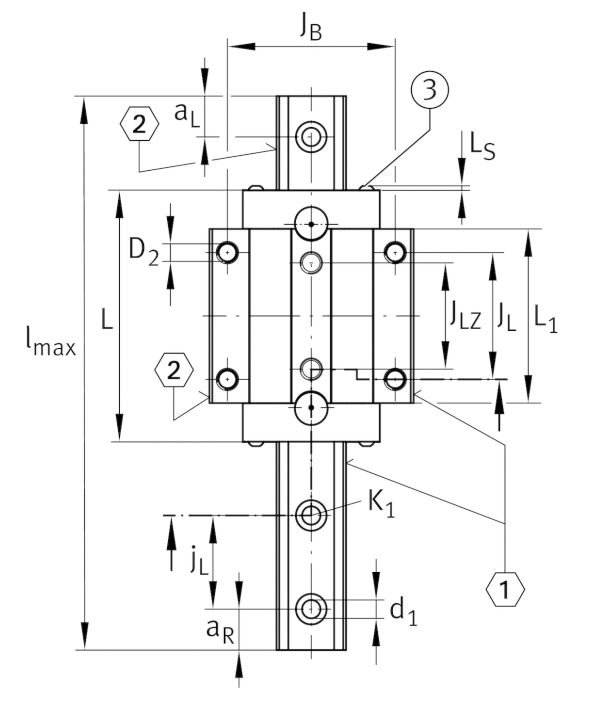

L1 |
141.2 mm |
|
LS |
2.75 mm |
|
JL |
110 mm |
|
JLZ |
82 mm |
|
H1 |
11.5 mm |
|
H4 |
39.2 mm |
|
H5 |
15 mm |
|
T5 |
23.3 mm |
|
T6 |
23.3 mm |
|
G2 |
M16 |
fixing screws below (DIN ISO 4762-12.9) |
G2 MA |
220 Nm |
maximum tightening torque 3 |
K3 |
M14 |
fixing screws below (DIN ISO 4762-12.9) |
K3 MA |
220 Nm |
maximum tightening torque 3 |
K6 |
M14 |
fixing screws below (DIN 7984-8.8) |
K6 MA |
130 Nm |
maximum tightening torque 3 |
D2 |
14.5 mm |
bore diameter |
A3 |
19.6 mm |

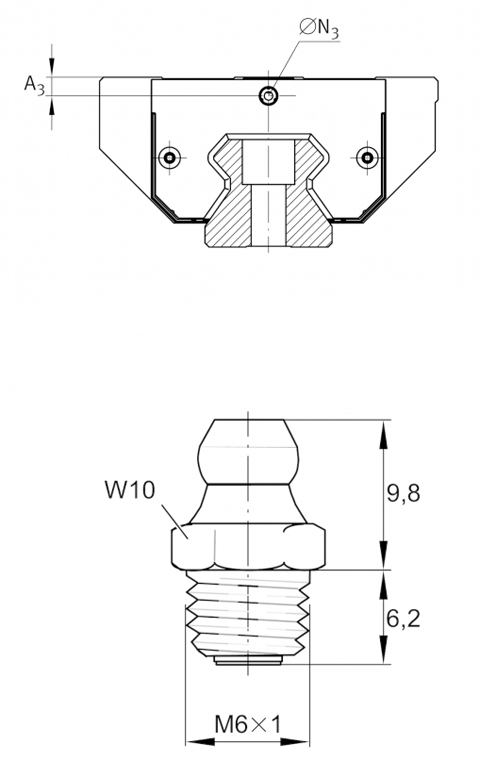

position lubrication connector |
N3 |
M6 |
lubrication connector |
t N3 |
6 mm |
maximum permissible screw depth for lubrication connectors |
A4 |
19.6 mm |
position lubrication connector |
N4 |
6 |
lubrication connector |
t N4 |
6 mm |
maximum permissible screw depth for lubrication connectors |

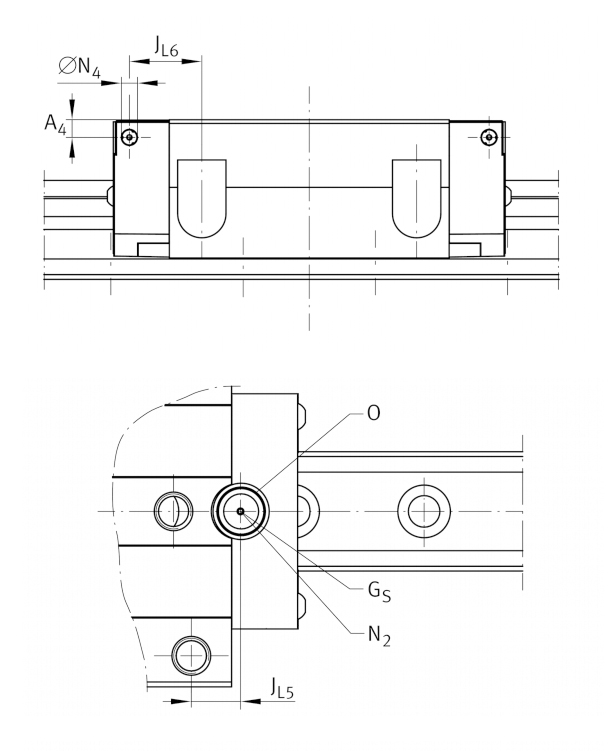

JL6 |
34.8 mm |
position lubrication connector |
N2 |
6 mm |
max. diameter of lubrication hole in adjacent construction 4 |
JL5 |
15.6 mm |
position lubrication connector 5 |
GS |
M4x4 |
|
O |
18x1,5 mm |
O-Ring DIN 3771 |
