主要尺寸和性能数据
H |
42 mm |
Height system |
B |
90 mm |
Width carriage |
L |
69 mm |
Overall length carriage |
C |
18,700 N |
Dynamic load rating 1 |
C0 |
31,500 N |
Static load rating 1 |
M0x |
554 Nm |
Static moment rating about X axis |
M0y |
248 Nm |
Static moment rating about Y axis |
M0z |
248 Nm |
Static moment rating about Z axis |
≈m |
0.75 kg |
重量 |

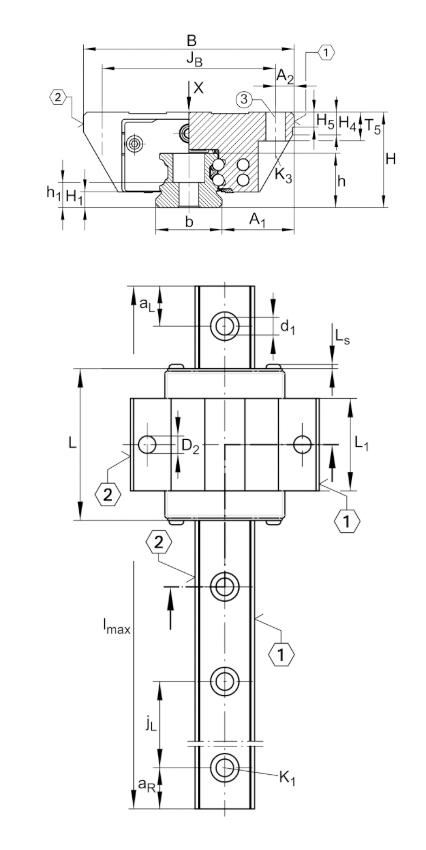

尺寸
A1 |
31 mm |
Distance from locating edge on carriage to locating edge on guideway |
JB |
72 mm |
|
b |
28 mm |
Width rail |
A2 |
9 mm |
Distance from locating edge to hole |
L1 |
42 mm |
|
LS |
1.65 mm |
|
H1 |
5.9 mm |
Free space, system dimension |
H4 |
13.8 mm |
|
H5 |
6.25 mm |
|
T5 |
12 mm |
Thread depth |
K3 |
M8 |
Fixing screws below (DIN ISO 4762-12.9) |
K3 MA |
41 Nm |
Maximum tightening torque 2 |
D2 |
8.6 mm |
|

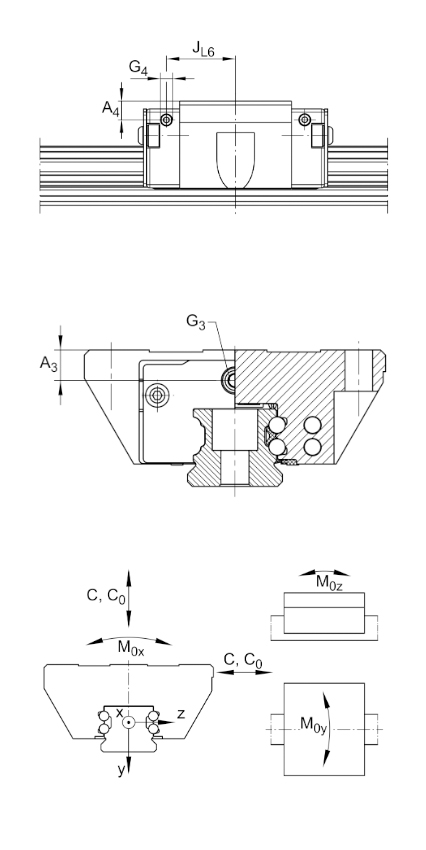

A3 |
11.5 mm |
Position lubrication connector |

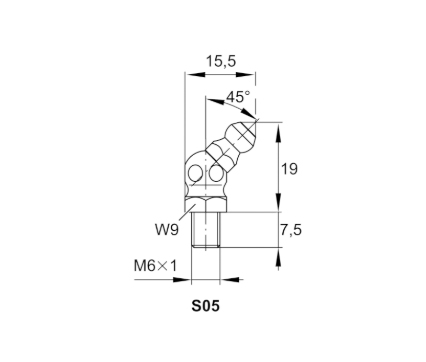

G3 |
M6 |
Lubrication connector |
t G3 |
7 mm |
Maximum permissible screw depth for lubrication connectors |
A4 |
7 mm |
Position lubrication connector |
G4 |
M6 |
Lubrication connector |
t G4 |
7 mm |
Maximum permissible screw depth for lubrication connectors |
JL6 |
26.5 mm |
Position lubrication connector |
附加信息
VMKB_065 |
KWVE |
Material name |
