主要尺寸和性能数据

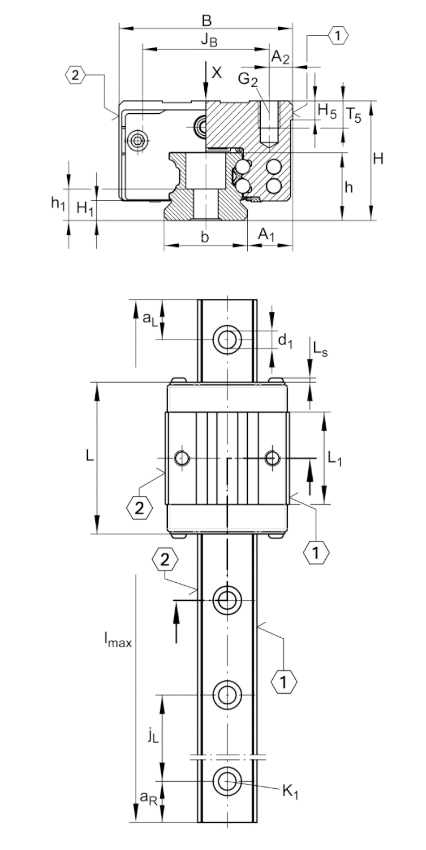

H |
48 mm |
Height system |
B |
70 mm |
Width carriage |
L |
76.2 mm |
Overall length carriage |
C |
24,600 N |
Dynamic load rating 1 |
C0 |
39,000 N |
Static load rating 1 |
M0x |
790 Nm |
Static moment rating about X axis |
M0y |
330 Nm |
Static moment rating about Y axis |
M0z |
330 Nm |
Static moment rating about Z axis |
≈m |
1.04 kg |
重量 |
尺寸
A1 |
18 mm |
Distance from locating edge on carriage to locating edge on guideway |
JB |
50 mm |
|
b |
34 mm |
Width rail |
A2 |
10 mm |
Distance from locating edge to hole |
L1 |
44.2 mm |
|
LS |
1.65 mm |
|
H1 |
6.7 mm |
Free space, system dimension |
H5 |
6.75 mm |
|
T5 |
13.5 mm |
Thread depth |
G2 |
M8 |
Fixing screws above (DIN ISO 4762-12.9) |
G2 MA |
41 Nm |
Maximum tightening torque 2 |

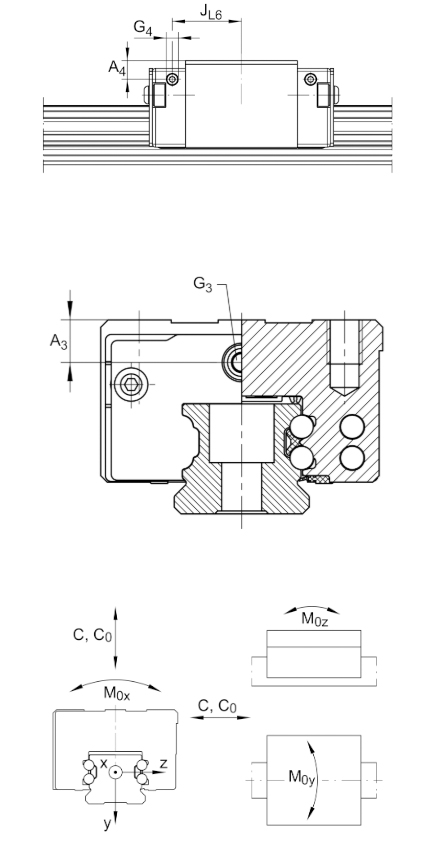

A3 |
12.3 mm |
Position lubrication connector |

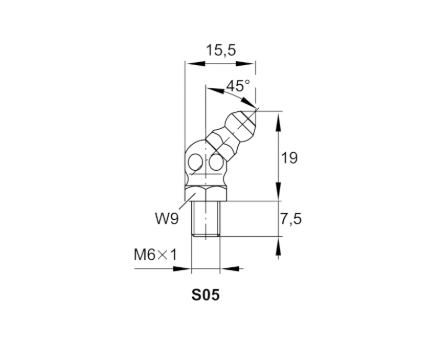

G3 |
M6 |
Lubrication connector |
t G3 |
7 mm |
Maximum permissible screw depth for lubrication connectors |
A4 |
11 mm |
Position lubrication connector |
G4 |
M6 |
Lubrication connector |
t G4 |
7 mm |
Maximum permissible screw depth for lubrication connectors |
JL6 |
29.1 mm |
Position lubrication connector |
附加信息
VMKB_065 |
KWVE |
Material name |
