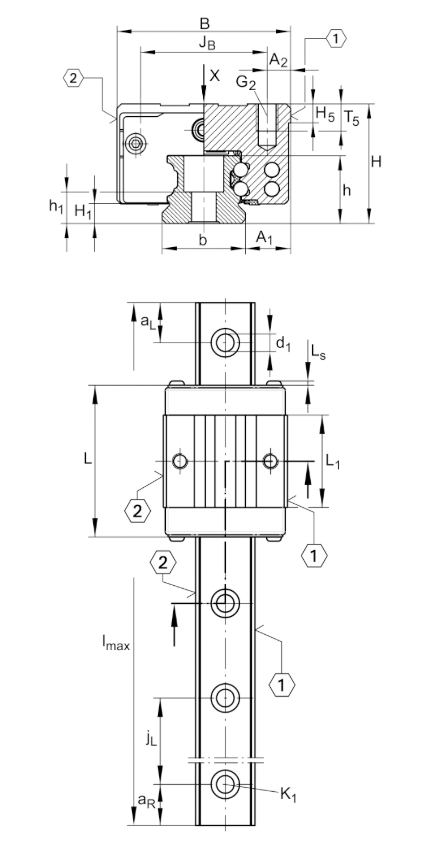

主要尺寸和性能数据
H |
60 mm |
Height system |
B |
86 mm |
Width carriage |
L |
97.8 mm |
Overall length carriage |
C |
46,500 N |
Dynamic load rating 1 |
C0 |
80,000 N |
Static load rating 1 |

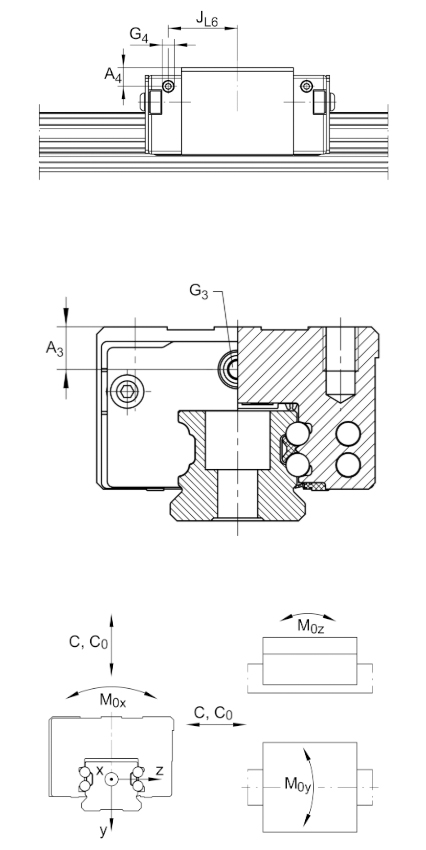

M0x |
2,060 Nm |
Static moment rating about X axis |
M0y |
883 Nm |
Static moment rating about Y axis |
M0z |
883 Nm |
Static moment rating about Z axis |
≈m |
1.8 kg |
重量 |
尺寸
A1 |
20.5 mm |
Distance from locating edge on carriage to locating edge on guideway |
JB |
60 mm |
|
b |
45 mm |
Width rail |
A2 |
13 mm |
Distance from locating edge to hole |
L1 |
59.7 mm |
|
LS |
2.2 mm |
|
H1 |
9.7 mm |
Free space, system dimension |
H5 |
9.25 mm |
|
T5 |
17 mm |
Thread depth |
G2 |
M10 |
Fixing screws above (DIN ISO 4762-12.9) |
G2 MA |
83 Nm |
Maximum tightening torque 2 |
A3 |
16.5 mm |
Position lubrication connector |
G3 |
M6 |
Lubrication connector |
t G3 |
7 mm |
Maximum permissible screw depth for lubrication connectors |
A4 |
16.5 mm |
Position lubrication connector |
G4 |
M6 |
Lubrication connector |
t G4 |
7 mm |
Maximum permissible screw depth for lubrication connectors |
JL6 |
37.9 mm |
Position lubrication connector |
附加信息

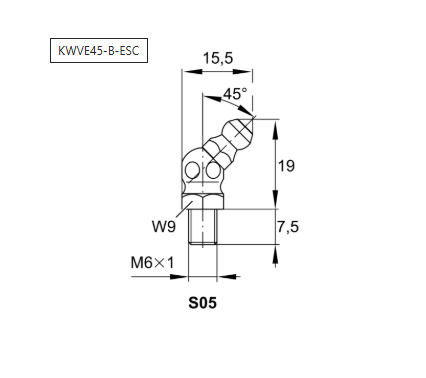

VMKB_065 |
KWVE |
Material name |
