主要尺寸和性能数据
L |
117 mm |
Length total |
|
B |
27 mm |
Width |
|
H |
30 mm |
Height |
|
C |
68,000 N |
Basic dynamic load capacity |
|
C0 |
123,000 N |
Basic static load capacity |
|
≈m |
0.53 kg |
重量 |

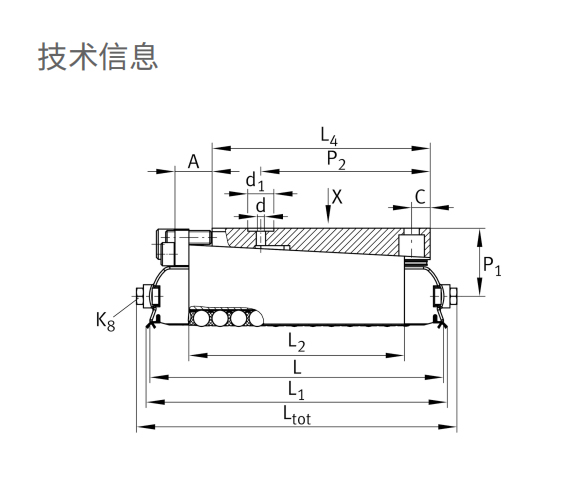

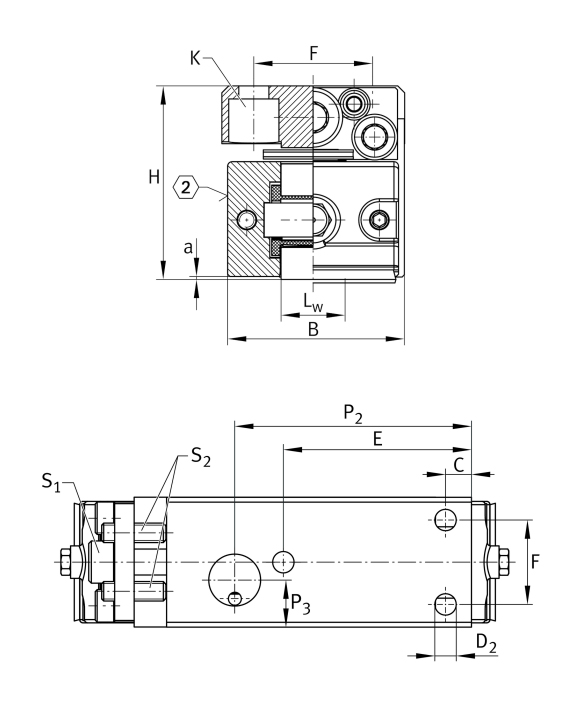

安装尺寸
L |
105mm |
|
L1 |
111mm |
|
L3 |
78.5mm |
|
L4 |
79mm |
|
a |
0.3 mm |
|
LW |
10mm |
|
C |
5mm |
|
E |
45mm |
Mounting dimension |
F |
29mm |
|

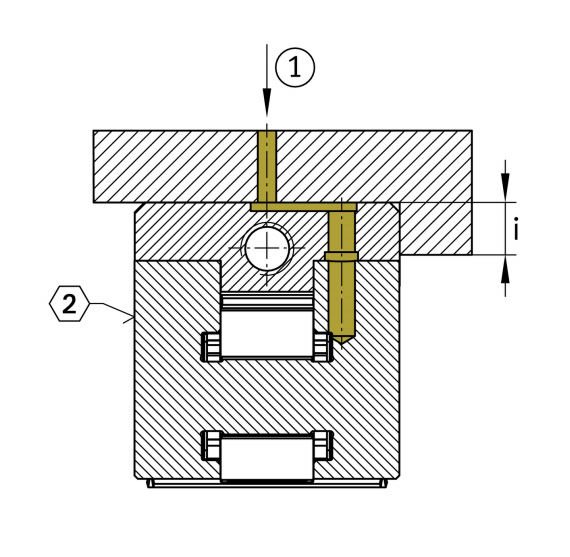

i |
4mm |
Mounting dimension |
P1 |
21mm |
|
d1 |
12mm |
|
P2 |
53mm |
|
P3 |
9 mm |
|
d |
2.5mm |
|
K |
M6 |
Lubrication connector DIN3405-A |
S1 |
3mm |
Hexagon socket adjusting screw 1 |
S2 |
2mm |
Hexagon socket counter forcing screw 1 |
K |
M4 |
Size thread k DIN |
K MA |
5Nm |
Tightening torque fixing screws 2 |
D2 |
4.5mm |
|
Amax |
7 mm |
Screw stroke A |
Delta hmax |
0.37 mm |
Adjustment maximum |
|
0.023 mm |
Adjustment screw revolution |
