主要尺寸和性能数据
H |
30mm |
height system |
|
B |
63mm |
width carriage |
|
L |
71.4mm |
overall length carriage 1 |
|

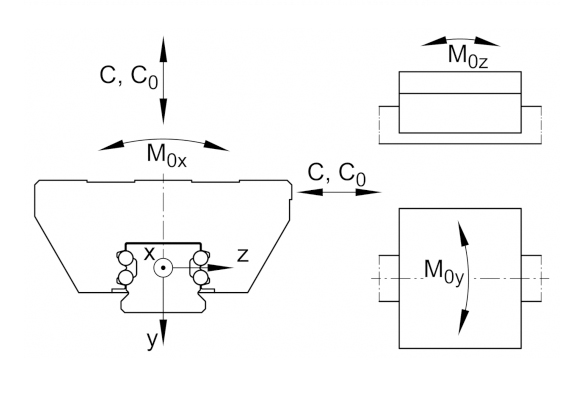

C |
13,100N |
dynamic load rating 1 |
|
C0 |
27,000N |
static load rating 1 |
|
M0x |
332Nm |
static moment rating about X axis |
|
M0y |
240Nm |
static moment rating about Y axis |
|
M0z |
240Nm |
static moment rating about Z axis |
|
≈m |
0.44kg |
重量 |

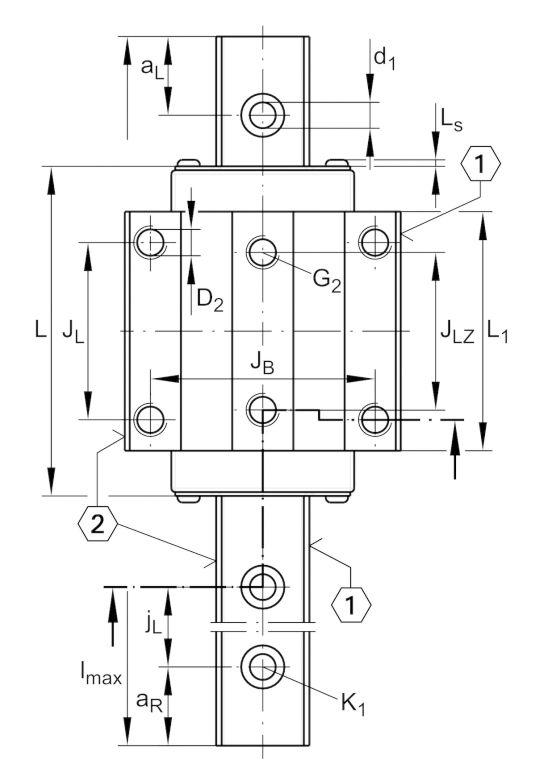

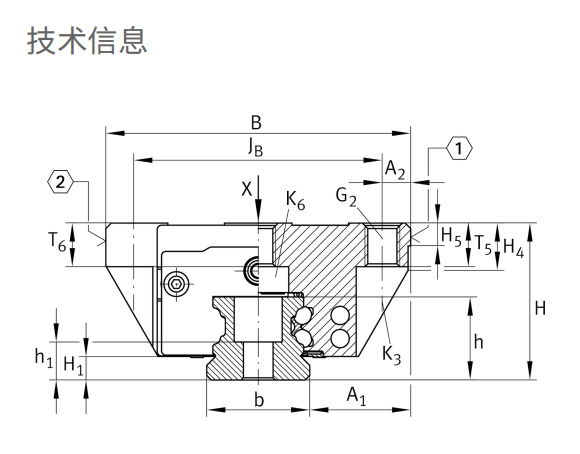

安装尺寸
A1 |
21.5 mm |
||
JB |
53mm |
||
b |
20mm |
width rail |
|
A2 |
5mm |
||
L1 |
50.4mm |
||
LS |
1.3 mm |
||
JL |
40 mm |
||
JLZ |
35 mm |
||
H1 |
4.5mm |
||
H4 |
11mm |
||
H5 |
5.25mm |
||
T5 |
10mm |
||
T6 |
7.5 mm |
||
G2 |
M6 |
fixing screws above (DIN ISO 4762-12.9) |
|
G2 MA |
10Nm |
maximum tightening torque 3 |
|
K3 |
M5 |
fixing screws below (DIN ISO 4762-12.9) |
|
K3 MA |
10Nm |
maximum tightening torque 2 |
|
K6 |
M5 |
fixing screws below (DIN 7984-8.8) |
|
K6 MA |
10Nm |
maximum tightening torque 2 |
|
D2 |
5.5mm |
|
|
A3 |
7.7mm |
position lubrication connector |
|

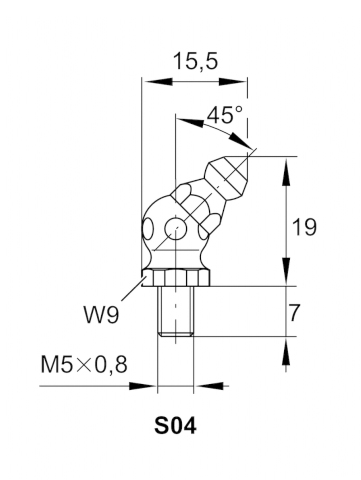

G3 |
M5 |
lubrication connector |
|
tG3 |
7mm |
maximum permissible screw depth for lubrication connectors |
|
A4 |
4.6 mm |
position lubrication connector |
|
G4 |
M5 mm |
lubrication connector |
|
t G4 |
5.5 mm |
maximum permissible screw depth for lubrication connectors |
|
JL6 |
9.4 mm |
position lubrication connector |
