H |
60 mm |
height system |
B |
120 mm |
width carriage |
L |
145.9 mm |
overall length carriage 1 |
C |
92，000N |
dynamic load rating 1 |
C0 |
215,000 N |
static load rating 1 |

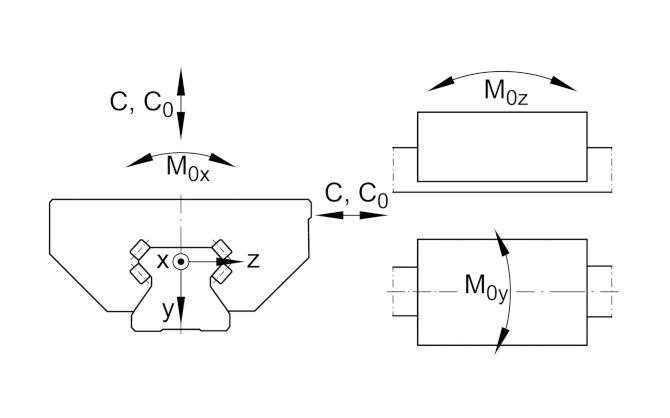

M0x |
1，899Nm |
static moment rating about X axis |
M0y |
4，255Nm |
static moment rating about Y axis |
M0z |
3，821Nm |
static moment rating about Z axis |
≈m |
3.07kg |
重量 |
主要尺寸和性能数据

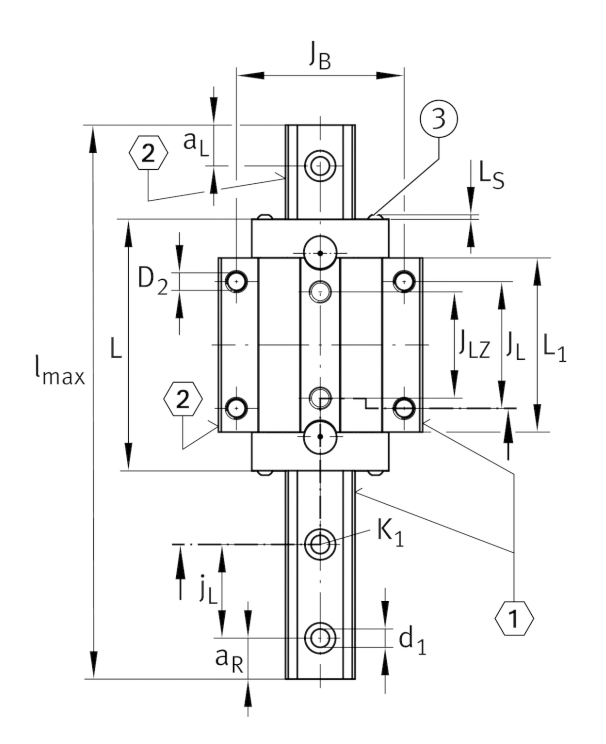

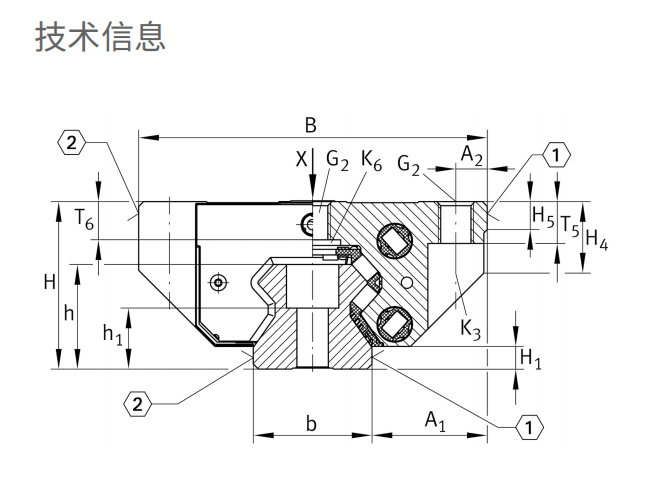

安装尺寸
A1 |
37.5mm |
|||
JB |
100 mm |
|||
b |
45 mm |
width rail |
||
A2 |
10 mm |
|||
L1 |
104.2 mm |
|||
LS |
2.2 mm |
|||
JL |
80mm |
|||
JLZ |
60 mm |
|||
H1 |
8.5 mm |
|||
H4 |
26mm |
|||
H5 |
8 mm |
|||
T5 |
15mm |
|||
T6 |
13.2 mm |
|||
G2 |
M12 |
fixing screws above (DIN ISO 4762-12.9) |
||
G2 MA |
83 Nm |
maximum tightening torque 3 |
||
K3 |
M10 |
fixing screws below (DIN ISO 4762-12.9) |
||
K3 MA |
83 Nm |
maximum tightening torque 3 |
||
K6 |
M10 |
fixing screws below (DIN 7984-8.8) |
||
K6 MA |
48 Nm |
maximum tightening torque 3 |
||
D2 |
10.6 mm |
bore diameter |
||

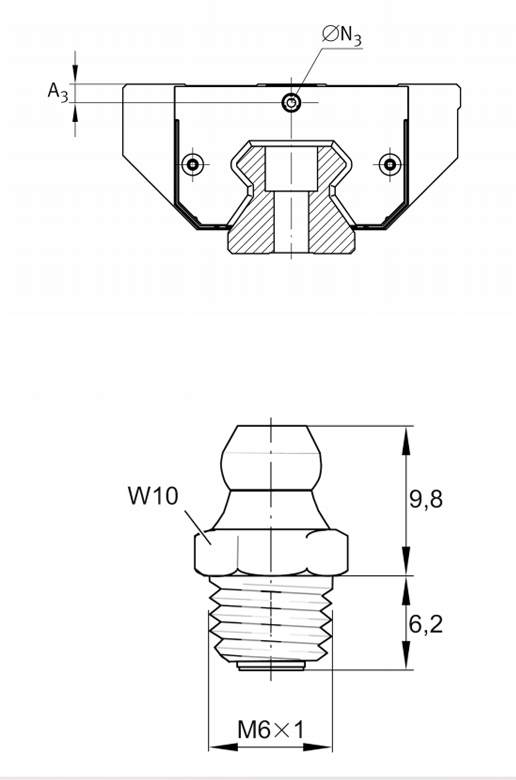

A3 |
6.6 mm |
position lubrication connector |
||
N3 |
M6 |
lubrication connector |
||
t N3 |
6 mm |
maximum permissible screw depth for lubrication connectors |
||

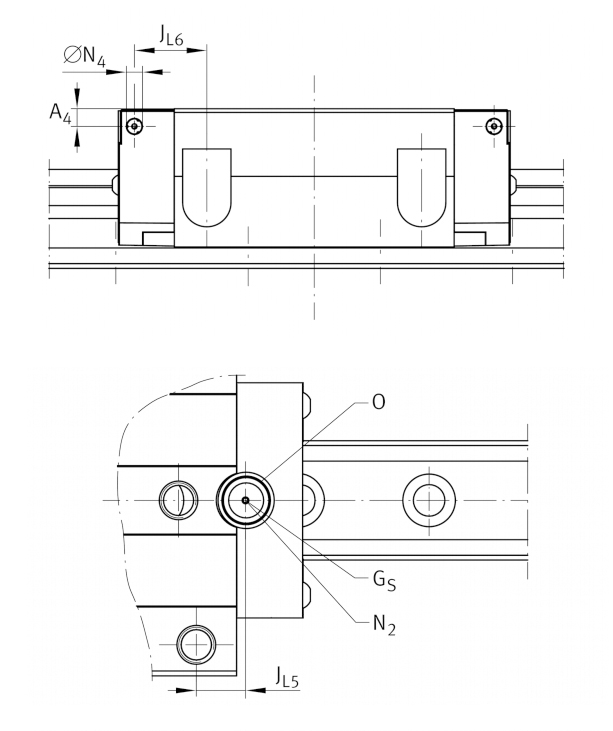

A4 |
6.6 mm |
position lubrication connector |
||
N4 |
6 |
lubrication connector |
||
t N4 |
6mm |
maximum permissible screw depth for lubrication connectors |
||
JL6 |
27 mm |
position lubrication connector |
||
N2 |
6 mm |
max. diameter of lubrication hole in adjacent construction 4construction 4 |
||
JL5 |
15.7mm |
position lubrication connector 5 |
||
GS |
M4x4 |
|
||
O |
10x1,5 mm |
O-Ring DIN 3771 |
