主要尺寸和性能数据
H |
55mm |
height system |
|
B |
70 mm |
width carriage |
|
L |
148.7mm |
overall length carriage 1 |
|
C |
7，000 N |
dynamic load rating 2 |
|
C0 |
175,000 N |
dynamic load rating 2 |
|

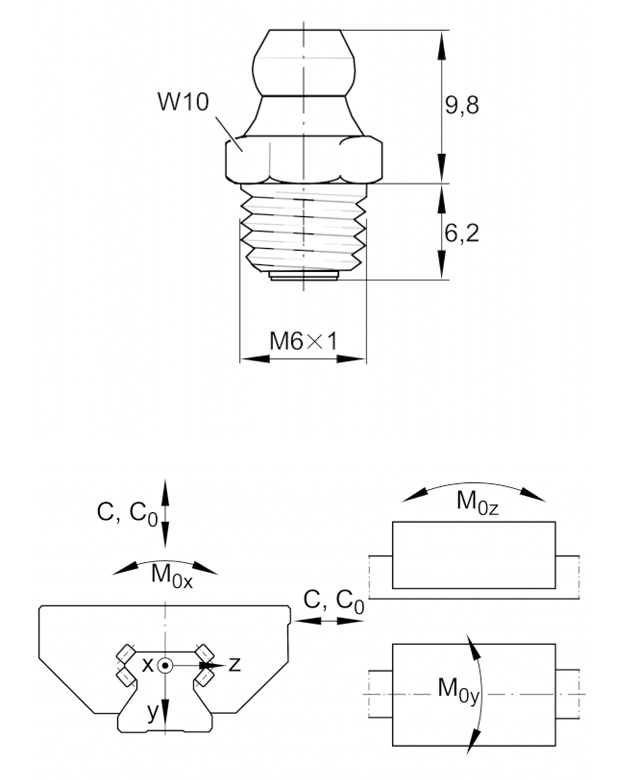

M0x |
1,500Nm |
static moment rating about X axis |
|
M0y |
3,350Nm |
static moment rating about Y axis |
|
M0z |
3,000Nm |
static moment rating about Z axis |
|
≈m |
2.14kg |
重量 |

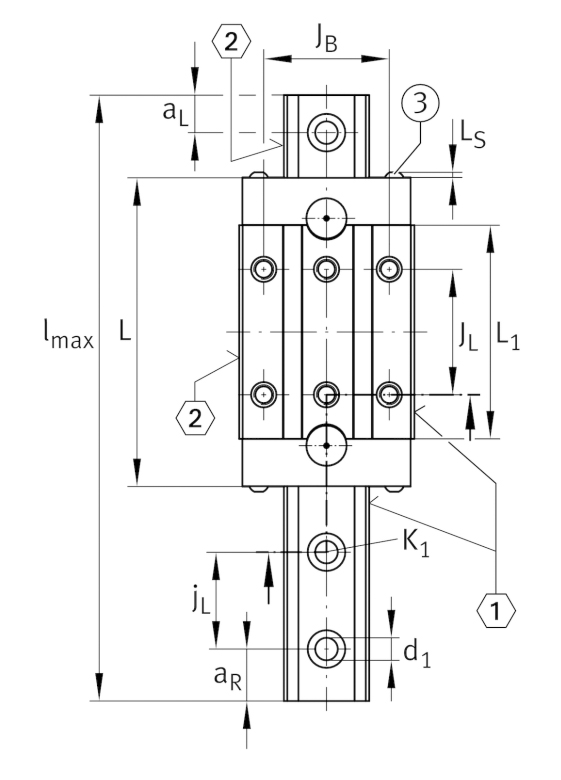

安装尺寸
A1 |
18 mm |
|
JB |
50 mm |
|
b |
34 mm |
width rail |
A2 |
10mm |
|
L1 |
111mm |
|
LS |
2.2 mm |
|
JL |
72mm |
|
H1 |
6.5 mm |
|
H4 |
41.9 mm |
|
H5 |
10.8mm |
|
T5 |
10mm |
|
G2 |
M8 |
fixing screws above (DIN ISO 4762-12.9) |
G2 MA |
41Nm |
maximum tightening torque 3 |

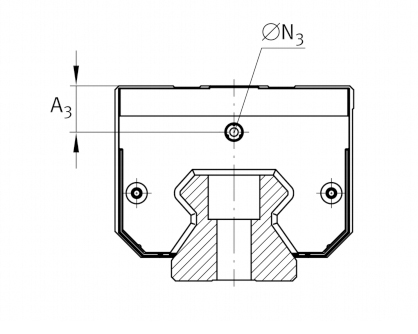

A3 |
13.6mm |
position lubrication connector |
N3 |
M6 |
lubrication connector |
t N3 |
6 mm |
maximum permissible screw depth for lubrication connectors |

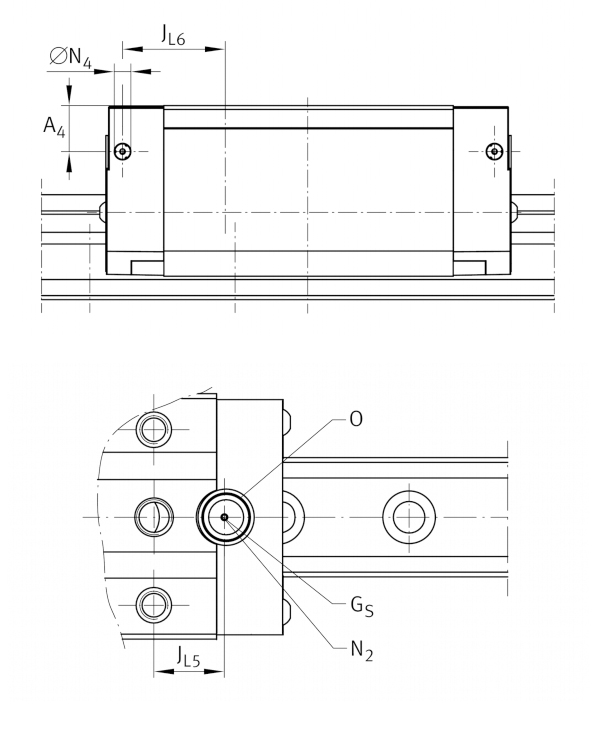

A4 |
12.6 mm |
position lubrication connector |
N4 |
6 |
lubrication connector |
t N4 |
6 mm |
maximum permissible screw depth for lubrication connectors |
JL6 |
32.4mm |
position lubrication connector |
N2 |
6mm |
max. diameter of lubrication hole in adjacent construction 4 |
JL5 |
22.2mm |
position lubrication connector 5 |
GS |
M4x4 |
|
O |
10x1,5 mm |
O-Ring DIN 3771 |
