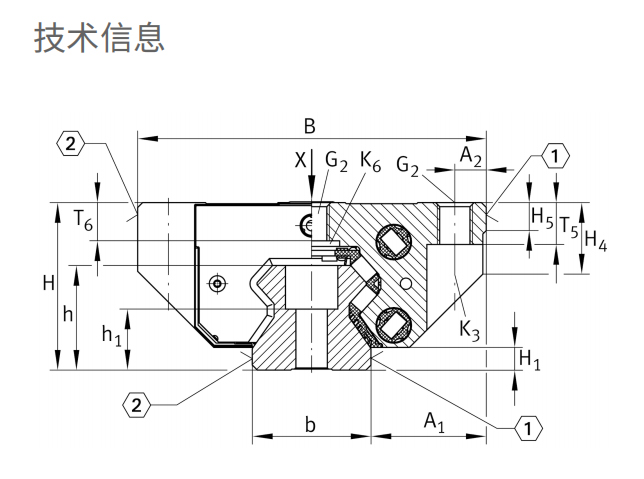

H |
70 mm |
height system |
B |
86 mm |
width carriage |

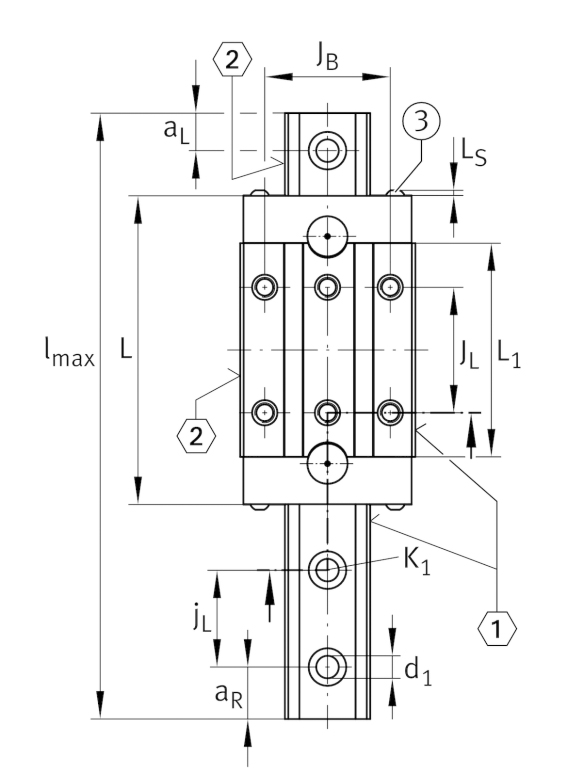

L |
145.9 mm |
overall length carriage 1 |
C |
92,000N |
dynamic load rating 1 |
C0 |
215,000 N |
static load rating 1 |

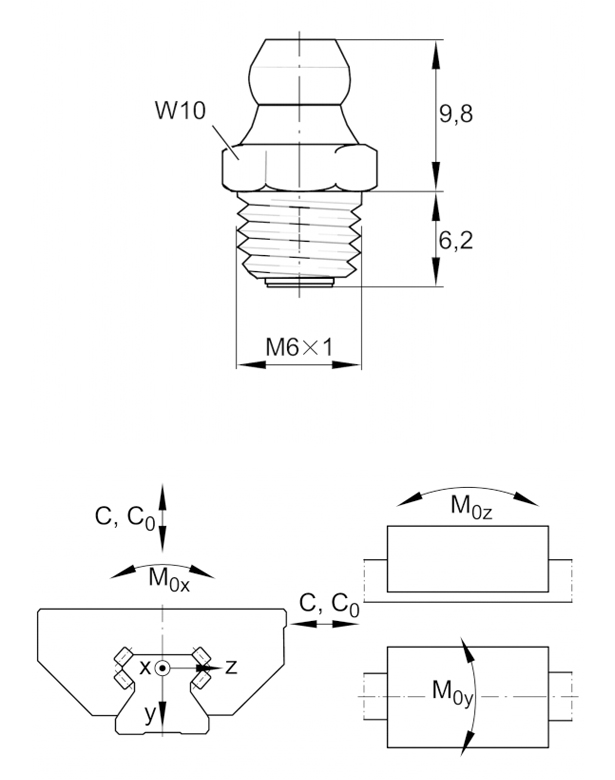

M0x |
1,899 Nm |
static moment rating about X axis |
M0y |
4,255 Nm |
static moment rating about Y axis |
M0z |
3,821 Nm |
static moment rating about Z axis |
≈m |
3.05kg |
重量 |
主要尺寸和性能数据
安装尺寸
A1 |
20.5mm |
|
JB |
60mm |
|
b |
45 mm |
width rail |
A2 |
13 mm |
|
L1 |
104.2 mm |
|
LS |
2.2 mm |
|
JL |
60mm |
|
H1 |
8.5 mm |
|
H4 |
52.4mm |
|
H5 |
13.7mm |
|
T5 |
12.5mm |
|
T6 |
13.2 mm |
|
G2 |
M10 |
fixing screws above (DIN ISO 4762-12.9) |
G2 MA |
83 Nm |
maximum tightening torque 3 |

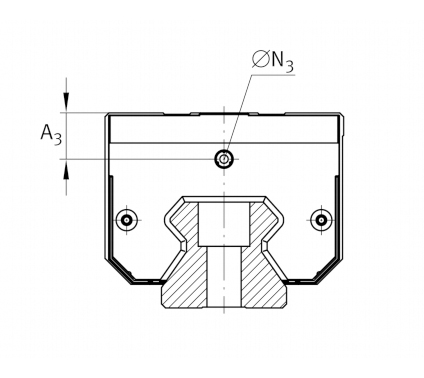

A3 |
16.6 mm |
position lubrication connector |
N3 |
M6 |
lubrication connector |
t N3 |
6 mm |
maximum permissible screw depth for lubrication connectors |
A4 |
6.6 mm |
position lubrication connector |
N4 |
6 |
lubrication connector |
t N4 |
6mm |
maximum permissible screw depth for lubrication connectors |

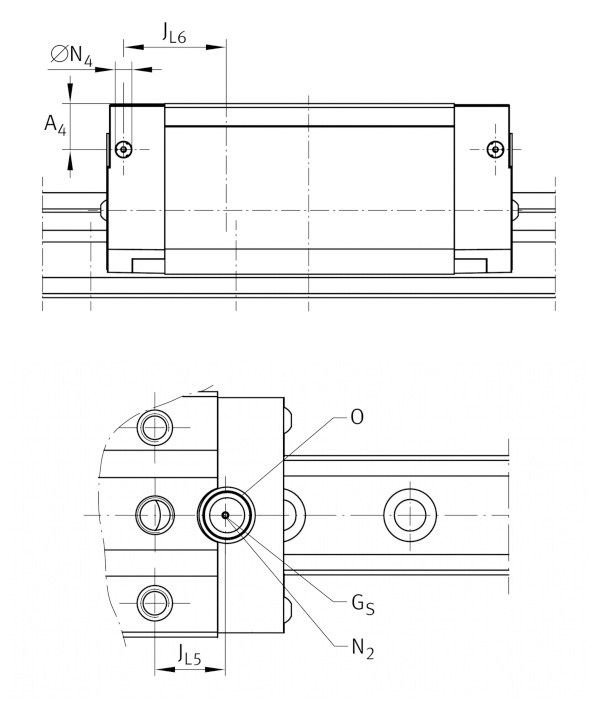

JL6 |
37 mm |
position lubrication connector |
N2 |
6 mm |
max. diameter of lubrication hole in adjacent construction 4construction 4 |
JL5 |
25.7mm |
position lubrication connector 5 |
GS |
M4x4 |
|
O |
10x1,5 mm |
O-Ring DIN 3771 |
