主要尺寸和性能数据
H |
48 mm |
height system |
|
B |
100 mm |
width carriage |
|
L |
148.8 mm |
overall length carriage 1 |
|
C |
70,000 N |
dynamic load rating 1 |
|
C0 |
175,000 N |
static load rating 1 |
|

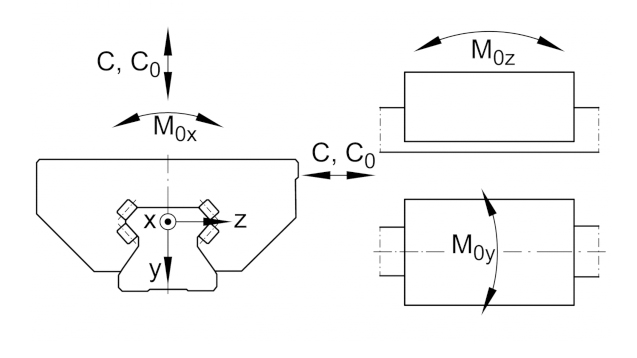

M0x |
1,500 Nm |
static moment rating about X axis |
|
M0y |
3,350 Nm |
static moment rating about Y axis |
|
M0z |
3,000 Nm |
static moment rating about Z axis |
|
≈m |
2.29 kg |
重量 |

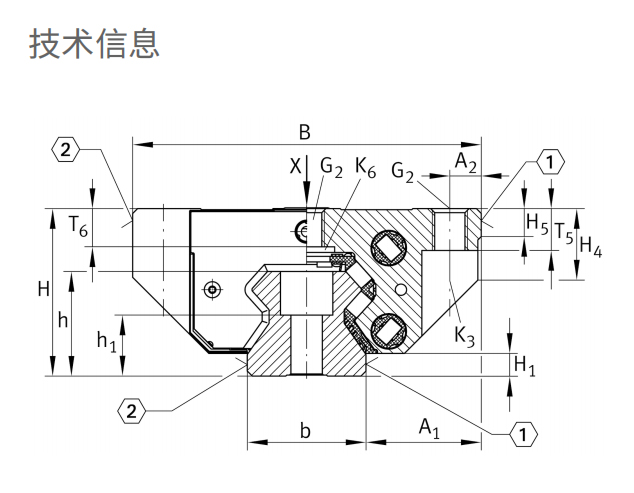

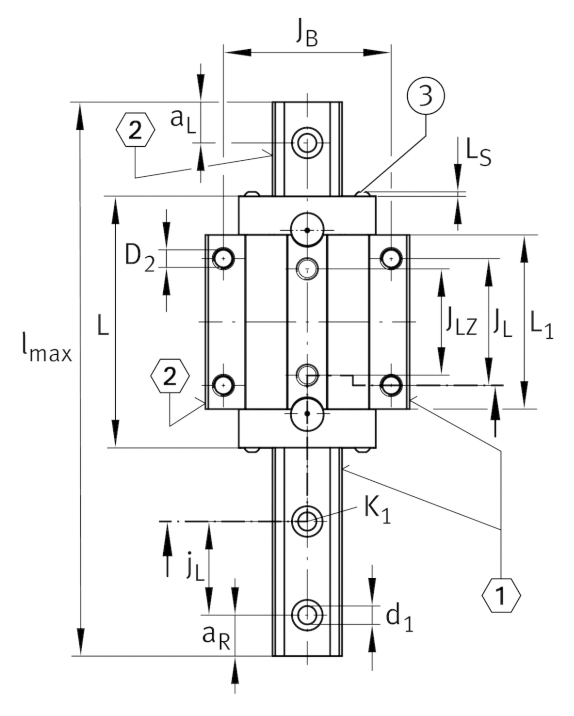

安装尺寸
A1 |
33 mm |
|
JB |
82 mm |
|
b |
34 mm |
width rail |
A2 |
9 mm |
|
L1 |
111 mm |
|
LS |
2.2 mm |
|
JL |
62 mm |
|
JLZ |
52 mm |
|
H1 |
6.5 mm |
|
H4 |
20.5 mm |
|
H5 |
8 mm |
|
T5 |
12 mm |
|
T6 |
10.9 mm |
|
G2 |
M10 |
fixing screws below (DIN ISO 4762-12.9) |
G2 MA |
41 Nm |
maximum tightening torque 3 |
K3 |
M8 |
fixing screws below (DIN ISO 4762-12.9) |
K3 MA |
41 Nm |
maximum tightening torque 3 |
K6 |
M8 |
fixing screws below (DIN 7984-8.8) |
K6 MA |
24 Nm |
maximum tightening torque 3 |
D2 |
8.6 mm |
bore diameter |

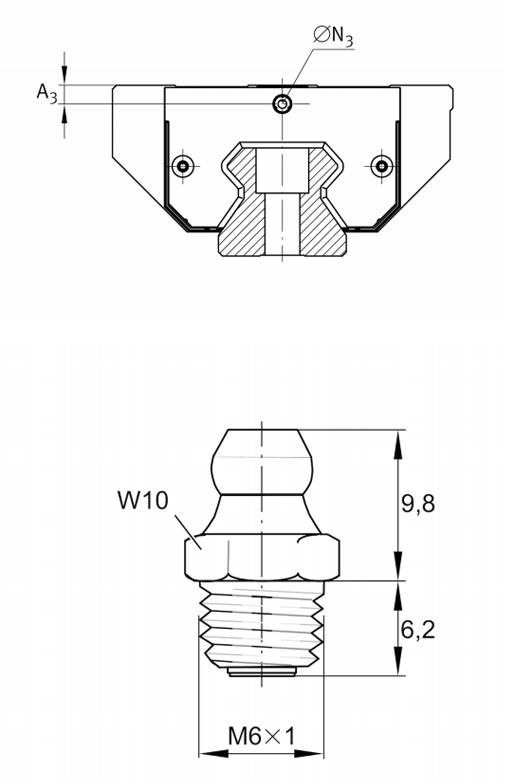

A3 |
6.6 mm |
position lubrication connector |
N3 |
M6 |
lubrication connector |
t N3 |
6 mm |
maximum permissible screw depth for lubrication connectors |

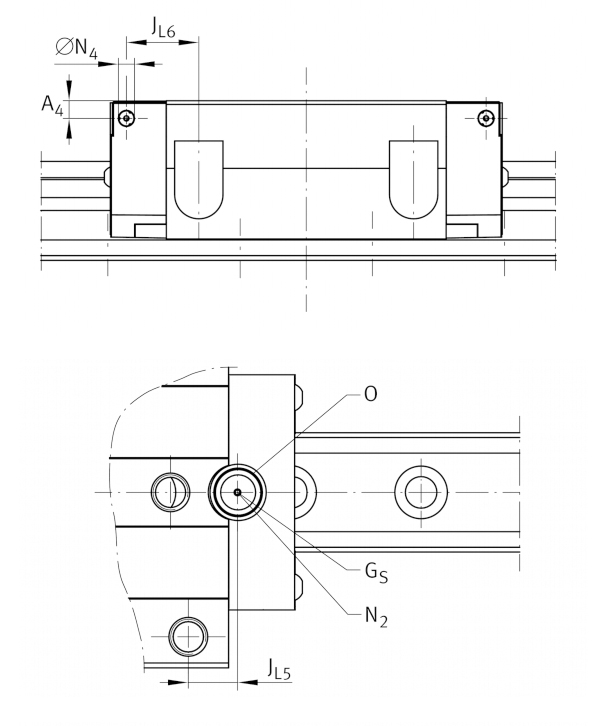

A4 |
5.6 mm |
position lubrication connector |
N4 |
6 |
lubrication connector |
t N4 |
6 mm |
maximum permissible screw depth for lubrication connectors |
JL6 |
37.4 mm |
position lubrication connector |
N2 |
6 mm |
max. diameter of lubrication hole in adjacent construction 4 |
JL5 |
27.2 mm |
position lubrication connector 5 |
GS |
M4x4 |
|
O |
10x1,5 mm |
O-Ring DIN 3771 |
