主要尺寸和性能数据
H |
24mm |
height system |
|
B |
52 mm |
width carriage |
|

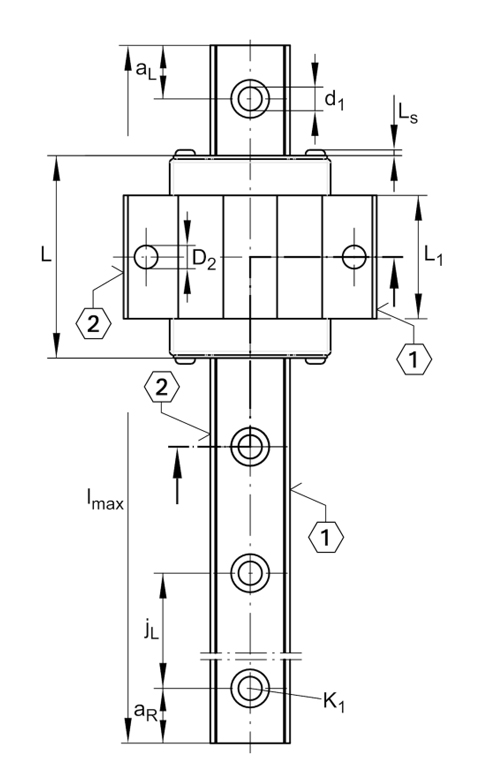

L |
44.5 mm |
overall length carriage 1 |
|
C |
4,900N |
dynamic load rating 1 |
|
C0 |
8,300 N |
static load rating 1 |
|
M0x |
86Nm |
static moment rating about X axis |
|
M0y |
35Nm |
static moment rating about Y axis |
|
M0z |
35Nm |
static moment rating about Z axis |
|
≈m |
0.13kg |
重量 |

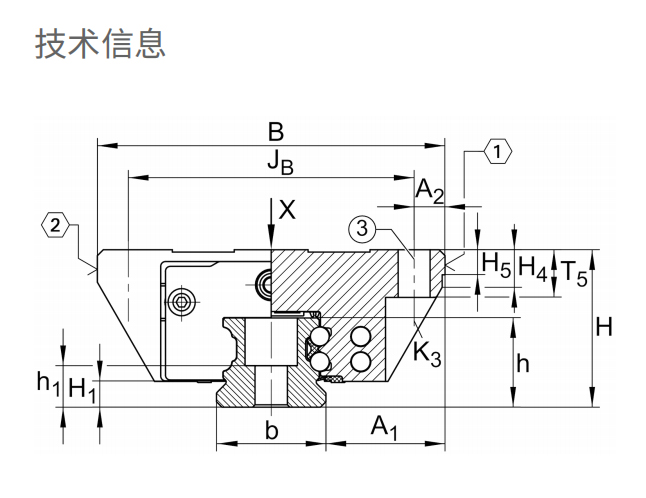

安装尺寸
A1 |
18.5mm |
|
JB |
41mm |
|
b |
15 mm |
width rail |
A2 |
5.5mm |
|
L1 |
23.1 mm |
|
LS |
1.3mm |
|
H1 |
4.3 mm |
|
H4 |
6.1 mm |
|
H5 |
4.75mm |
|
T5 |
7mm |
|
K3 |
M4 |
fixing screws below (DIN ISO 4762-12.9) |
K3 MA |
5 Nm |
maximum tightening torque 2 |
D2 |
4.5mm |
fixing screws above (DIN ISO 4762-12.9) |

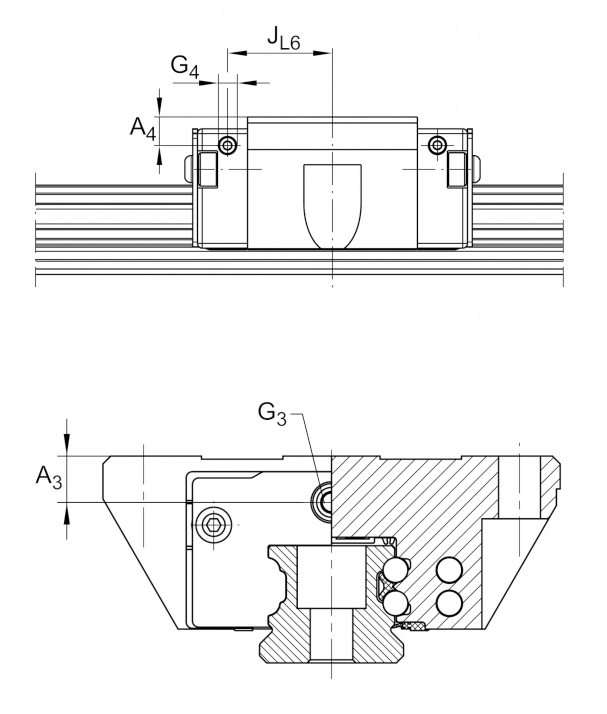

A3 |
4.3 mm |
position lubrication connector |
G3 |
M3 |
lubrication connector |
t G3 |
5.5 mm |
maximum permissible screw depth for lubrication connectors |
A4 |
3.2 mm |
position lubrication connector |
G4 |
M3 mm |
lubrication connector |
t G4 |
5.5 mm |
maximum permissible screw depth for lubrication connectors |
JL6 |
15.8mm |
position lubrication connector |
