主要尺寸和性能数据
H |
24mm |
height system |
B |
52 mm |
width carriage |
L |
61.2 mm |
overall length carriage 1 |

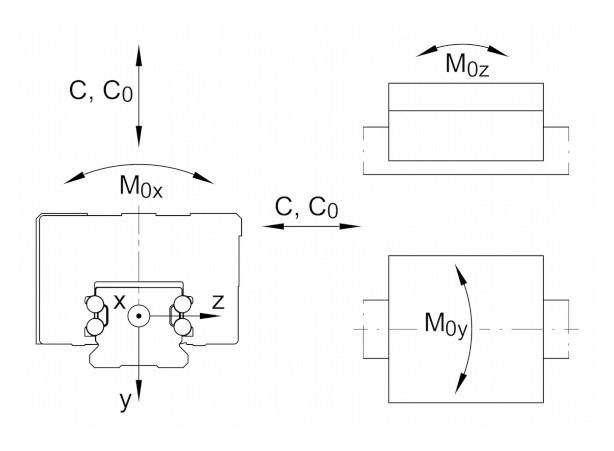

C |
7,200 N |
dynamic load rating 1 |
C0 |
14,500 N |
static load rating 1 |
M0x |
150 Nm |
static moment rating about X axis |
M0y |
100 Nm |
static moment rating about Y axis |
M0z |
100 Nm |
static moment rating about Z axis |
≈m |
0.2kg |
重量 |

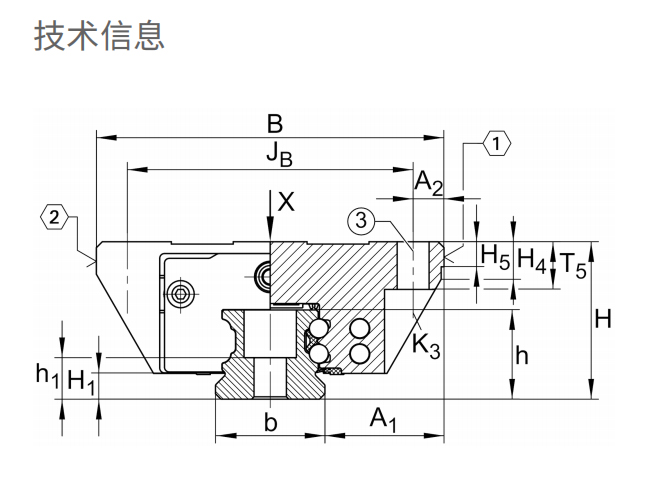

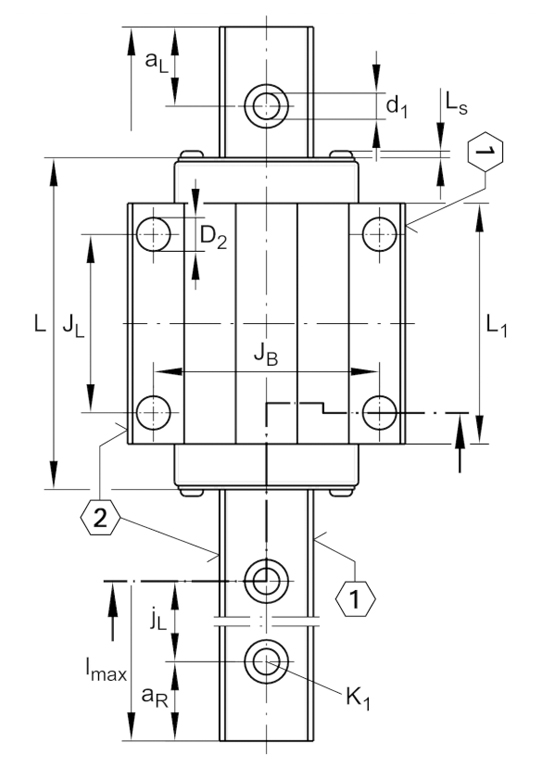

安装尺寸
A1 |
18.1mm |
||
JB |
41mm |
||
b |
15mm |
width rail |
|
A2 |
5.5 mm |
||
L1 |
39.8mm |
||
LS |
1.3mm |
||
JL |
26mm |
||
H1 |
4.3mm |
||
H4 |
6.1mm |
||
H5 |
4.75mm |
||
T5 |
7mm |
||
G2 |
M5 |
fixing screws above (DIN ISO 4762-12.9) |
|
K3 |
M4 |
fixing screws below (DIN ISO 4762-12.9) |
|
K3 MA |
5 Nm |
maximum tightening torque 2 |
|
D2 |
4.5 mm |
|
|
N3 |
M6 |
lubrication connector |
|

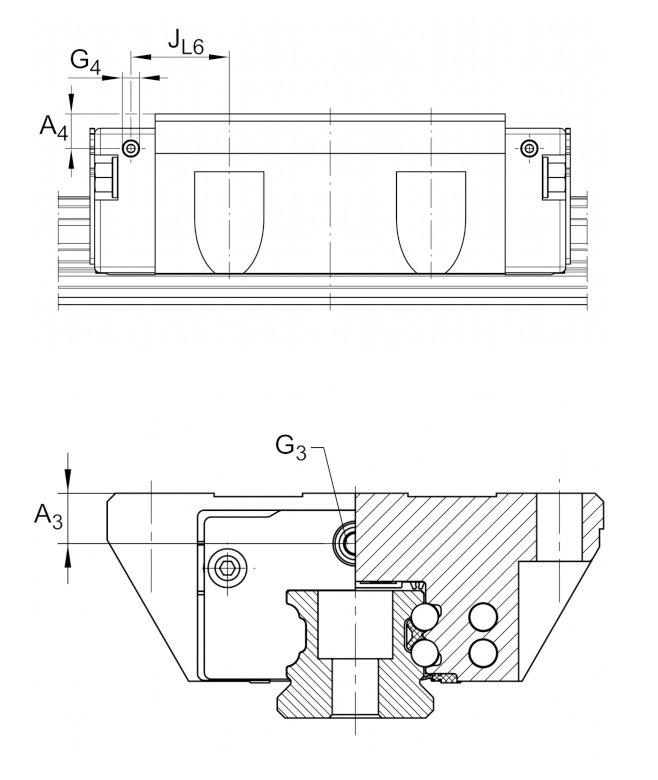

A3 |
4.3 mm |
position lubrication connector |
|
G3 |
M3 |
lubrication connector |
|
t G3 |
5.5mm |
maximum permissible screw depth for lubrication connectors |
|
A4 |
3.2 mm |
position lubrication connector |
|
G4 |
M3 mm |
lubrication connector |
|
t G4 |
5.5mm |
maximum permissible screw depth for lubrication connectors |
|
JL6 |
11.1mm |
position lubrication connector |
|
