主要尺寸和性能数据
H |
28 mm |
height system |
||
B |
34 mm |
width carriage |
||
L |
61.2 mm |
overall length carriage 1 |
||
C |
7,200N |
dynamic load rating 1 |
||
C0 |
14,500 N |
static load rating 1 |
||

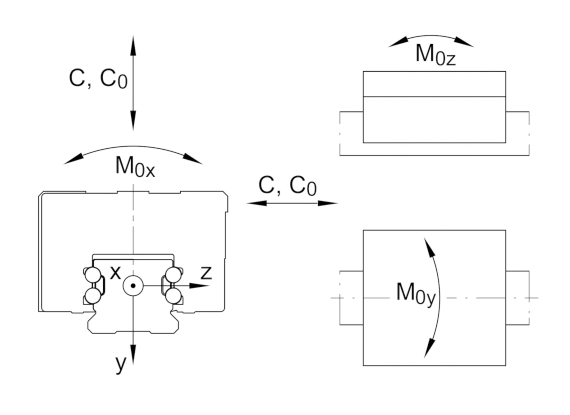

M0x |
150Nm |
static moment rating about X axis |
||
M0y |
100Nm |
static moment rating about Y axis |
||
M0z |
100Nm |
static moment rating about Z axis |
||
≈m |
0.2kg |
重量 |

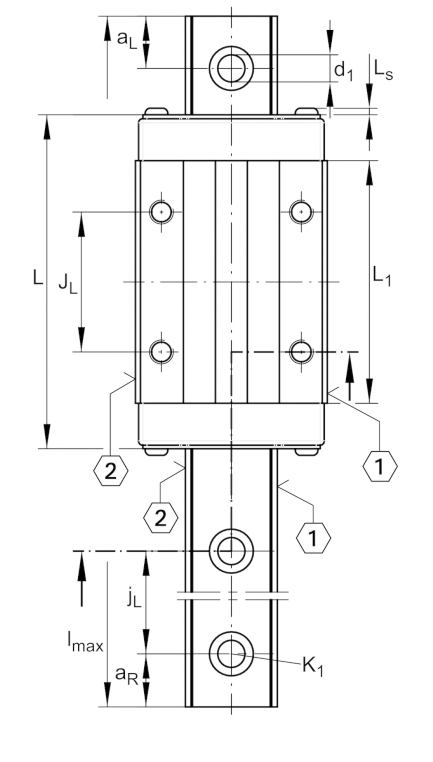

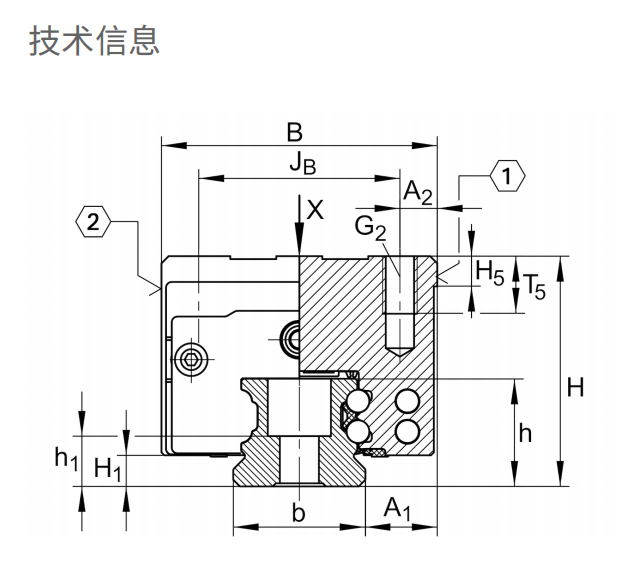

安装尺寸
A1 |
9.5 mm |
|
JB |
26mm |
|
b |
15 mm |
width rail |
A2 |
4 mm |
|
L1 |
39.8 mm |
|
LS |
1.3mm |
|
JL |
26mm |
|
H1 |
4.3 mm |
|
H5 |
4.75mm |
|
T5 |
6mm |
|
G2 |
M4 |
fixing screws above (DIN ISO 4762-12.9) |
G2 MA |
5 Nm |
maximum tightening torque 3 |
G3 |
M3 |
lubrication connector |
t G3 |
5.5 mm |
maximum permissible screw depth for lubrication connectors |
A4 |
7.2 mm |
position lubrication connector |
G4 |
M3 mm |
lubrication connector |
t G4 |
5.5 mm |
maximum permissible screw depth for lubrication connectors |
JL6 |
11.1mm |
position lubrication connector |
