主要尺寸和性能数据
H |
40mm |
height system |
B |
48mm |
width carriage |

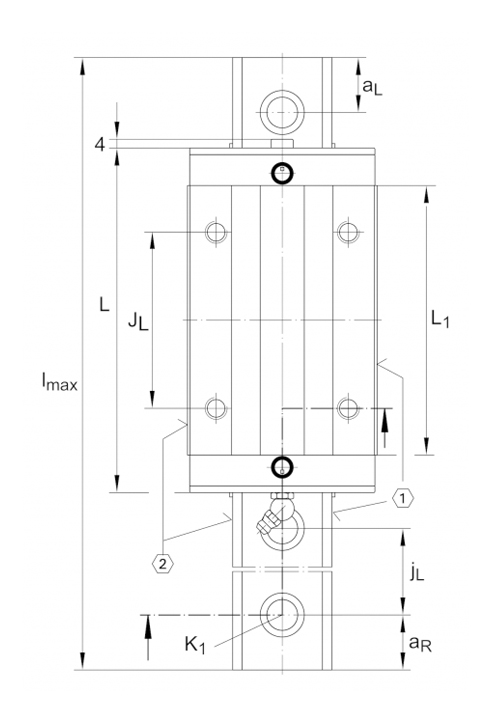

L |
81.8mm |
overall length carriage 1 |
I C |
28,000 N |
dynamic load rating 1 |
I C0 |
67,000 N |
static load rating 1 |
II C |
26,000 N |
dynamic load rating, load direction II: tensile load |
II C0 |
45,000 N |
static moment rating about X axis |
III C |
28,000 N |
dynamic load rating; basic dynamic load rating, Load direction III: lateral load |
III C0 |
47,000 N |
static moment rating about Z axis |
≈m |
0.5kg |
重量 |

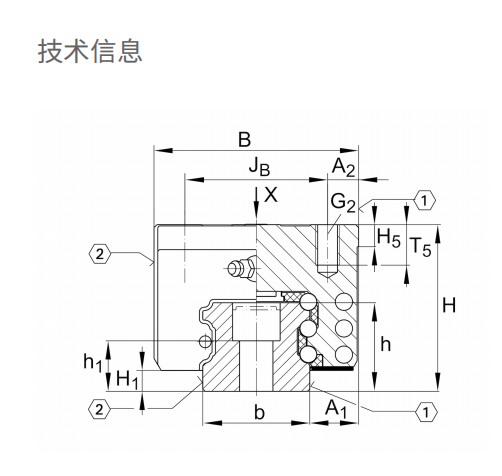

安装尺寸
A1 |
12.5mm |
|
JB |
35mm |
|
b |
23mm |
width rail |
A2 |
6.5mm |
|
L1 |
60.9mm |
|
JL |
35mm |
|
JLZ |
40mm |
|
H1 |
5.2mm |
|
H5 |
5mm |
|
G2 |
M6 |
fixing screws above (DIN ISO 4762-12.9) |
G2 MA |
17Nm |
maximum tightening torque 2 |
N2 |
3 mm |
max. diameter of lubrication hole in adjacent construction |
JL5 |
17.94mm |

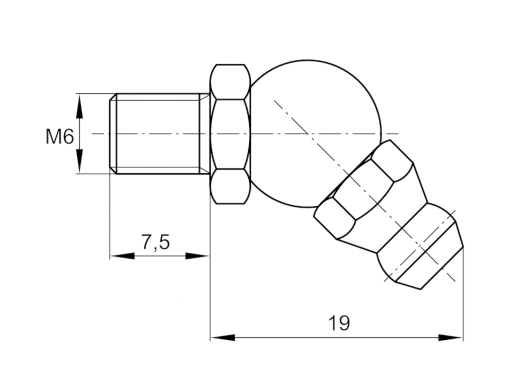

position lubrication connector |
A3 |
10mm |
position lubrication connector |
t A3 |
7 mm |
maximum permissible screw depth for lubrication connectors |
O |
3x1,5 mm |
O-Ring DIN 3771 |

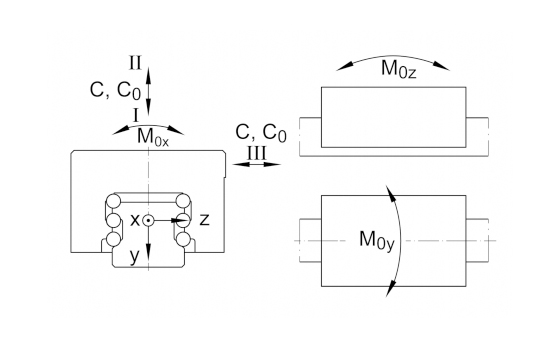

M0X |
840 Nm |
Moment |
M0Y |
510 Nm |
Moment |
M0Z |
450 Nm |
Moment |
