主要尺寸和性能数据
H |
30mm |
height system |
|
B |
63mm |
width carriage |
|
L |
71.4mm |
overall length carriage 1 |
|
I C |
22,000N |
dynamic load rating 1 |
|
I C0 |
52,000N |
static load rating 1 |
|
II C0 |
35,300 N |
static moment rating about X axis |
|
III C |
21,000N |
static moment rating about Y axis |
|
III C0 |
35,000N |
static moment rating about Z axis |
|
≈m |
0.43kg |
重量 |

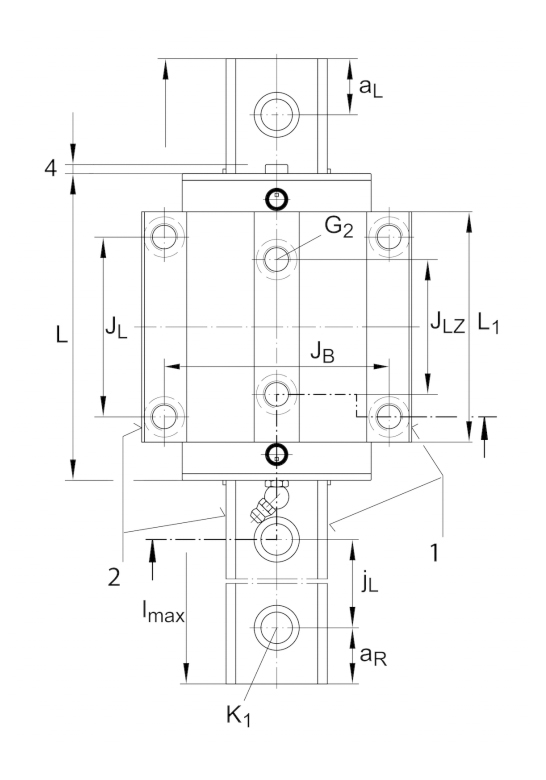

安装尺寸
A1 |
21.5mm |
|
JB |
53mm |
|
b |
20mm |
width rail |
A2 |
5mm |
|
L1 |
52.4mm |
|
JL |
40mm |
|
JLZ |
35 mm |
|
H1 |
4.6mm |
|
H4 |
10.6 mm |
|
H5 |
5mm |
|
T5 |
10mm |
|
T6 |
7.2 mm |
|
G2 |
M6 |
fixing screws above (DIN ISO 4762-12.9) |
G2 MA |
10Nm |
maximum tightening torque 2 |
K3 |
M5 |
fixing screws below (DIN ISO 4762-12.9) |
K3 MA |
10 Nm |
maximum tightening torque |
K6 |
M5 |
fixing screws below (DIN ISO 4762-12.9) |
D2 |
M5 |
|
N2 |
3 mm |
max. diameter of lubrication hole in adjacent construction |
JL5 |
9.95 mm |
position lubrication connector |
A3 |
5.8mm |
position lubrication connector |
t A3 |
7 mm |
maximum permissible screw depth for lubrication connectors |
M0X |
530 Nm |
Moment |
M0Y |
530 Nm |
Moment |
M0Z |
305 Nm |
Moment |
