主要尺寸和性能数据
H |
33mm |
height system |
|
B |
73mm |
width carriage |
|

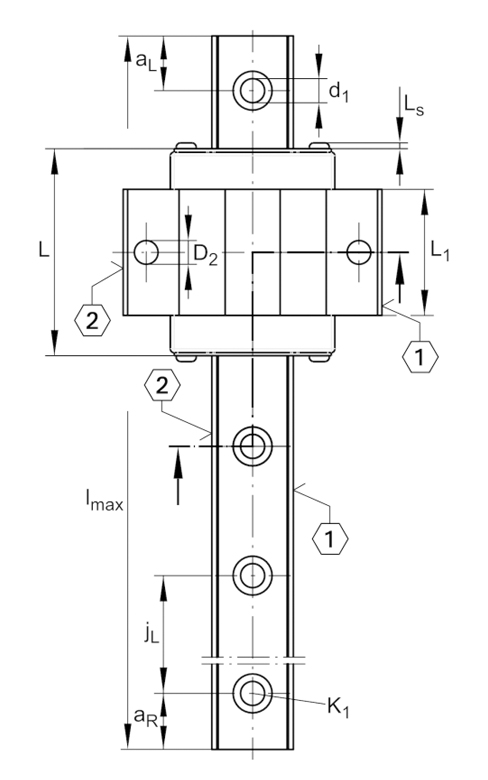

L |
58.2mm |
overall length carriage 1 |
|

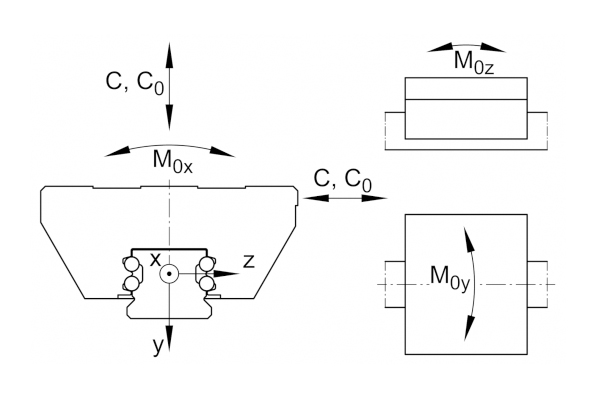

C |
12,500N |
dynamic load rating 1 |
|
C0 |
22,200 N |
static load rating 1 |
|
M0x |
305Nm |
static moment rating about X axis |
|
M0y |
155Nm |
static moment rating about Y axis |
|
M0z |
155Nm |
static moment rating about Z axis |
|
≈m |
0.4kg |
重量 |

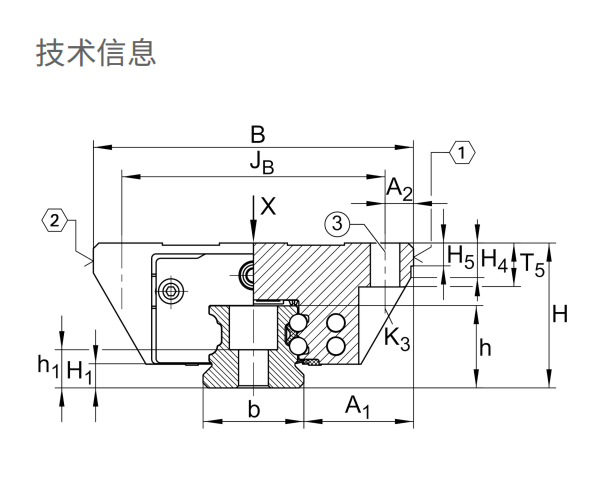

安装尺寸
A1 |
25mm |
||
JB |
60mm |
||
b |
23mm |
width rail |
|
A2 |
6.5mm |
||
L1 |
35.6mm |
||
LS |
1.65 mm |
||
JL |
35mm |
||
H1 |
5.1mm |
||
H4 |
7.85 mm |
||
H5 |
5.25mm |
||
T5 |
10mm |
||
K3 |
M6 |
fixing screws below (DIN ISO 4762-12.9) |
|
K3 MA |
17 Nm |
maximum tightening torque 2 |
|
D2 |
6.7 mm |
|
|

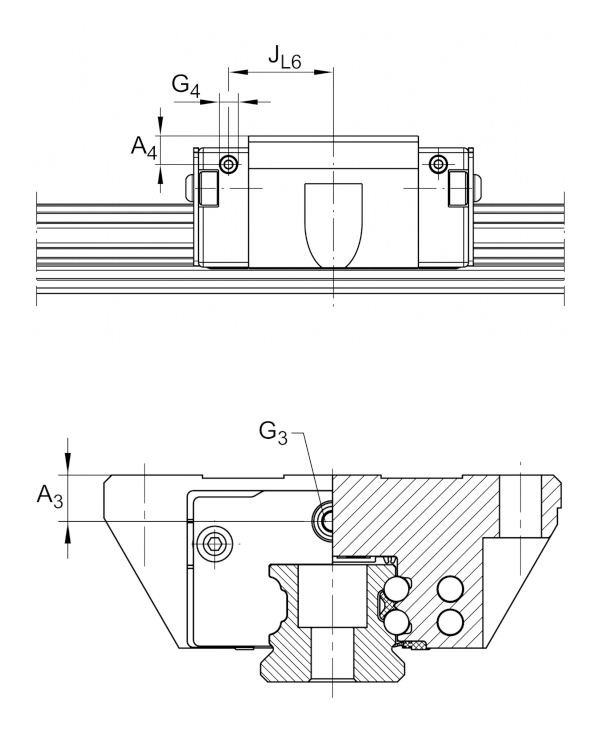

A3 |
8mm |
position lubrication connector |
|
G3 |
M6 |
lubrication connector |
|
tG3 |
7mm |
maximum permissible screw depth for lubrication connectors |
|
A4 |
6mm |
position lubrication connector |
|
G4 |
M3mm |
lubrication connector |
|
t G4 |
6mm |
maximum permissible screw depth for lubrication connectors |
|
JL6 |
22mm |
position lubrication connector |
