KWVE25-B-ES

循环球轴承滑块 滑块 KWVE..-B-ES, 用于四列直线球轴承和导轨组件的滑块, 扩展型, 窄型设计

图5.jpg 图1.jpg 图2.jpg 图3.jpg 图4.jpg

主要尺寸和性能数据



H

33mm

height system


B

48mm

width carriage


L

83.3mm

overall length carriage 1


C

17,900N

dynamic load rating 1


C0

37,000  N

static load rating 1


M0x

510Nm

static moment rating about X axis


M0y

395Nm

static moment rating about Y axis


M0z

395Nm

static moment rating about Z axis


≈m

0.56kg

重量

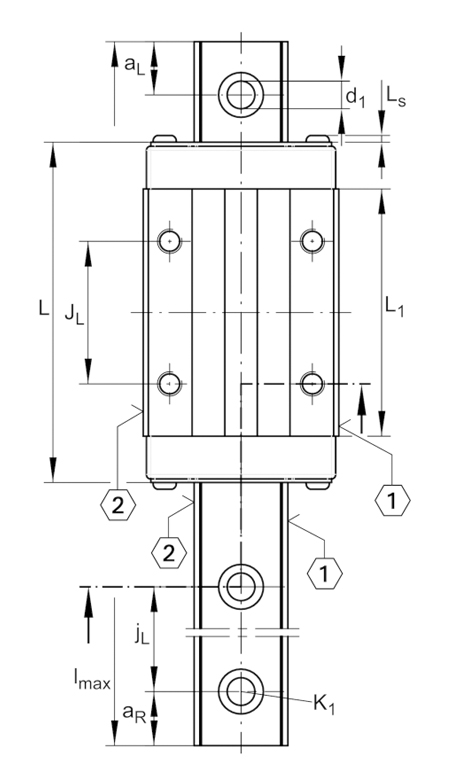

安装尺寸

A1

12.5mm


JB

35mm


b

23mm

width rail

A2

6.5mm


L1

60.7mm


LS

1.65 mm


JL

35mm


H1

5.2mm


H5

5.25mm


T5

10mm


G2

M6

fixing screws below (DIN ISO 4762-12.9)

G2 MA

17 Nm

maximum tightening torque 2

D2

6.78mm

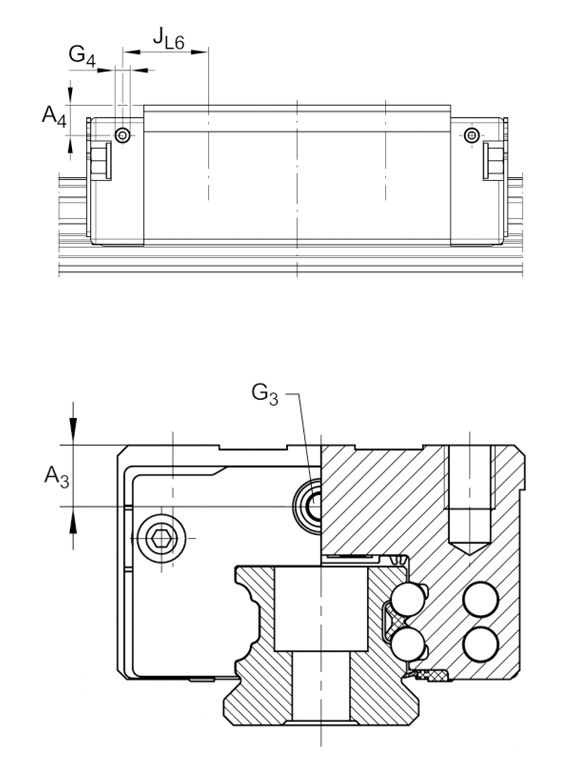

A3

11mm

position lubrication connector

G3

M6

lubrication connector

tG3

7mm

maximum permissible screw depth for lubrication connectors

A4

6.5mm

position lubrication connector

G4

M3mm

lubrication connector

t G4

7mm

maximum permissible screw depth for lubrication connectors

JL6

12.85mm

position lubrication connector
