主要尺寸和性能数据
H |
28mm |
height system |
|
B |
42mm |
width carriage |
|
L |
71.4mm |
overall length carriage 1 |
|
C |
13,100N |
dynamic load rating 1 |
|
C0 |
27,000N |
static load rating 1 |
|
M0x |
332Nm |
static moment rating about X axis |
|
M0y |
240Nm |
static moment rating about Y axis |
|
M0z |
240Nm |
static moment rating about Z axis |
|
≈m |
0.31kg |
重量 |

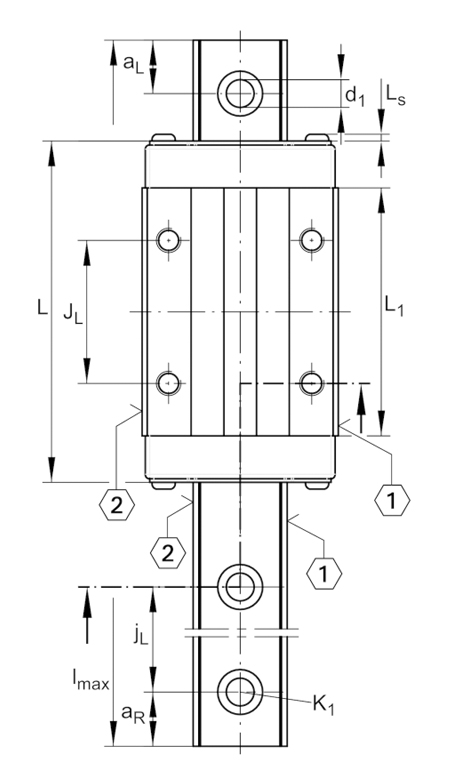

安装尺寸
A1 |
11mm |
|
JB |
32mm |
|
b |
20mm |
width rail |
A2 |
5mm |
|
L1 |
50.4mm |
|
LS |
1.3 mm |
|
JL |
2 mm |
|
H1 |
4.5mm |
|
H5 |
5.25mm |
|
T5 |
7.5mm |
|
G2 |
M5 |
fixing screws below (DIN ISO 4762-12.9) |
G2 MA |
10 Nm |
maximum tightening torque 2 |

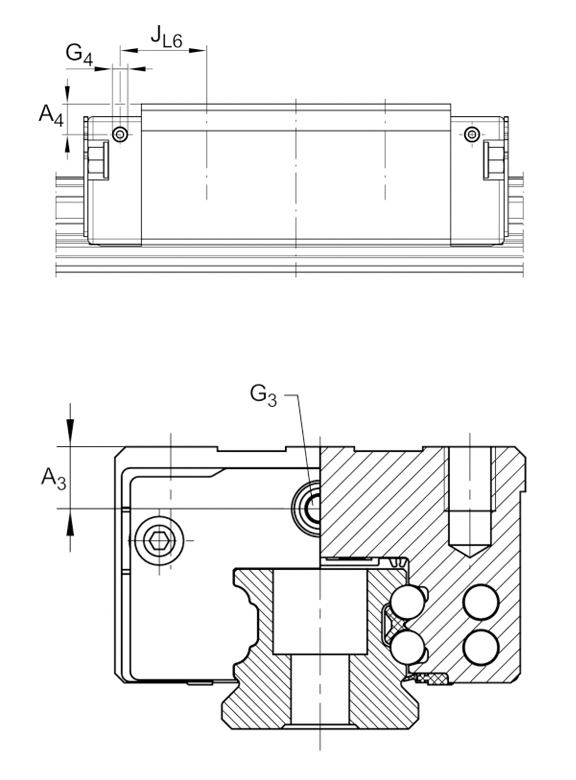

A3 |
8mm |
position lubrication connector |
G3 |
M5 |
lubrication connector |
tG3 |
7mm |
maximum permissible screw depth for lubrication connectors |
A4 |
4.6 mm |
position lubrication connector |
G4 |
M3mm |
lubrication connector |
t G4 |
5.5 mm |
maximum permissible screw depth for lubrication connectors |
JL6 |
9.4mm |
position lubrication connector |
