KWVE20-B-ESC

循环球轴承滑块 滑块 KWVE..-B-ESC, 窄短型滑块, 四列, 满装滚珠

图1.jpg 图2.jpg 图3.jpg 图4.jpg 图5.jpg

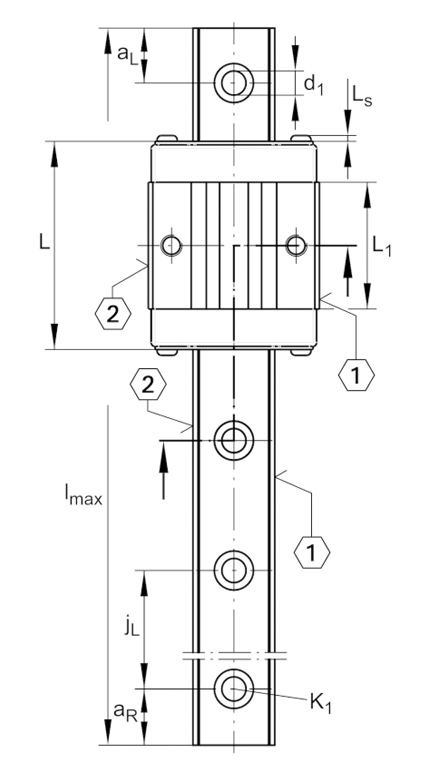

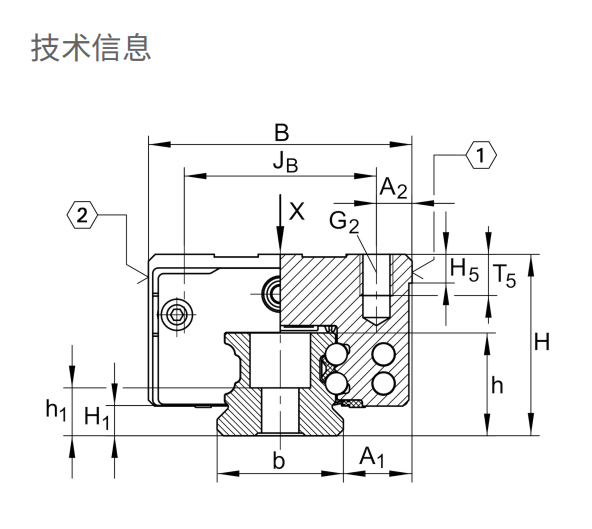

主要尺寸和性能数据


H

28mm

height system


B

42mm

width carriage


L

50.4mm

overall length carriage 1


C

8,900 N

dynamic load rating 1

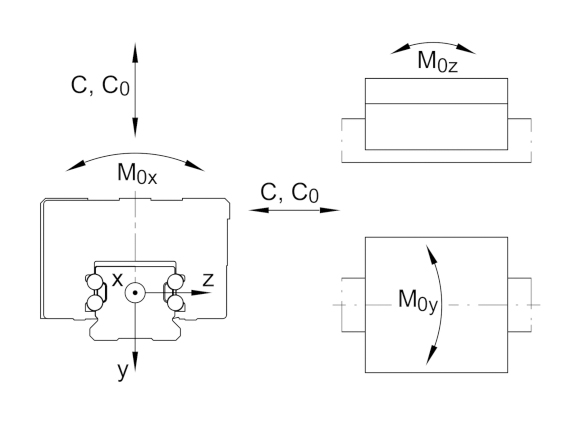

C0

15,400N

static load rating 1


M0x

190Nm

static moment rating about X axis


M0y

85Nm

static moment rating about Y axis


M0z

85Nm

static moment rating about Z axis


≈m

0.18kg

重量



安装尺寸

A1

11mm


JB

32mm


b

20mm

width rail

A2

5mm


L1

29.4mm


LS

1.65mm


H1

4.5mm


H5

5.25mm


T5

7.5mm


G2

M5

fixing screws below (DIN ISO 4762-12.9)

G2 MA

10 Nm

maximum tightening torque 2

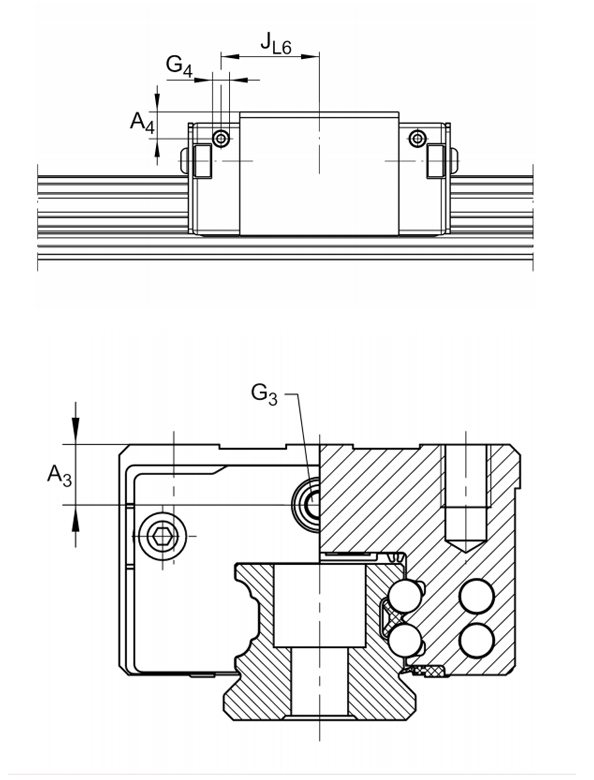

A3

6mm

position lubrication connector

G3

M5

lubrication connector

tG3

7mm

maximum permissible screw depth for lubrication connectors

A4

4.3mm

position lubrication connector

G4

M3mm

lubrication connector

t G4

5.5 mm

maximum permissible screw depth for lubrication connectors

JL6

18.9mm

position lubrication connector
