主要尺寸和性能数据
H |
31mm |
height system |
|
B |
70mm |
width carriage |
|
L |
109.1mm |
overall length carriage 1 |
|
C |

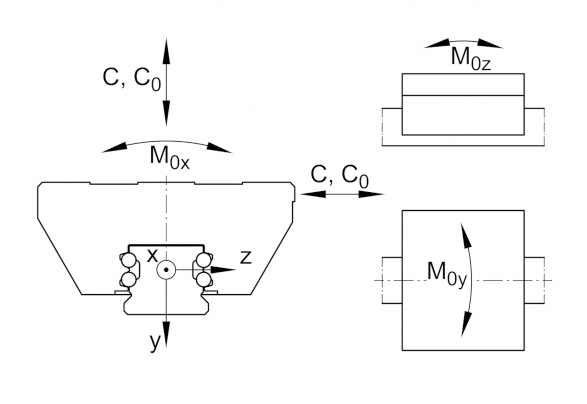

23,400 N |
dynamic load rating 1 |
|
C0 |
54,000N |
static load rating 1 |
|
M0x |
745Nm |
static moment rating about X axis |
|
M0y |
825Nm |
static moment rating about Y axis |
|
M0z |
825Nm |
static moment rating about Z axis |
|
≈m |
0.82kg |
重量 |

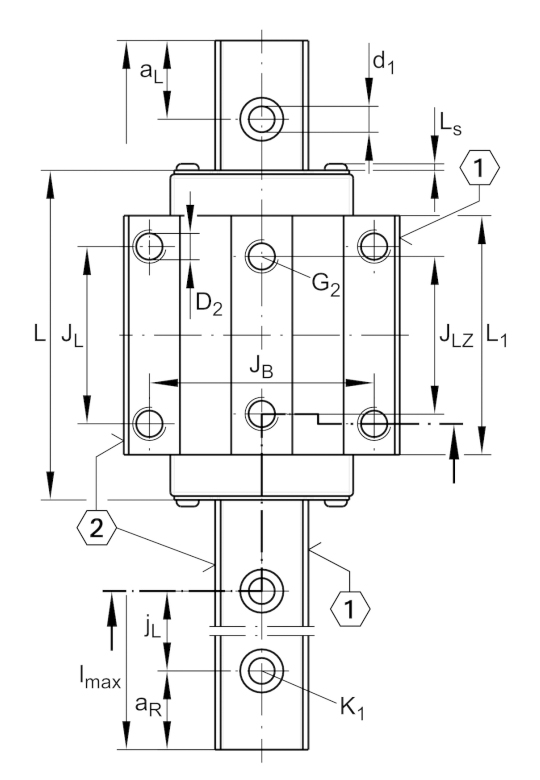

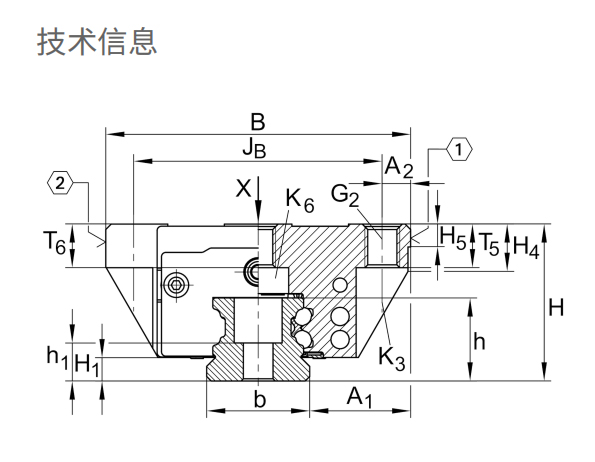

安装尺寸
A1 |
23.5mm |
||
JB |
57mm |
||
b |
23mm |
width rail |
|
A2 |
6.5mm |
||
L1 |
86.5mm |
||
LS |
1.65 mm |
||
JL |
45mm |
||
JLZ |
40 mm |
||
H1 |
5.1mm |
||
H4 |
9.3 mm |
||
H5 |
5.25mm |
||
T5 |
10mm |
||
T6 |
8 mm |
||
G2 |
M8 |
fixing screws below (DIN ISO 4762-12.9) |
|
G2 MA |
24Nm |
maximum tightening torque 2 |
|
K3 |
M6 |
|
|
K3 MA |
17 Nm |
|
|
K6 |
M6 |
|
|
K6 MA |
8 Nm |
maximum tightening torque 2 |
|
D2 |
6.7 mm |
|
|

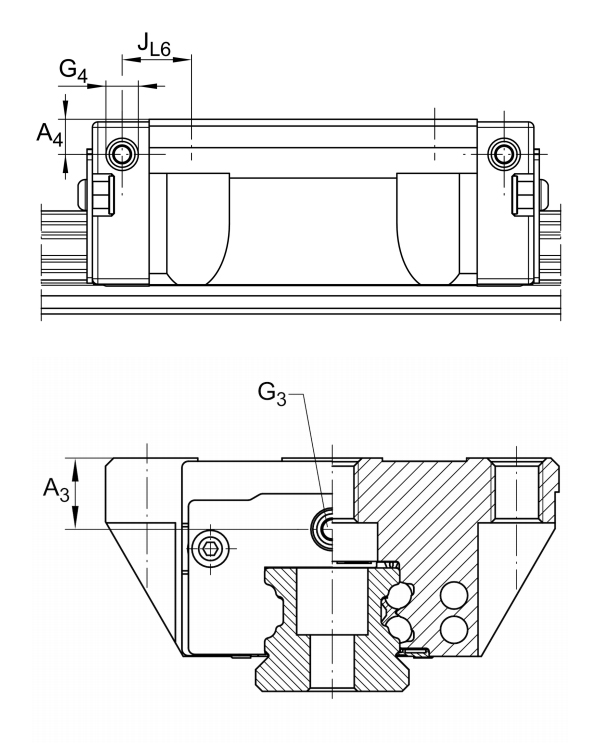

A3 |
6mm |
position lubrication connector |
|
G3 |
M6 |
lubrication connector |
|
tG3 |
7mm |
maximum permissible screw depth for lubrication connectors |
|
A4 |
4mm |
position lubrication connector |
|
G4 |
M3mm |
lubrication connector |
|
t G4 |
6mm |
maximum permissible screw depth for lubrication connectors |
|
JL6 |
24.95mm |
position lubrication connector |
