主要尺寸和性能数据
H |
36mm |
height system |
|
B |
48mm |
width carriage |
|

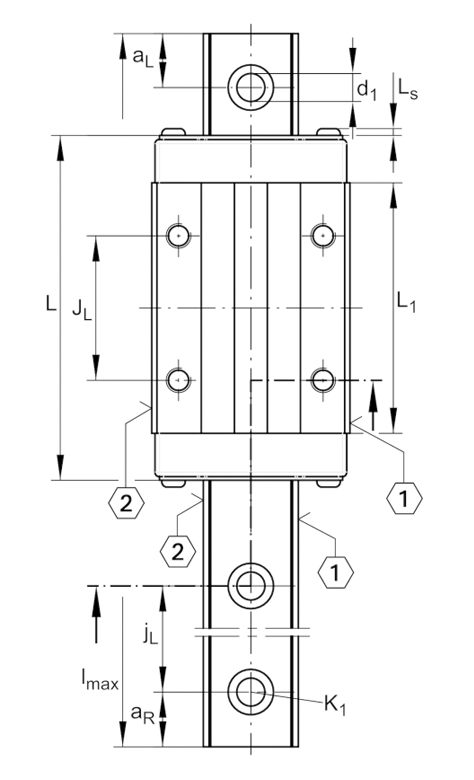

L |
83.3mm |
overall length carriage 1 |
|

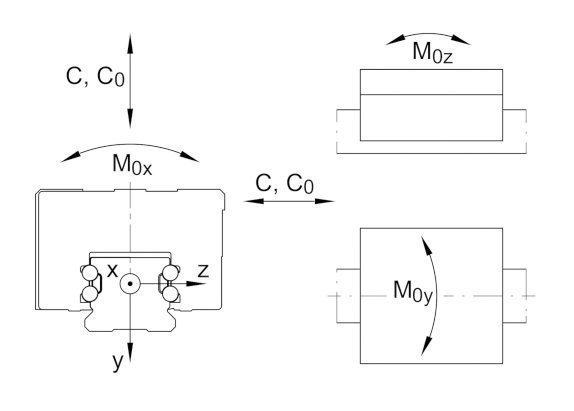

C |
17,900 N |
dynamic load rating 1 |
|
C0 |
37,000N |
static load rating 1 |
|
M0x |
510Nm |
static moment rating about X axis |
|
M0y |
395Nm |
static moment rating about Y axis |
|
M0z |
395Nm |
static moment rating about Z axis |
|
≈m |
0.82kg |
重量 |

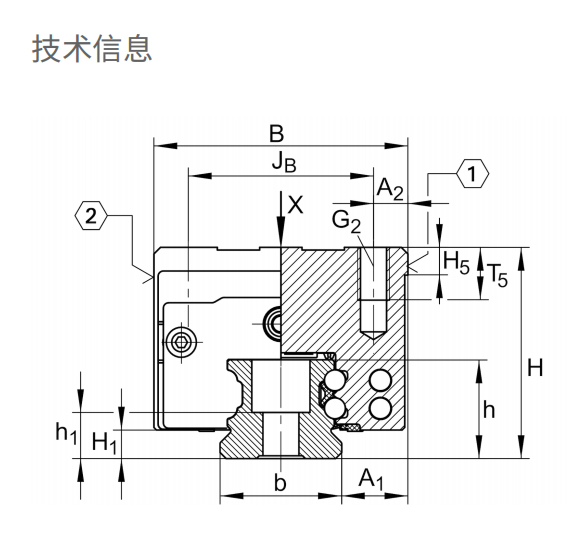

安装尺寸
A1 |
12.5mm |
|
JB |
35mm |
|
b |
23mm |
width rail |
A2 |
6.5mm |
|
L1 |
60.7mm |
|
LS |
1.65 mm |
|
JL |
35mm |
|
H1 |
5.1mm |
|
H5 |
5.25mm |
|
T5 |
10mm |
|
G2 |
M6 |
fixing screws below (DIN ISO 4762-12.9) |
G2 MA |
17Nm |
maximum tightening torque 2 |

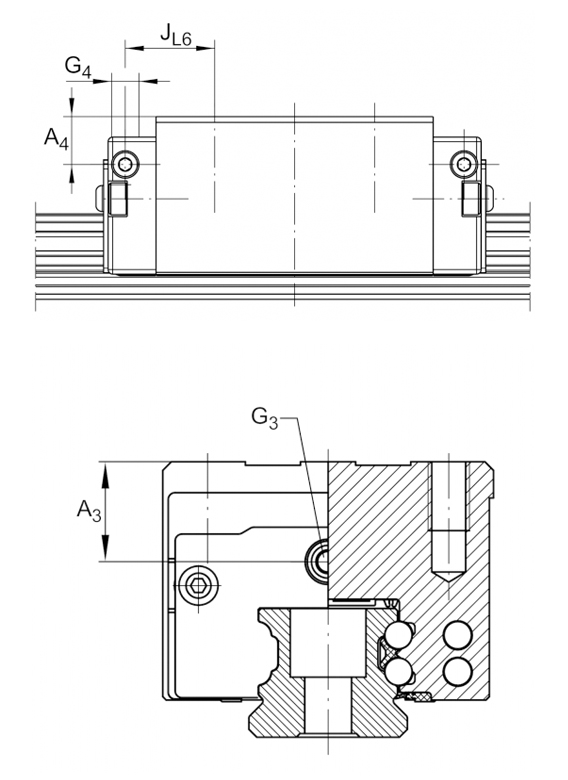

A3 |
11mm |
position lubrication connector |
G3 |
M6 |
lubrication connector |
tG3 |
7mm |
maximum permissible screw depth for lubrication connectors |
A4 |
6.5mm |
position lubrication connector |
G4 |
M6mm |
lubrication connector |
t G4 |
7mm |
maximum permissible screw depth for lubrication connectors |
JL6 |
17.9mm |
position lubrication connector |
