主要尺寸和性能数据
H |
36mm |
height system |
|
B |
48mm |
width carriage |
|
L |
109.1mm |
overall length carriage 1 |
|
C |
23,400 N |
dynamic load rating 1 |
|
C0 |
54,000N |
static load rating 1 |
|
M0x |
745Nm |
static moment rating about X axis |
|
M0y |
825Nm |
static moment rating about Y axis |
|
M0z |
825Nm |
static moment rating about Z axis |
|
≈m |
1kg |
重量 |

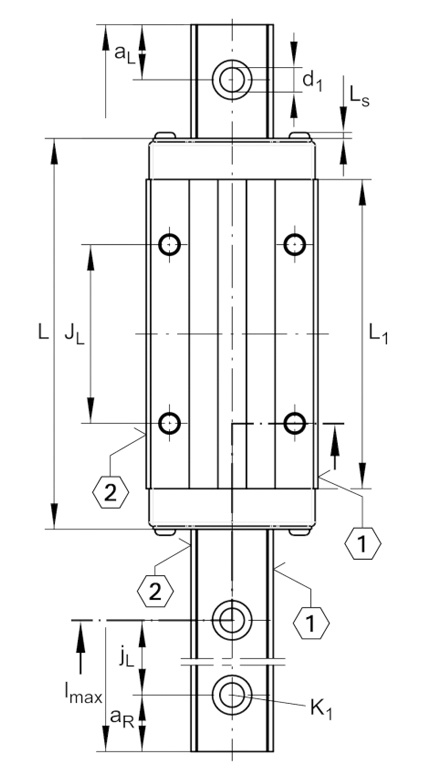

安装尺寸
A1 |
12.5mm |
||
JB |
35mm |
||
b |
23mm |
width rail |
|
A2 |
6.5mm |
||
L1 |
86.5mm |
||
LS |
1.65 mm |
||
JL |
50mm |
||
H1 |
5.1mm |
||
H5 |
5.25mm |
||
T5 |
10mm |
||
G2 |
M6 |
fixing screws below (DIN ISO 4762-12.9) |
|
G2 MA |
17Nm |
maximum tightening torque 2 |
|

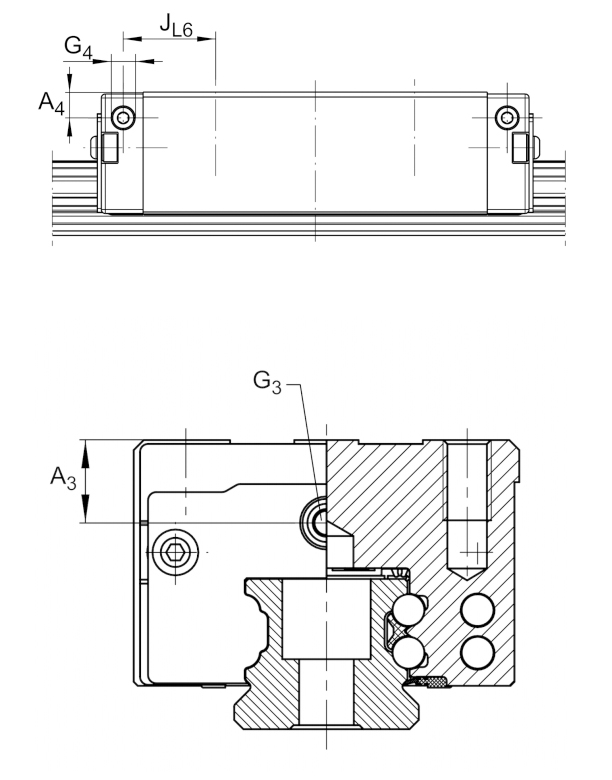

A3 |
11mm |
position lubrication connector |
|
G3 |
M6 |
lubrication connector |
|
tG3 |
7mm |
maximum permissible screw depth for lubrication connectors |
|
A4 |
6.5mm |
position lubrication connector |
|
G4 |
M6mm |
lubrication connector |
|
t G4 |
7mm |
maximum permissible screw depth for lubrication connectors |
|
JL6 |
23.2mm |
position lubrication connector |
