主要尺寸和性能数据
H |
42mm |
height system |
|
B |
90mm |
width carriage |
|
L |
99mm |
overall length carriage 1 |
|

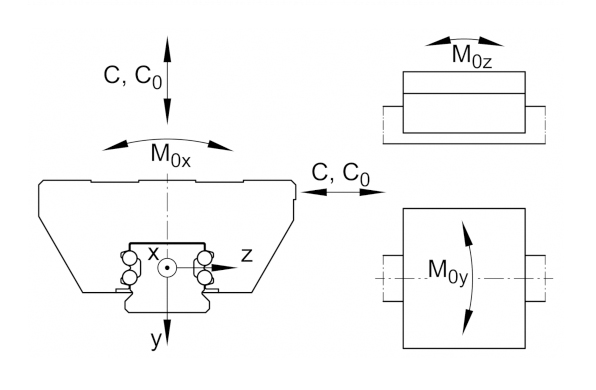

C |
27,500 N |
dynamic load rating 1 |
|
C0 |
55,000N |
static load rating 1 |
|
M0x |
970Nm |
static moment rating about X axis |
|
M0y |
700Nm |
static moment rating about Y axis |
|
M0z |
700Nm |
static moment rating about Z axis |
|
≈m |
1.2kg |
重量 |

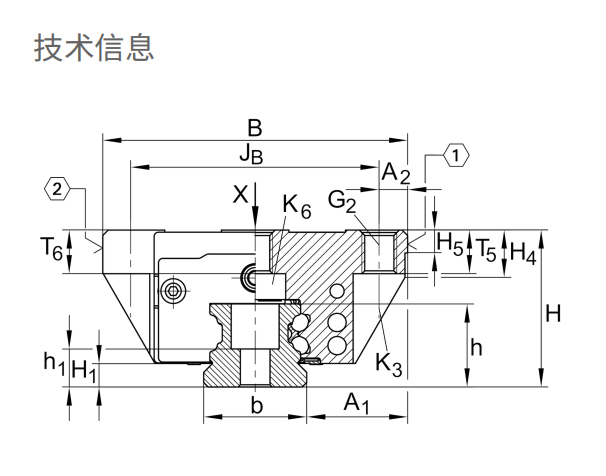

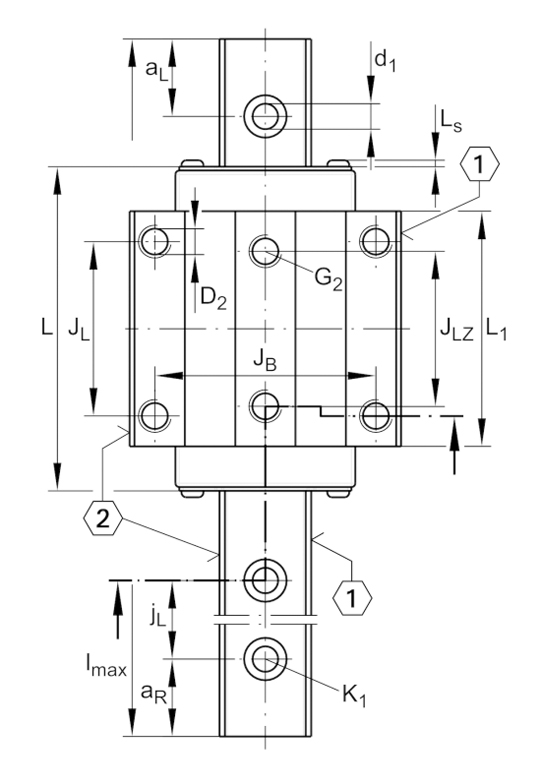

安装尺寸
A1 |
31mm |
||
JB |
72mm |
||
b |
28mm |
width rail |
|
A2 |
9mm |
||
L1 |
72mm |
||
LS |
1.65 mm |
||
JL |
52mm |
||
JLZ |
44 mm |
||
H1 |
5.9mm |
||
H4 |
13.8 mm |
||
H5 |
6.25mm |
||
T5 |
12mm |
||
T6 |
11.5 mm |
||
G2 |
M10 |
fixing screws below (DIN ISO 4762-12.9) |
|
G2 MA |
41Nm |
maximum tightening torque 2 |
|
K3 |
M8 |
fixing screws below (DIN ISO 4762-12.9) |
|
K3 MA |
41 Nm |
maximum tightening torque 2 |
|
K6 |
M8 |
fixing screws below (DIN ISO4762-12.9) |
|
K6 MA |
41 Nm |
maximum tightening torque 3 |
|
D2 |
8.6 mm |
|
|
A3 |
11.5mm |

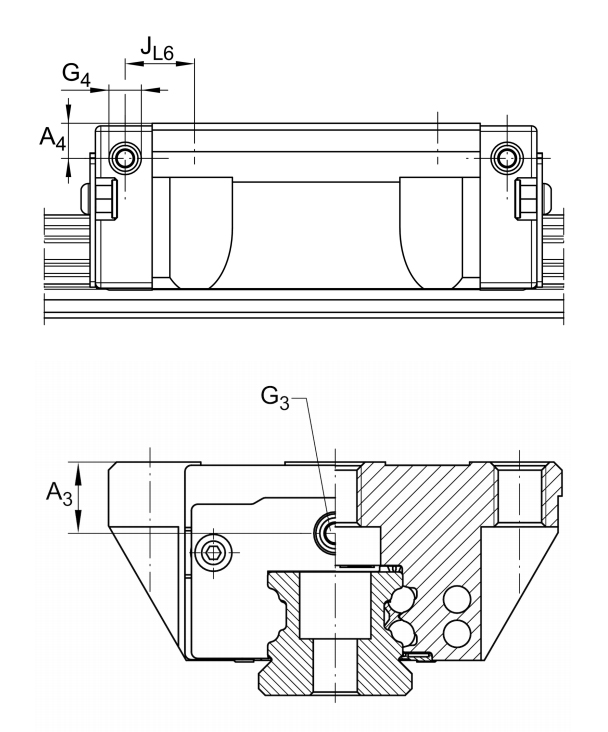

position lubrication connector |
|
G3 |
M6 |
lubrication connector |
|
tG3 |
7mm |
maximum permissible screw depth for lubrication connectors |
|
A4 |
7mm |
position lubrication connector |
|
G4 |
M6mm |
lubrication connector |
|
t G4 |
7mm |
maximum permissible screw depth for lubrication connectors |
|
JL6 |
15.5mm |
position lubrication connector |
