主要尺寸和性能数据
H |
38mm |
height system |
|
B |
90mm |
width carriage |
|
L |
99mm |
overall length carriage 1 |
|

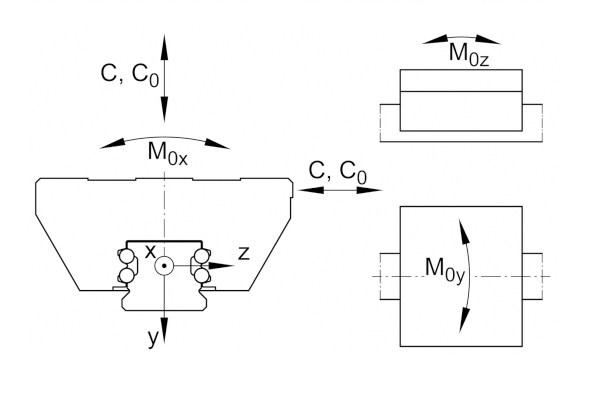

C |
27,500N |
dynamic load rating 1 |
|
C0 |
55,000N |
static load rating 1 |
|
M0x |
970 Nm |
static moment rating about X axis |
|
M0y |
700Nm |
static moment rating about Y axis |
|
M0z |
700Nm |
static moment rating about Z axis |
|
≈m |
1kg |
重量 |

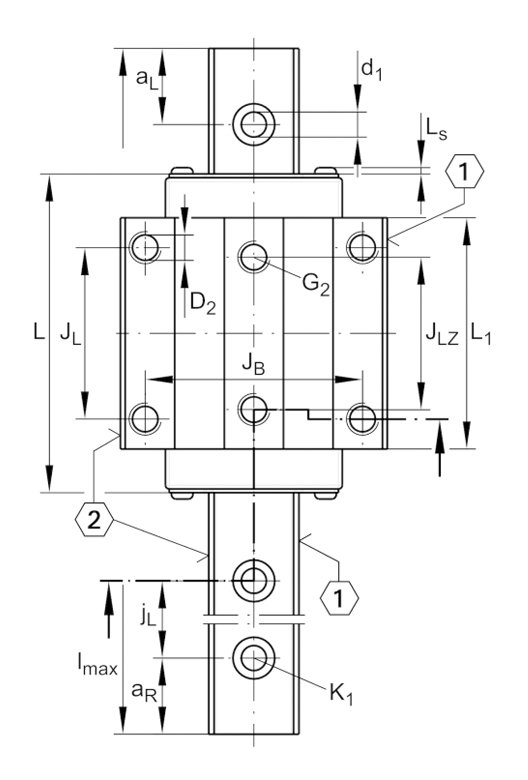

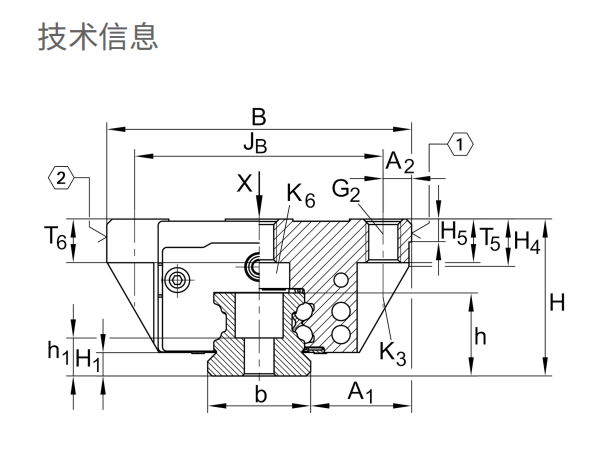

安装尺寸
A1 |
31mm |
|
JB |
72mm |
|
b |
28mm |
width rail |
A2 |
9mm |
|
L1 |
72mm |
|
LS |
1.65 mm |
|
JL |
52mm |
|
JLZ |
44mm |
|
H1 |
5.9mm |
|
H4 |
9.8 mm |
|
H5 |
6.25mm |
|
T5 |
12mm |
|
T6 |
9 mm |
|
G2 |
M10 |
fixing screws below (DIN ISO 4762-12.9) |
G2 MA |
41Nm |
maximum tightening torque 2 |
K3 |
M8 |
fixing screws below (DIN ISO 4762-12.9) |
K3 MA |
41 Nm |
maximum tightening torque 2 |
K6 |
M8 |
fixing screws below (DIN ISO4762-12.9) |
K6 MA |
41 Nm |
maximum tightening torque 3 |
D2 |
8.6 mm |
|

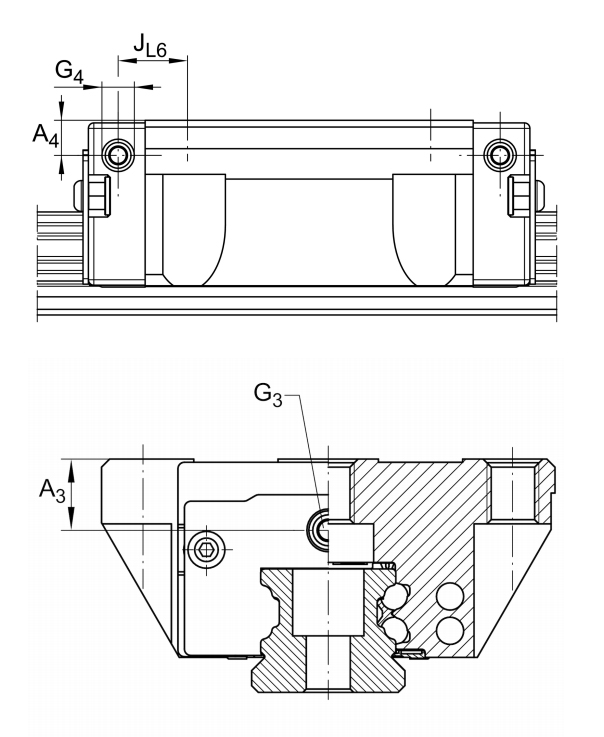

A3 |
7.5mm |
position lubrication connector |
G3 |
M6 |
lubrication connector |
tG3 |
7mm |
maximum permissible screw depth for lubrication connectors |
A4 |
4.95mm |
position lubrication connector |
G4 |
M5mm |
lubrication connector |
t G4 |
7mm |
maximum permissible screw depth for lubrication connectors |
JL6 |
15.1mm |
position lubrication connector |
