主要尺寸和性能数据
H |
42mm |
height system |
|
B |
60mm |
width carriage |
|
L |
99mm |
overall length carriage 1 |
|
C |
27,500N |
dynamic load rating 1 |
|
C0 |
55,000N |
static load rating 1 |
|

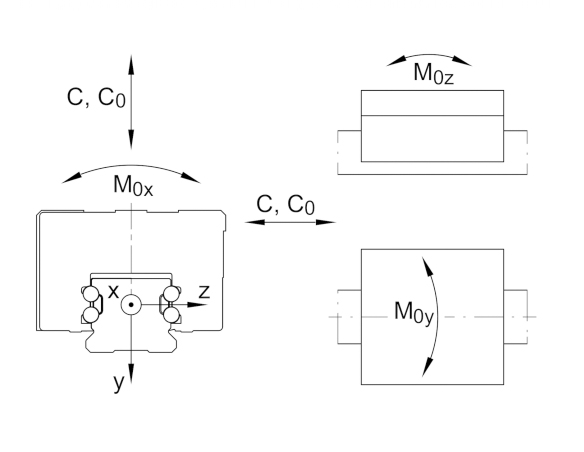

M0x |
970Nm |
static moment rating about X axis |
|
M0y |
700Nm |
static moment rating about Y axis |
|
M0z |
700Nm |
static moment rating about Z axis |
|
≈m |
0.94kg |
重量 |

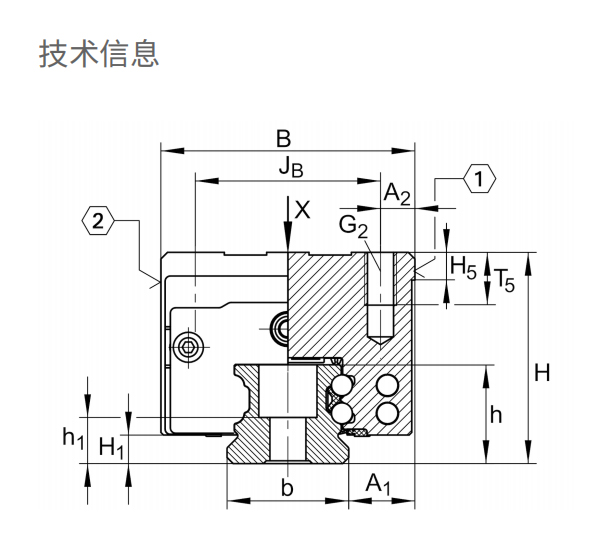

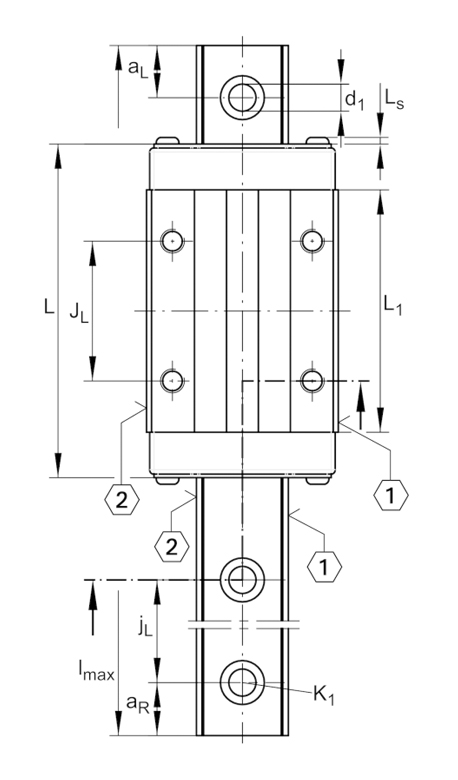

安装尺寸
A1 |
16mm |
|
JB |
40mm |
|
b |
28mm |
width rail |
A2 |
10mm |
|
L1 |
72mm |
|
LS |
1.65 mm |
|
JL |
40mm |
|
H1 |
5.9mm |
|
H5 |
6.25mm |
|
T5 |
13.5mm |
|
G2 |
M8 |
fixing screws below (DIN ISO 4762-12.9) |
G2 MA |
41Nm |
maximum tightening torque 2 |

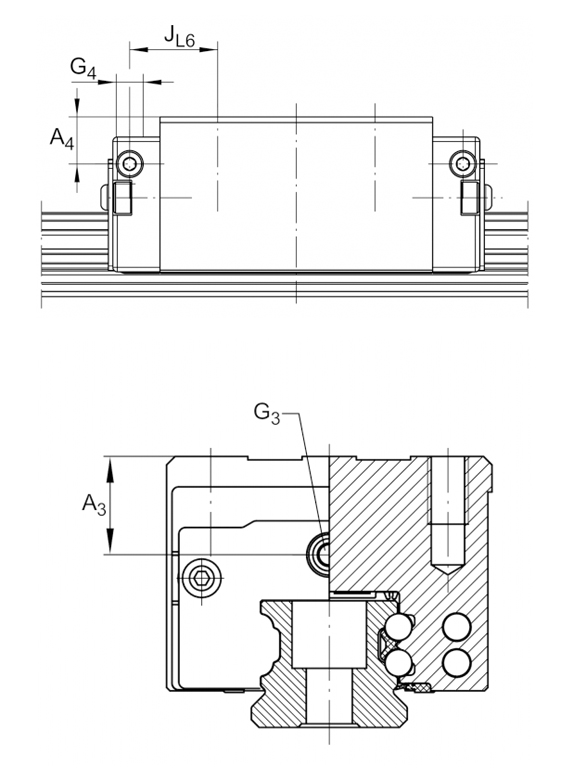

A3 |
11.5mm |
position lubrication connector |
A4 |
7mm |
position lubrication connector |
G4 |
M5mm |
lubrication connector |
t G4 |
7mm |
maximum permissible screw depth for lubrication connectors |
JL6 |
21.5mm |
position lubrication connector |
