主要尺寸和性能数据
H |
55mm |
height system |
|
B |
70mm |
width carriage |
|
L |
145mm |
overall length carriage 1 |
|
C |
47,500N |
dynamic load rating 1 |
|
C0 |
100,000 N |
static load rating 1 |
|
M0x |
2,625 Nm |
static moment rating about X axis |
|
M0y |
1,890 Nm |
static moment rating about Y axis |
|
M0z |
1,890 Nm |
static moment rating about Z axis |
|
≈m |
2.4kg |
重量 |

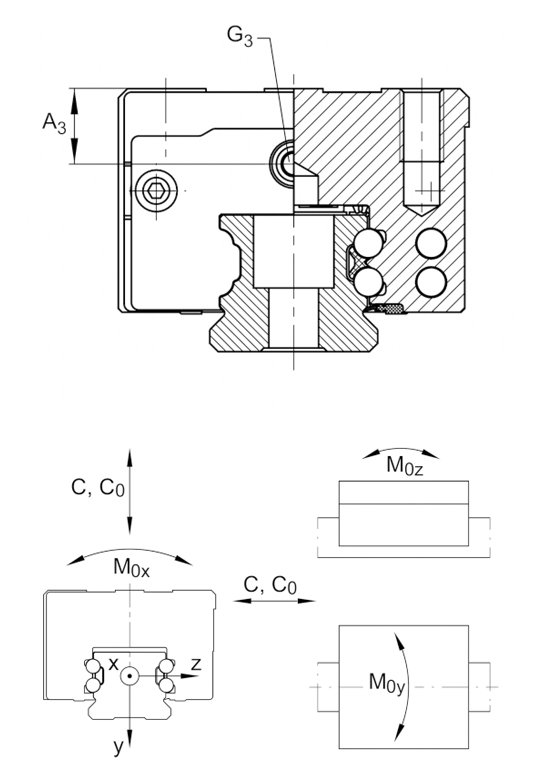

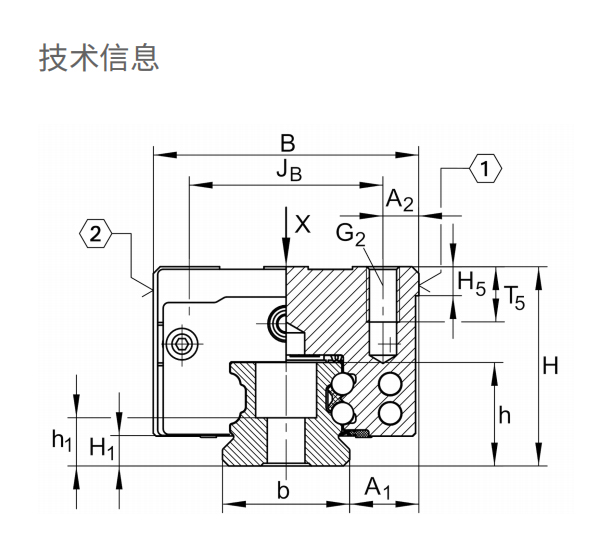

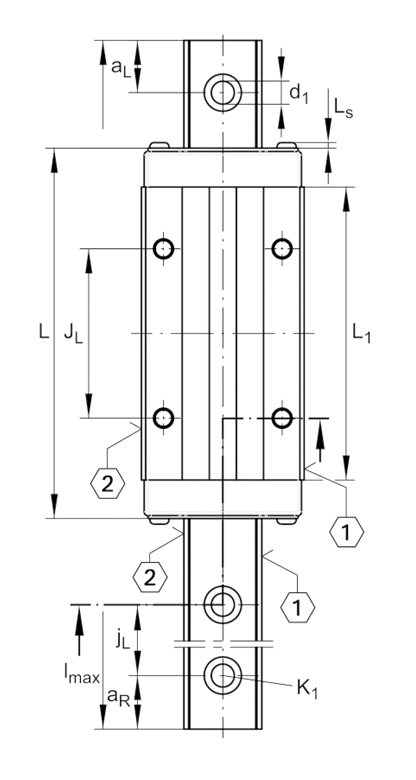

安装尺寸
A1 |
18mm |
||
JB |
50mm |
||
b |
34mm |
width rail |
|
A2 |
10mm |
||
L1 |
113mm |
||
LS |
1.65 mm |
||
JL |
72mm |
||
H1 |
6.7mm |
||
H5 |
6.75mm |
||
T5 |
13.5mm |
||
G2 |
M8 |
fixing screws below (DIN ISO 4762-12.9) |
|
G2 MA |
41Nm |
maximum tightening torque 2 |
|
A3 |
19.3mm |
position lubrication connector |
|
G3 |
M6 |
lubrication connector |
|
t G3 |
7 mm |
maximum permissible screw depth for lubrication |
|
A4 |
18mm |
position lubrication connector |
|
G4 |
M6mm |
lubrication connector |
|
t G4 |
7mm |
maximum permissible screw depth for lubrication connectors |
|
JL6 |
27.5mm |
position lubrication connector |
