KWVE35-B-E

循环球轴承滑块 滑块 KWVE..-B-E, 标准滑块, 四列, 满装, 扩展型

图1.jpg 图2.jpg 图3.jpg 图4.jpg 图5.jpg

主要尺寸和性能数据



H

48mm

height system


B

100mm

width carriage


L

112mm

overall length carriage 1


C

38,000 N

dynamic load rating 1


C0

72,000N

static load rating 1

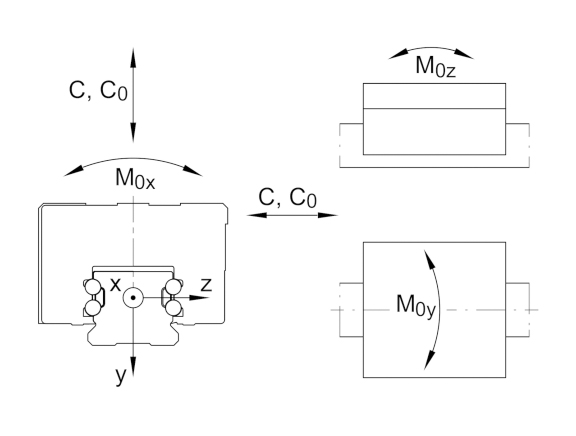

M0x

1,465  Nm

static moment rating about X axis


M0y

1,020 Nm

static moment rating about Y axis


M0z

1,020 Nm

static moment rating about Z axis


≈m

1.75kg

重量

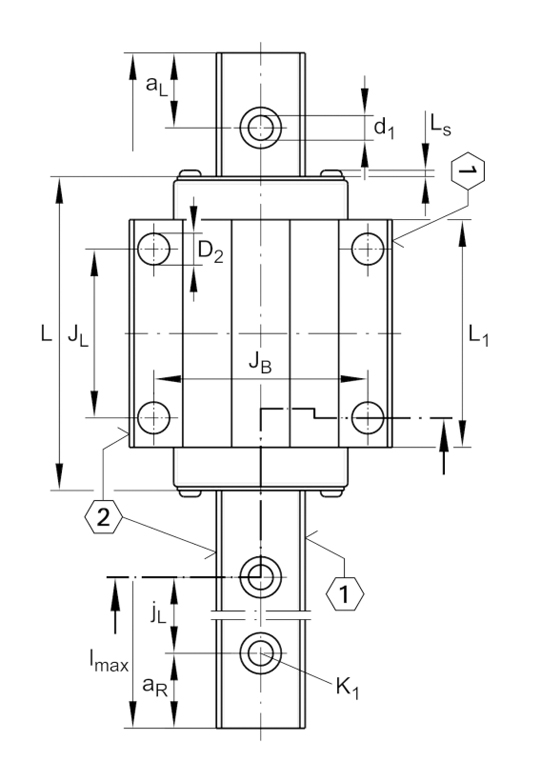

安装尺寸

A1

33mm


JB

82mm


b

34mm

width rail

A2

9mm


L1

80mm


LS

1.65 mm


JL

50mm


H1

6.7mm


H4

14.3mm


H5

6.75mm


T5

13mm


K3

M8

fixing screws below (DIN ISO 4762-12.9)

K3 MA

41 Nm

maximum tightening torque 2

D2

8.6 mm

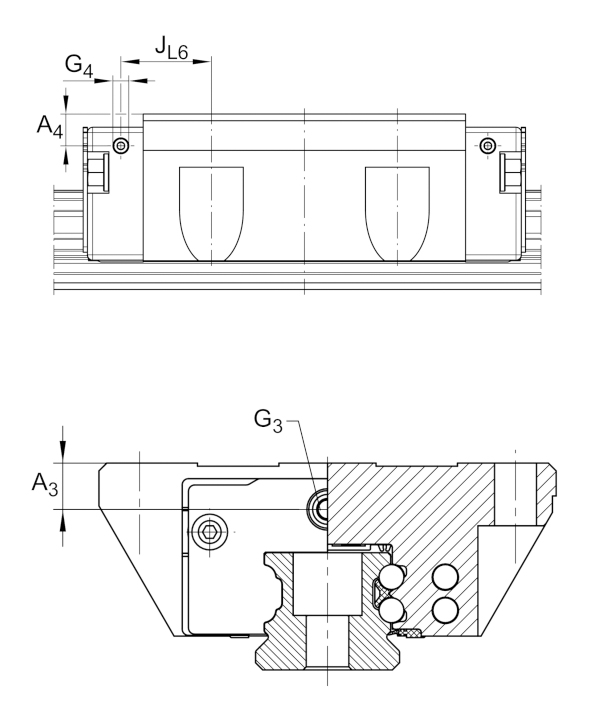

A3

12.3mm

position lubrication connector

G3

M6

lubrication connector

t G3

7mm

maximum permissible screw depth for lubrication

A4

11 mm

position lubrication connector

G4

M6 mm

lubrication connector

t G4

7 mm

maximum permissible screw depth for lubrication connectors

JL6

22 mm

position lubrication connector
