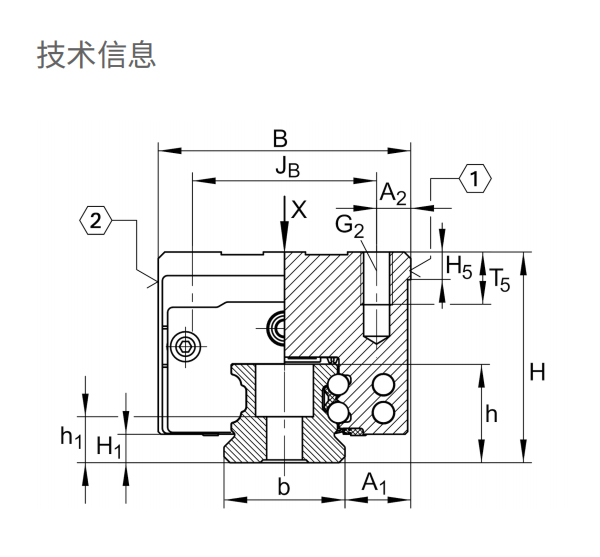

主要尺寸和性能数据
H |
48mm |
height system |
|
B |
70mm |
width carriage |
|
L |
112mm |
overall length carriage 1 |
|
C |
38,000N |
dynamic load rating 1 |
|
C0 |
72,000N |
static load rating 1 |
|
M0x |
1,465Nm |
static moment rating about X axis |
|
M0y |
1,020 Nm |
static moment rating about Y axis |
|
M0z |
1,020 Nm |
static moment rating about Z axis |
|
≈m |
1.3kg |
重量 |

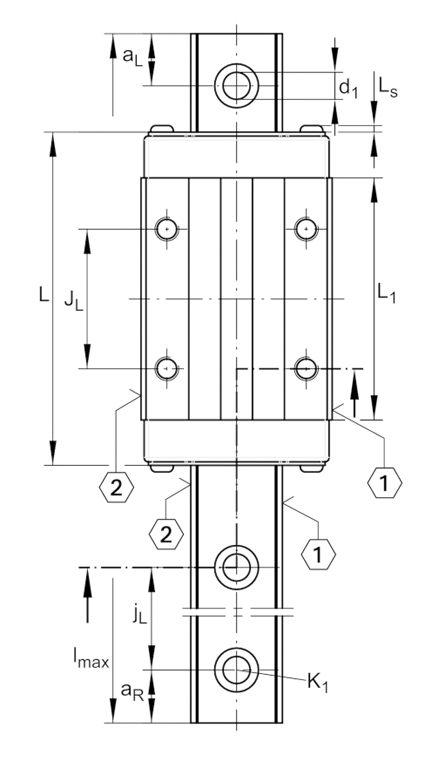

安装尺寸
A1 |
18mm |
|
JB |
50mm |
|
b |
34mm |
width rail |
A2 |
10mm |
|
L1 |
80mm |
|
LS |
1.65 mm |
|
JL |
50mm |
|
H1 |
6.7mm |
|
H5 |
6.75mm |
|
T5 |
13.5mm |
|
G2 |
M8 |
fixing screws above (DIN ISO 4762-12.9) |
G2 MA |
41 Nm |
maximum tightening torque 2 |

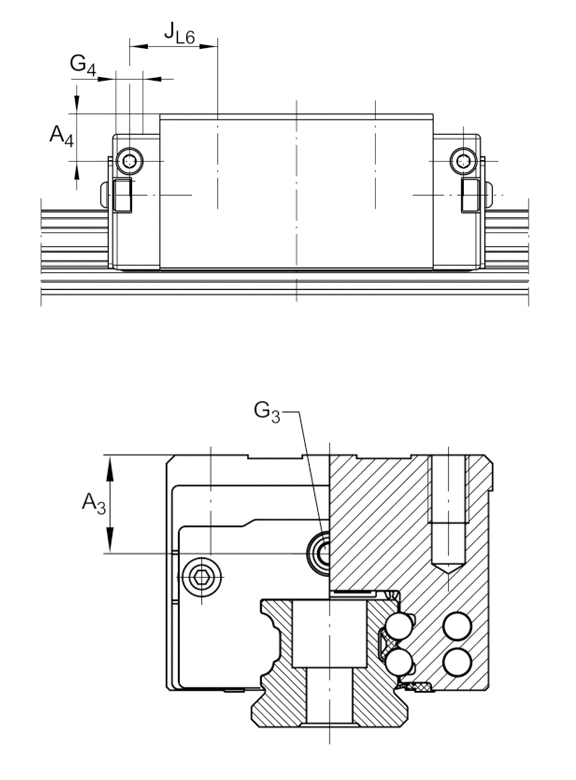

A3 |
12.3mm |
position lubrication connector |
G3 |
M6 |
lubrication connector |
t G3 |
7mm |
maximum permissible screw depth for lubrication |
A4 |
11mm |
position lubrication connector |
G4 |
M6 mm |
lubrication connector |
t G4 |
7 mm |
maximum permissible screw depth for lubrication connectors |
JL6 |
22mm |
position lubrication connector |
