主要尺寸和性能数据
H |
42mm |
height system |
B |
90mm |
width carriage |
L |
91.6mm |
overall length carriage 1 |
I C |
40,000 N |
dynamic load rating 1 |
I C0 |
80,000 N |
static load rating 1 |
II C |
37,800 N |

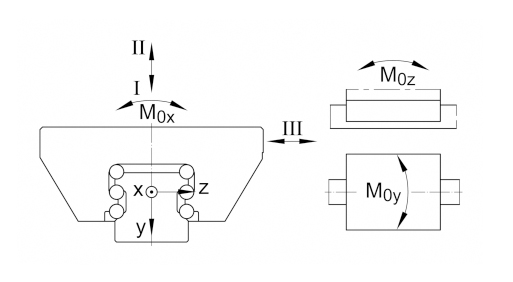

dynamic load rating, load direction II: tensile load |
II C0 |
60,000 N |
static moment rating about X axis |
III C |
40,000 N |
dynamic load rating; basic dynamic load rating, Load direction III: lateral load |
III C0 |
62,000 N |
static moment rating about Z axis |
≈m |
1.2 kg |
重量 |

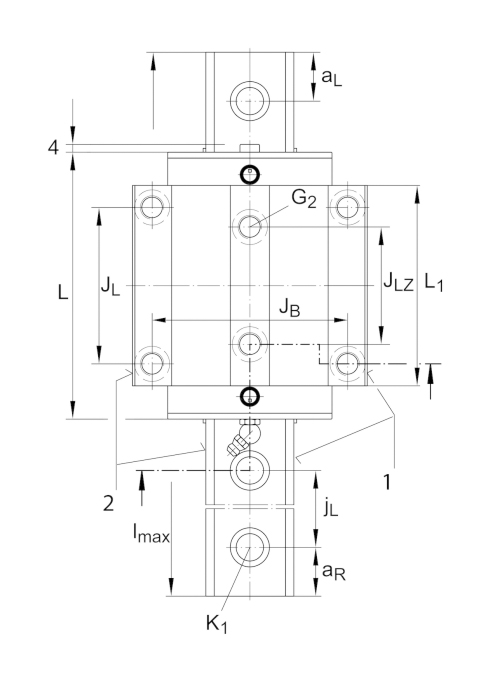

安装尺寸
A1 |
31mm |
|
JB |
72mm |
|
b |
28mm |
width rail |
A2 |
9mm |
|
L1 |
67.6mm |
|
JL |
52mm |
|
JLZ |
44 mm |
|
H1 |
5.4mm |
|
H4 |
13.2 mm |
|
H5 |
6mm |
|
T5 |
12 mm |
|
T6 |
10 mm |
|
G2 |
M10 |
fixing screws above (DIN ISO 4762-12.9) |
G2 MA |
41Nm |
maximum tightening torque 2 |
K3 |
M8 |
fixing screws below (DIN ISO 4762-12.9) |
K3 MA |
41 Nm |
maximum tightening torque |
K6 |
M8 |
fixing screws below (DIN ISO 4762-12.9) |
K6 MA |
24 Nm |
maximum tightening torque |
D2 |
8.6 mm |
|
N2 |
4.5mm |
max. diameter of lubrication hole in adjacent construction |

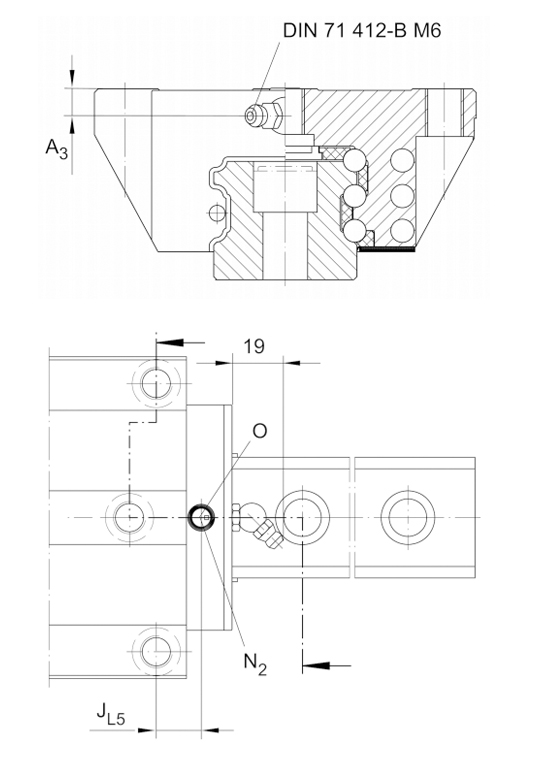

JL5 |
12.8mm |
position lubrication connector |
A3 |
6.5mm |
position lubrication connector |
t A3 |
7 mm |
maximum permissible screw depth for lubrication connectors |
O |
4,5x1,5 mm |
O-Ring DIN 3771 |
M0X |
1,350 Nm |
Moment |
M0Y |
800 Nm |
Moment |
M0Z |
710 Nm |
Moment |
