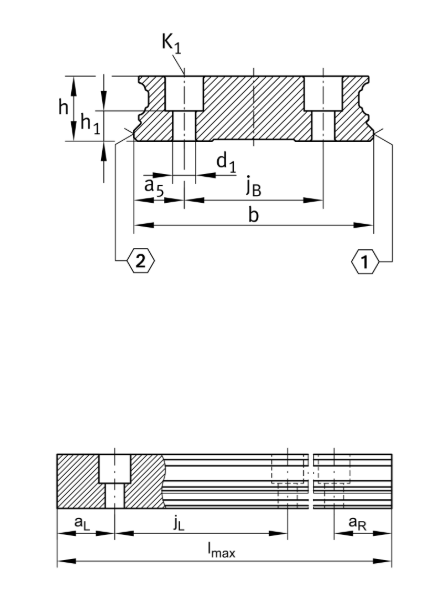

主要尺寸和性能数据
h |
17 mm |
Height |
b |
42 mm |
Width |
Tol b |
-0.005 mm |
Upper tolerance |
Tol b |
-0.035 mm |
Lower tolerance |
≈m |
5 kg/m |
重量 |
安装尺寸
K1 |
M4 |
Thread |
K1 MA |
5 Nm |
Tightening torque 1 |
d1 |
5.8 mm |
Bore diameter |
尺寸
lmax |
2,940 mm |
Max length single piece guideway 2 |
aL max |
53 mm |
Distance 3 |
aL min |
20 mm |
Distance 3 |
aR max |
53 mm |
Distance 3 |
aR min |
20 mm |
Distance 3 |
jL |
60 mm |
Increment |
jB |
24 mm |
Increment |
a5 |
9 mm |
Distance |
h1 |
10 mm |
length |
Tol h1 |
0.5 mm |
Upper tolerance |
Tol h1 |
-0.5 mm |
Lower tolerance |
附加信息
|
KWVE20-W... |
usable carriage(s) |
|
KUVE20-W... |
Usable linear systems |
