主要尺寸和性能数据
h |
23.5 mm |
Height |
|
b |
80 mm |
Width |
|
Tol b |
-0.005 mm |
Upper tolerance |
|
Tol b |
-0.035 mm |
Lower tolerance |
|
≈m |
13.6 kg/m |
重量 |

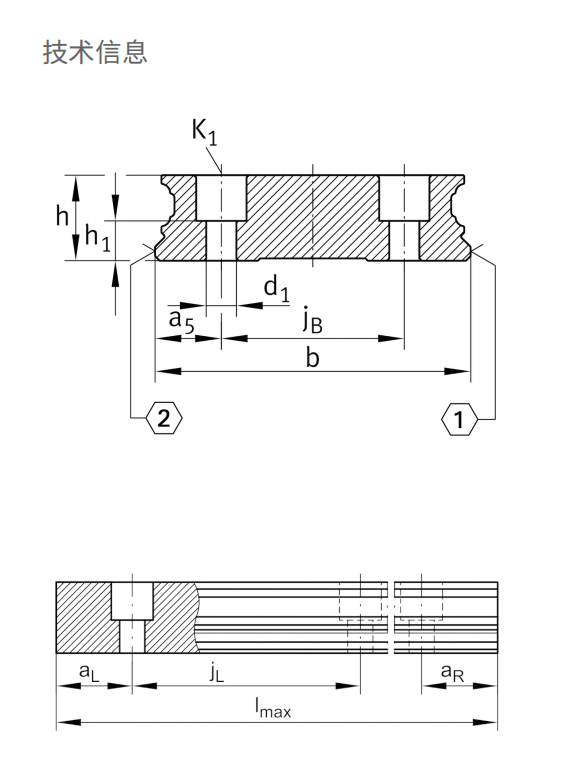

安装尺寸
K1 |
M8 |
Thread |
K1 MA |
41 Nm |
Tightening torque 1 |
d1 |
9 mm |
Bore diameter |
尺寸
lmax |
6,000 mm |
Max length single piece guideway 2 |
aL max |
71 mm |
Distance 3 |
aL min |
20 mm |
Distance 3 |
aR max |
71 mm |
Distance 3 |
aR min |
20 mm |
Distance 3 |
jL |
80 mm |
Increment |
jB |
50 mm |
Increment |
a5 |
15 mm |
Distance |
h1 |
11 mm |
length |
Tol h1 |
0.5 mm |
Upper tolerance |
Tol h1 |
-0.5 mm |
Lower tolerance |
附加信息
|
KWVE30-W... |
usable carriage(s) |
|
KUVE30-W... |
Usable linear systems |
