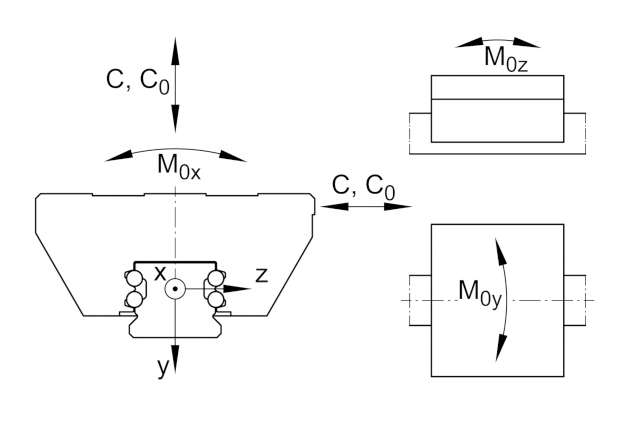

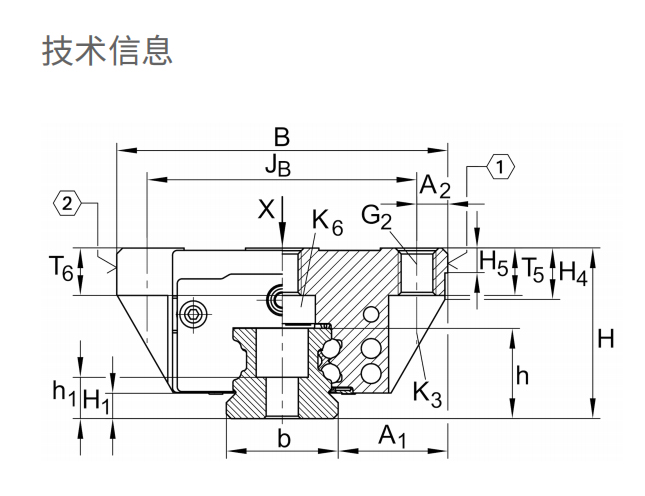

A1 |
16mm |
|
|

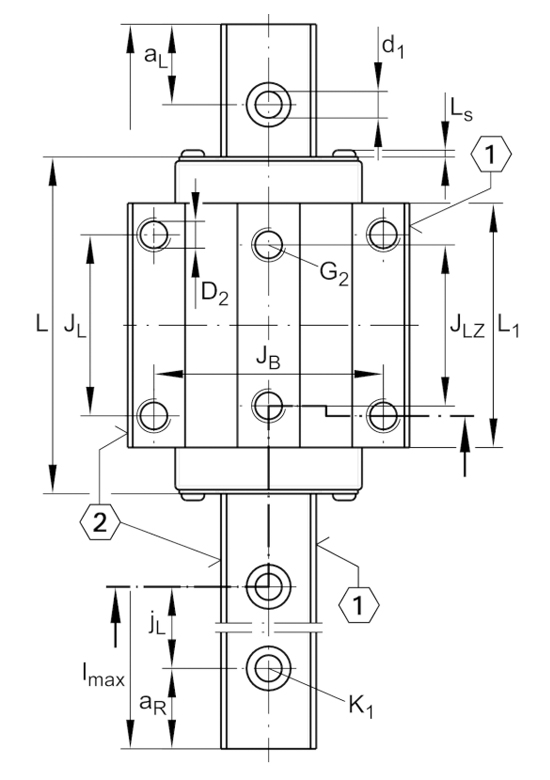

JB |
38mm |
|
|
b |
15 mm |
width rail |
|
A2 |
4.5 mm |
|
|
L1 |
39.8mm |
|
|
LS |
1.3mm |
|
|
JL |
30mm |
|
|
JLZ |
26mm |
|
|
H1 |
4.3mm |
|
|
H4 |
7.6mm |
|
|
H5 |
4.75mm |
|
|
T5 |
7mm |
|
|
G2 |
M12 |
fixing screws above (DIN ISO 4762-12.9) |
|
T6 |
5.8 mm |
|
|
G2 |
M5 |
fixing screws above (DIN ISO 4762-12.9) |
|
G2 MA |
5.8 Nm |
maximum tightening torque 3 |
|
K3 |
M4 |
fixing screws below (DIN ISO 4762-12.9) |
|
K3 MA |
5 Nm |
maximum tightening torque 2 |
|
K6 |
M4 |
fixing screws below (DIN 7984-8.8) |
|
K6 MA |
2 Nm |
maximum tightening torque 2 |
|
D2 |
4.5 mm |
|
|
N3 |
M6 |
lubrication connector |
|

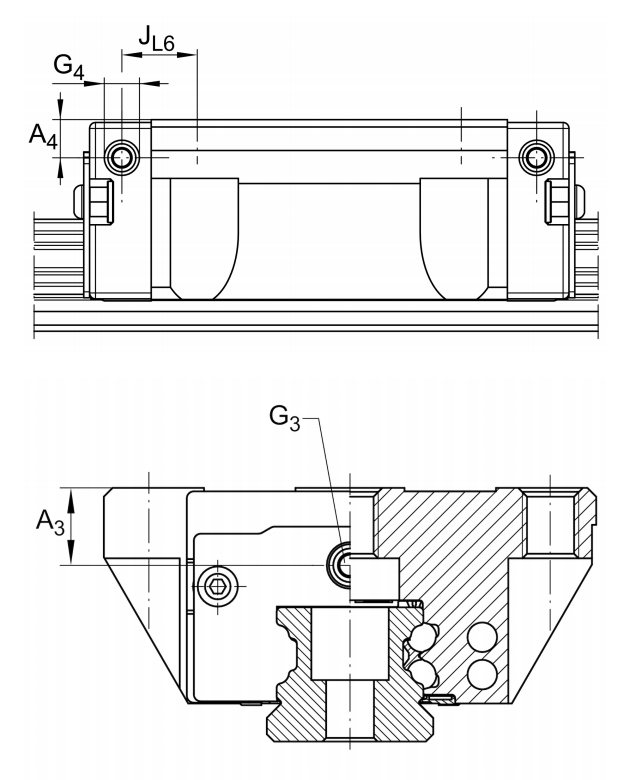

A3 |
4.3 mm |
position lubrication connector |
|
G3 |
M3 |
lubrication connector |
|
t G3 |
65.5mm |
maximum permissible screw depth for lubrication connectors |
|
A4 |
3.2 mm |
position lubrication connector |
|
G4 |
M3 mm |
lubrication connector |
|
t G4 |
5.5mm |
maximum permissible screw depth for lubrication connectors |
|
JL6 |
9.1mm |
position lubrication connector |
|
