主要尺寸和性能数据
H |
21 mm |
height system |
||
B |
68mm |
width carriage |
||
L |
55.6 mm |
overall length carriage 1 |
||
C |
7,200 N |
dynamic load rating 1 |
||
C0 |
14,500 N |
static load rating 1 |
||
M0x |
332Nm |
static moment rating about X axis |
||
M0y |
100 Nm |
static moment rating about Y axis |
||
M0z |
100Nm |
static moment rating about Z axis |
||
≈m |
0.27kg |
重量 |

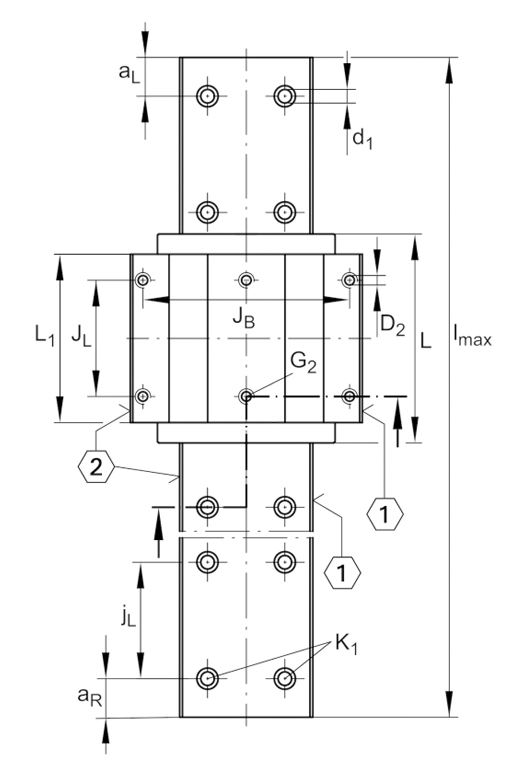

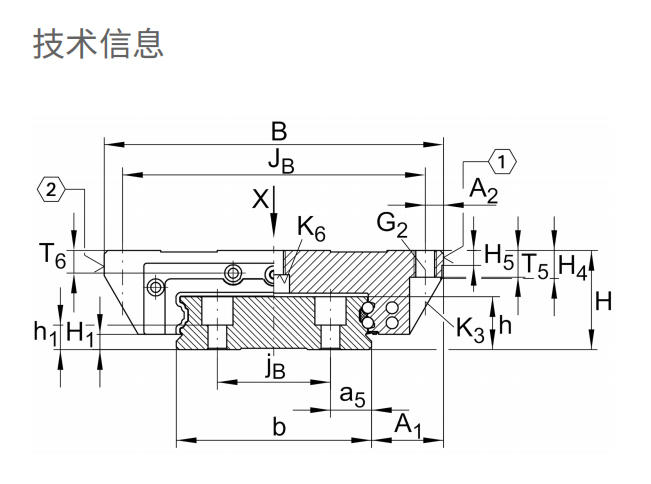

安装尺寸
A1 |
15.5 mm |
|
JB |
60mm |
|
b |
37mm |
width rail |
A2 |
4 mm |
|
L1 |
39.8 mm |
|
JL |
29mm |
|
H1 |
2.1 mm |
|
H4 |
7.7 mm |
|
H5 |
4.5 mm |
|
T5 |
7mm |
|
T6 |
4.8 mm |
|
G2 |
M5 |
fixing screws above (DIN ISO 4762-12.9) |
G2 MA |
5.8Nm |
maximum tightening torque 3 |
K3 |
M4 |
fixing screws below (DIN ISO 4762-12.9) |
K3 MA |
5 Nm |
maximum tightening torque 2 |
K6 |
M4 |
fixing screws below (DIN 7984-8.8) |
K6 MA |
2 Nm |
maximum tightening torque 2 |
D2 |
4.5 mm |
|
A3 |
3.6mm |
position lubrication connector |
G3 |
M3 |
lubrication connector |
tG3 |
64mm |
maximum permissible screw depth for lubrication connectors |
