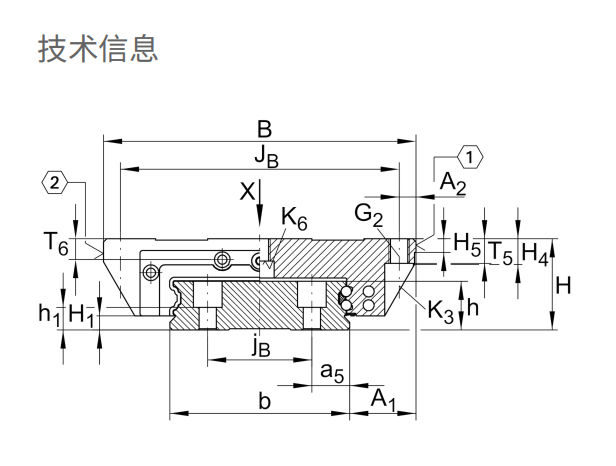

主要尺寸和性能数据
H |
27 mm |
height system |
|
B |
80 mm |
width carriage |
|
L |
69.8 mm |
overall length carriage 1 |
|
C |
13,100 N |
dynamic load rating 1 |
|
C0 |
27,000 N |
static load rating 1 |
|
M0x |
687 Nm |
static moment rating about X axis |
|
M0y |
240 Nm |
static moment rating about Y axis |
|
M0z |
240 Nm |
static moment rating about Z axis |
|
≈m |
0.5 kg |
重量 |

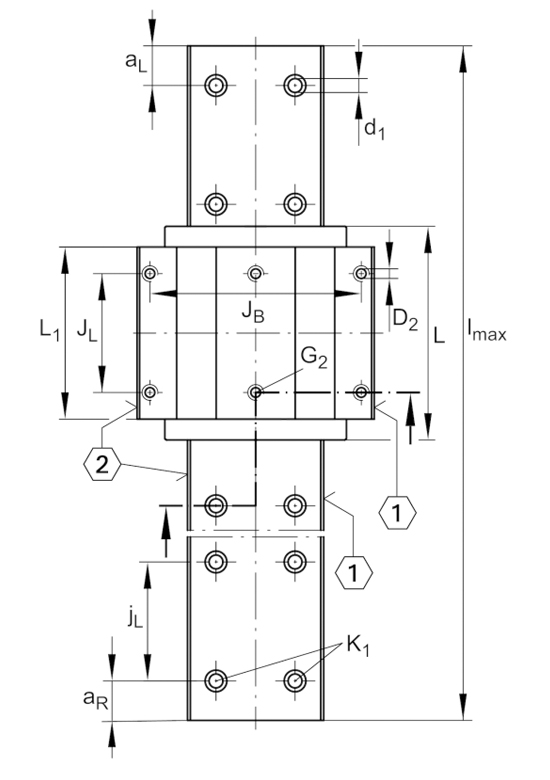

安装尺寸
A1 |
19 mm |
|
JB |
70 mm |
|
b |
42 mm |
width rail |
A2 |
5 mm |
|
L1 |
50.4 mm |
|
JL |
40 mm |
|
H1 |
4.6 mm |
|
H4 |
10.6 mm |
|
H5 |
5 mm |
|
T5 |
10 mm |
|
T6 |
6 mm |
|
G2 |
M6 |
fixing screws above (DIN ISO 4762-12.9) |
G2 MA |
10 Nm |
maximum tightening torque 2 |
K3 |
M5 |
fixing screws below (DIN ISO 4762-12.9) |
K3 MA |
10 Nm |
maximum tightening torque 2 |
K6 |
M6 |
fixing screws below (DIN ISO4762-12.9) |
K6 MA |
17 Nm |
maximum tightening torque 3 |
D2 |
5.5 mm |
|
A3 |
5 mm |

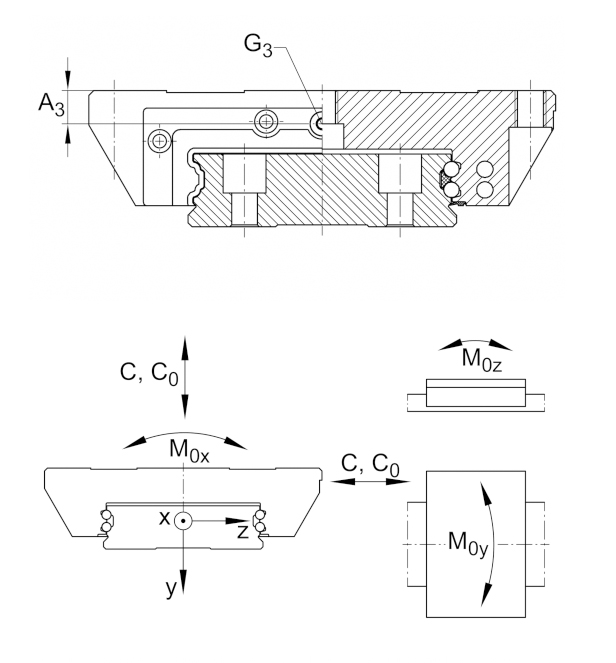

position lubrication connector |
G3 |
M6 |
lubrication connector |
t G3 |
5 mm |
maximum permissible screw depth for lubrication connectors |
