主要尺寸和性能数据
H |
28mm |
height system |
|
B |
59mm |
width carriage |
|
L |
50.4mm |
overall length carriage 1 |
|
C |
8,900 N |
dynamic load rating 1 |
|
C0 |
15,400N |
static load rating 1 |
|

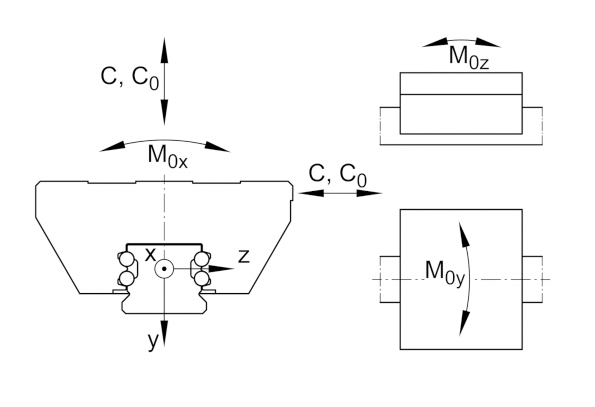

M0x |
190Nm |
static moment rating about X axis |
|
M0y |
85Nm |
static moment rating about Y axis |
|
M0z |
85Nm |
static moment rating about Z axis |
|
≈m |
0.23kg |
重量 |
安装尺寸
A1 |
19.5mm |
|
JB |
49mm |
|
b |
20mm |

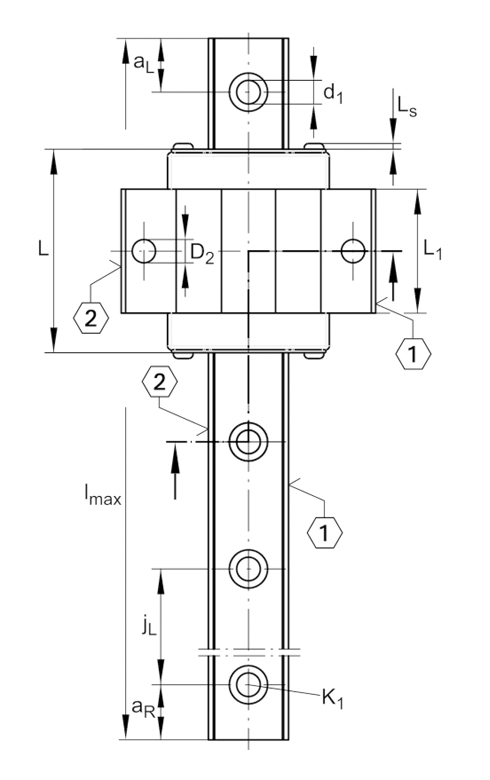

width rail |
A2 |
5mm |
|
L1 |
29.4mm |
|
LS |
1.65 mm |
|
H1 |
4.5mm |
|
H4 |
11.2mm |
|
H5 |
5.25mm |
|
T5 |
9mm |
|
K3 |
M5 |
fixing screws below (DIN ISO 4762-12.9) |
K3 MA |
10 Nm |
maximum tightening torque 2 |
D2 |
5.5mm |
|

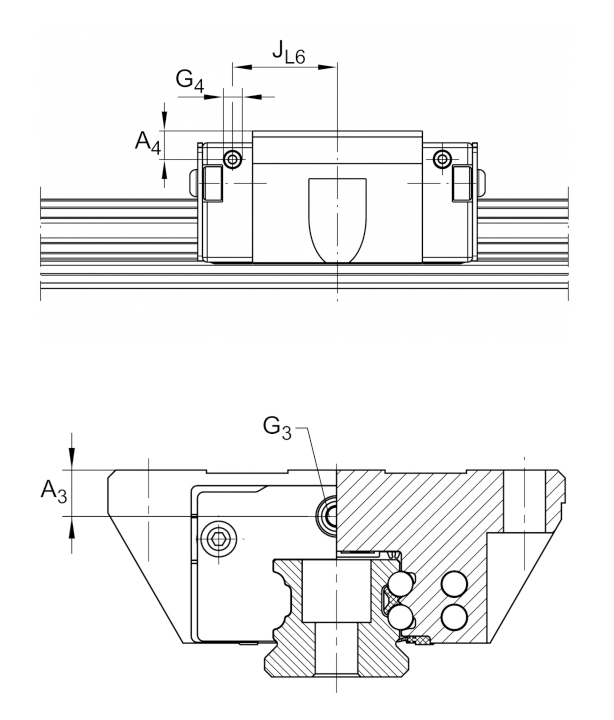

A3 |
6mm |
position lubrication connector |
G3 |
M5 |
lubrication connector |
tG3 |
7mm |
maximum permissible screw depth for lubrication connectors |
A4 |
4.3 mm |
position lubrication connector |
G4 |
M3mm |
lubrication connector |
t G4 |
5.5 mm |
maximum permissible screw depth for lubrication connectors |
JL6 |
18.9mm |
position lubrication connector |
