KWVE30-B-SL

循环球轴承滑块 滑块 KWVE..-B-SL, 窄长型滑块, 四列

图1.jpg 图2.jpg 图3.jpg 图4.jpg 图5.jpg

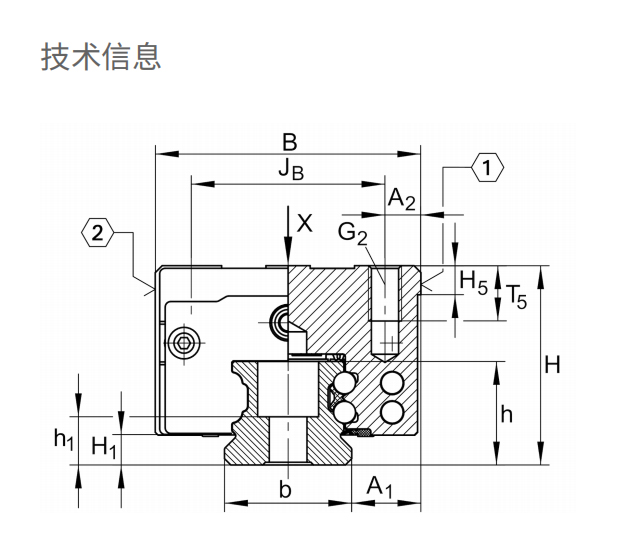

主要尺寸和性能数据



H

42mm

height system


B

60mm

width carriage


L

127mm

overall length carriage 1


C

34,500 N

dynamic load rating 1


C0

74,000 N

static load rating 1


M0x

1,310 Nm

static moment rating about X axis


M0y

1,240Nm

static moment rating about Y axis


M0z

1,240Nm

static moment rating about Z axis


≈m

1.7kg

重量

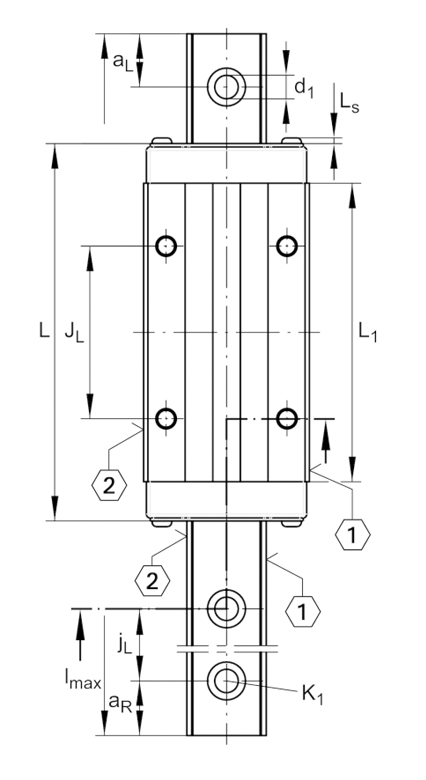

安装尺寸

A1

16mm


JB

40mm


b

28mm

width rail

A2

10mm


L1

100mm


LS

1.65 mm


JL

60mm


H1

5.9mm


H5

6.25mm


T5

13.5mm


G2

M8

fixing screws below (DIN ISO 4762-12.9)

G2 MA

41Nm

maximum tightening torque 2

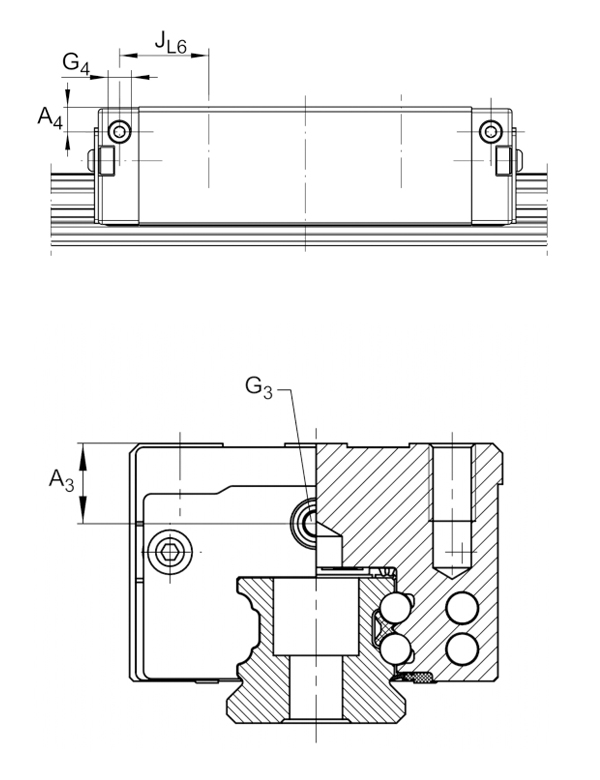

A3

11.5mm

position lubrication connector

A4

7mm

position lubrication connector

G4

M5mm

lubrication connector

t G4

7mm

maximum permissible screw depth for lubrication connectors

JL6

25.5mm

position lubrication connector
