主要尺寸和性能数据
H |
50mm |
height system |
|
B |
162mm |
width carriage |
|
L |
140.2mm |
overall length carriage 1 |
|
C |
47,500 N |
dynamic load rating 1 |
|
C0 |
100,000 N |
static load rating 1 |
|

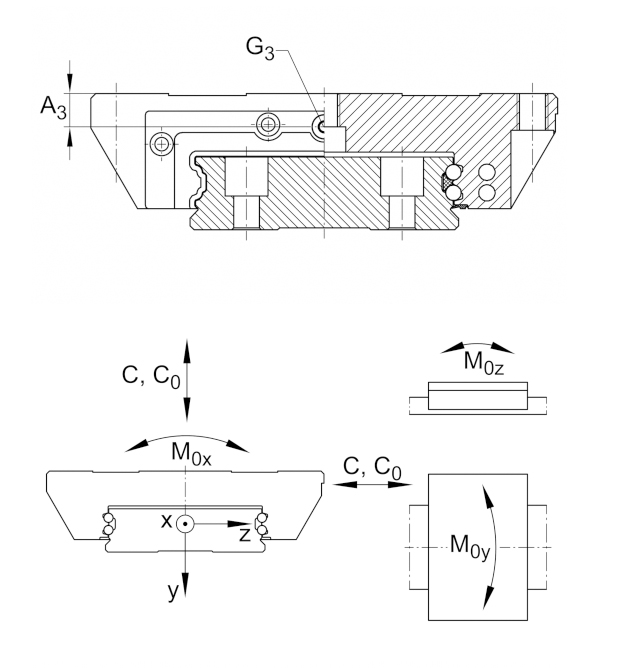

M0x |
5,550 Nm |
static moment rating about X axis |
|
M0y |
1,890 Nm |
static moment rating about Y axis |
|
M0z |
1,890 Nm |
static moment rating about Z axis |
|
≈m |
4.11kg |
重量 |

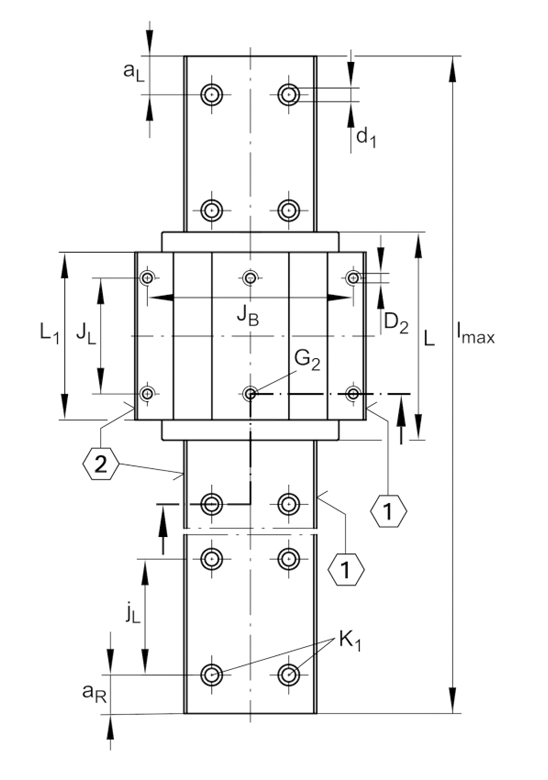

安装尺寸
A1 |
36mm |
|
JB |
144mm |
|
b |
90mm |
width rail |
A2 |
9mm |
|
L1 |
109.8mm |
|
JL |
80mm |
|
H1 |
6.8mm |
|
H4 |
16.3 mm |
|
H5 |
6.5mm |
|
T5 |
13mm |
|
T6 |
13 mm |
|
G2 |
M10 |
fixing screws below (DIN ISO 4762-12.9) |
G2 MA |
41Nm |
maximum tightening torque 2 |
K3 |
M8 |
fixing screws below (DIN ISO 4762-12.9) |
K3 MA |
41 Nm |
maximum tightening torque 2 |
K6 |
M8 |
fixing screws below (DIN ISO4762-12.9) |
K6 MA |
41 Nm |
maximum tightening torque 3 |
D2 |
8.6 mm |
|
A3 |
14.3mm |
position lubrication connector |
G3 |
M6 |
lubrication connector |
t G3 |
6 mm |
maximum permissible screw depth for lubrication |
